Allen-Bradley 1794-VHSC FLEX I/O 2-Channel Very High-Speed Counter
- Brand
- Allen-Bradley
- Model
- 1794VHSC
- GEARWELL SKU
- GWP-000003092
- Category
- PLCs & I/O
Key specifications
- Product type
- FLEX I/O two-channel very high-speed counter module
- Input terminal voltage
- 5 V DC or 15…24 V DC, depending on terminal-base connections.
- Compatible terminal bases
- 1794-TB3G or 1794-TB3GS.
- External supply
- 24 V DC nominal; 19.2…31.2 V DC, including 5% AC ripple.
- Output arrangement
- 4 outputs in 2 isolated groups of 2.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

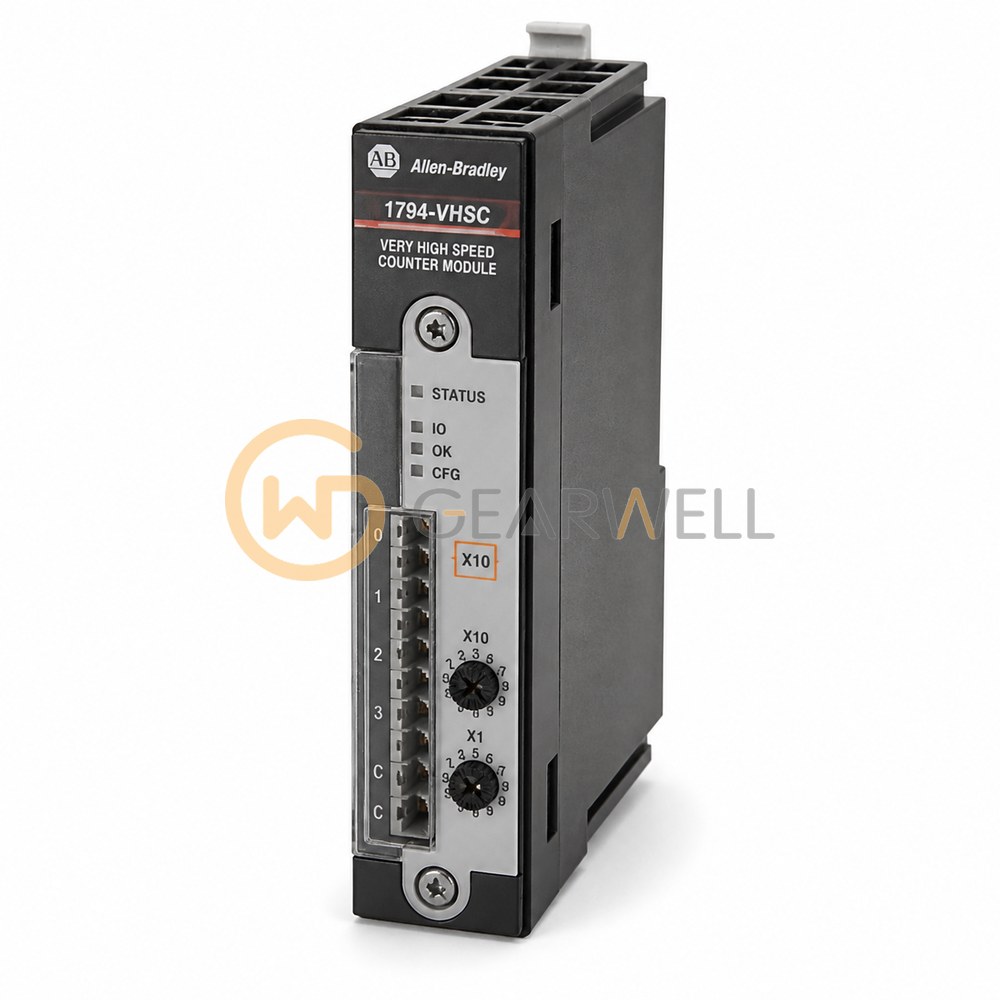

The Allen-Bradley 1794-VHSC is a FLEX I/O very high-speed counter module with 2 incremental quadrature encoder interfaces, each with A, B and Z inputs for 5V DC or 15…24V DC, and 2 outputs. It works with the 1794-ACN15, 1794-ACNR15, 1794-AENT and 1794-AENTR adapters, draws 100 mA at 24V DC and is rated for 0…55 °C (32…131 °F). FLEX I/O modules plug into a terminal base unit that carries the field wiring, so a module can be removed and inserted under power without disturbing field wiring; one FLEX I/O adapter communicates with up to eight I/O modules.
Technical reference
| Product name | Allen-Bradley 1794-VHSC FLEX I/O 2-Channel Very High-Speed Counter |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794VHSC |
| Category | PLCs & I/O |
| Product type | FLEX I/O two-channel very high-speed counter module |
| Input terminal voltage | 5 V DC or 15…24 V DC, depending on terminal-base connections. |
| Compatible terminal bases | 1794-TB3G or 1794-TB3GS. |
| External supply | 24 V DC nominal; 19.2…31.2 V DC, including 5% AC ripple. |
| Output arrangement | 4 outputs in 2 isolated groups of 2. |
| Maximum input frequency, no filters | 1 MHz in counter/encoder X1 mode; 500 kHz in X2 mode; 250 kHz in X4 mode. |
| Manufacturer lifecycle status | Active Mature |
| Product description | Two counter channels with four outputs arranged in two isolated pairs. |
| Operating temperature | 0…55 °C (32…131 °F) |
