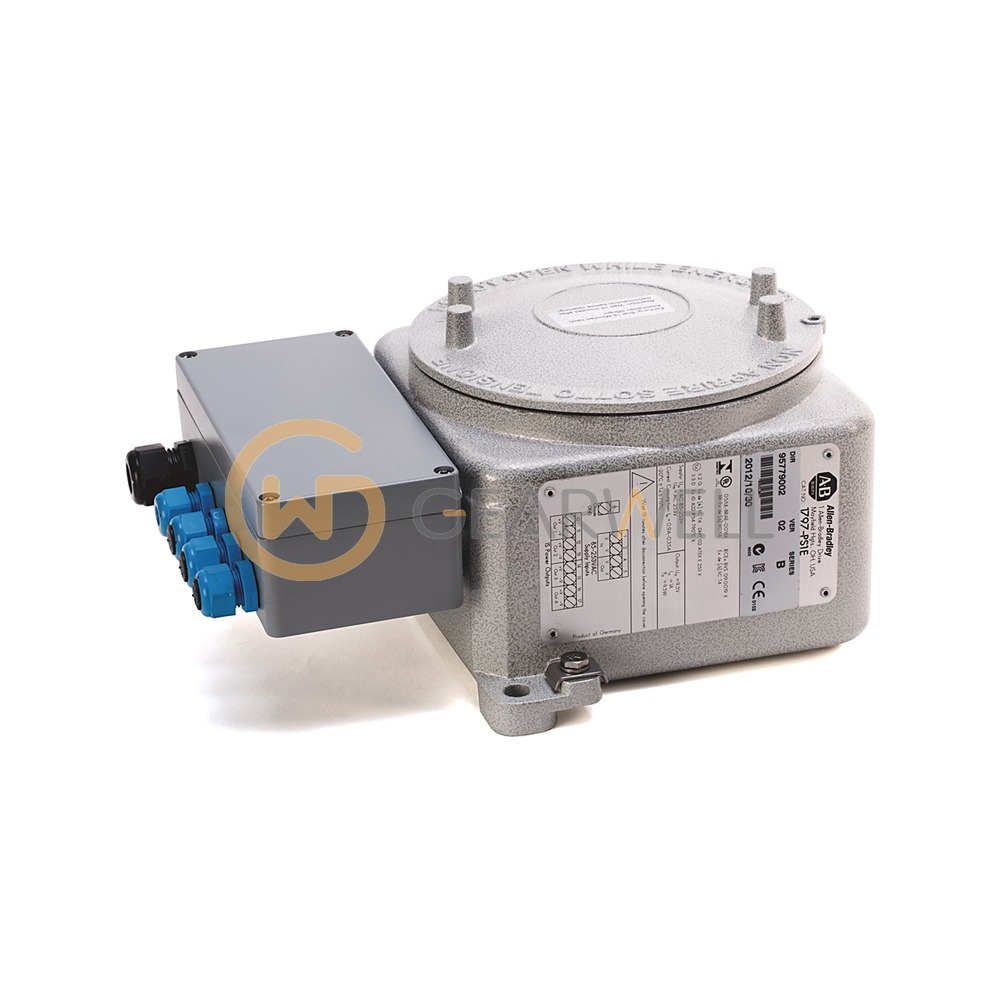

Allen-Bradley 1797-PS1E FLEX Ex Power Supply
- Brand
- Allen-Bradley
- Model
- 1797-PS1E
- GEARWELL SKU
- GWP-000014713
- Category
- Power Supplies
Key specifications
- Description
- FlexEx Power Supply
- Catalog number
- 1797-PS1E
- Lifecycle status (Rockwell Automation)
- Discontinued
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1797-PS1E is the FLEX Ex power supply with an 85…253V AC input (47…63 Hz, 0.9 A) and four DC outputs of 8.5 W each (UO <9.5V, IO <1 A), galvanically isolated from the input but not from each other. Input power is 55 W and power dissipation 21 W. It is rated IP 65/NEMA 7B, measures about 140 x 174 x 280 mm (HxWxD) and weighs about 7.7 kg. The installation instructions used here cover Series B.
Technical reference
| Product name | Allen-Bradley 1797-PS1E FLEX Ex Power Supply |
|---|---|
| Brand | Allen-Bradley |
| Model | 1797-PS1E |
| Category | Power Supplies |
| Description | FlexEx Power Supply |
| Catalog number | 1797-PS1E |
| Lifecycle status (Rockwell Automation) | Discontinued |
