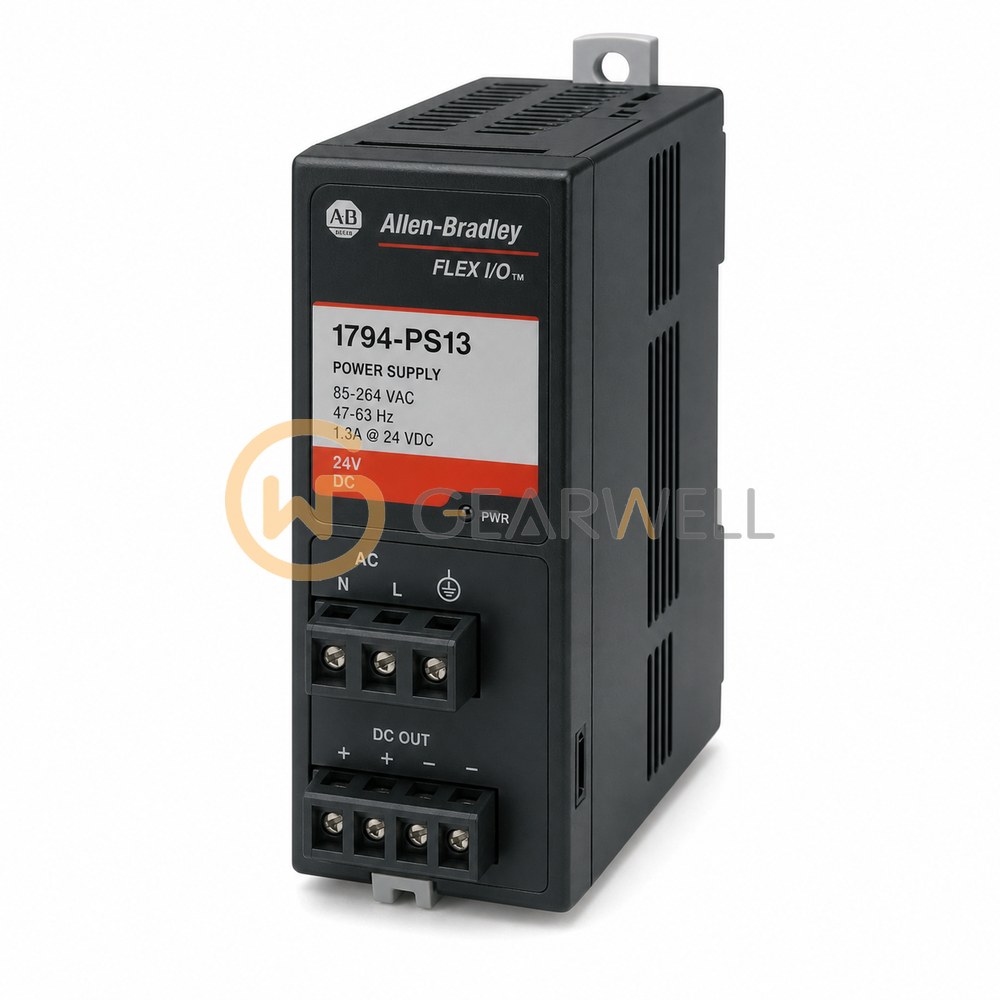

Allen-Bradley 1794-PS13 FLEX I/O 24 V DC Power Supply
- Brand
- Allen-Bradley
- Model
- 1794PS13
- GEARWELL SKU
- GWP-000002741
- Category
- PLCs & I/O
Key specifications
- Approximate dimensions (H × W × D)
- 87 × 69 × 69 mm
- Minimum output load
- 0 mA
- Output power
- 31.2 W
- Product type
- FLEX I/O AC/DC power supply module
- Output current
- 1.3 A max
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-PS13 is a FLEX I/O power supply that converts 120V/220V AC to 24V DC for FLEX I/O adapters, with an output current of up to 1.3 A and enough surge current for four adapters.
Technical reference
| Product name | Allen-Bradley 1794-PS13 FLEX I/O 24 V DC Power Supply |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794PS13 |
| Category | PLCs & I/O |
| Approximate dimensions (H × W × D) | 87 × 69 × 69 mm |
| Minimum output load | 0 mA |
| Output power | 31.2 W |
| Product type | FLEX I/O AC/DC power supply module |
| Output current | 1.3 A max |
| Output voltage | +24 V DC nominal; 20.4…27.6 V DC |
| Supply voltage | 120/230 V AC, 50/60 Hz |
| Input frequency range | 47…63 Hz |
| Maximum input current | 0.7 A |
| Operating temperature | 0…55 °C |
| Input voltage range | 85…265 V AC |
