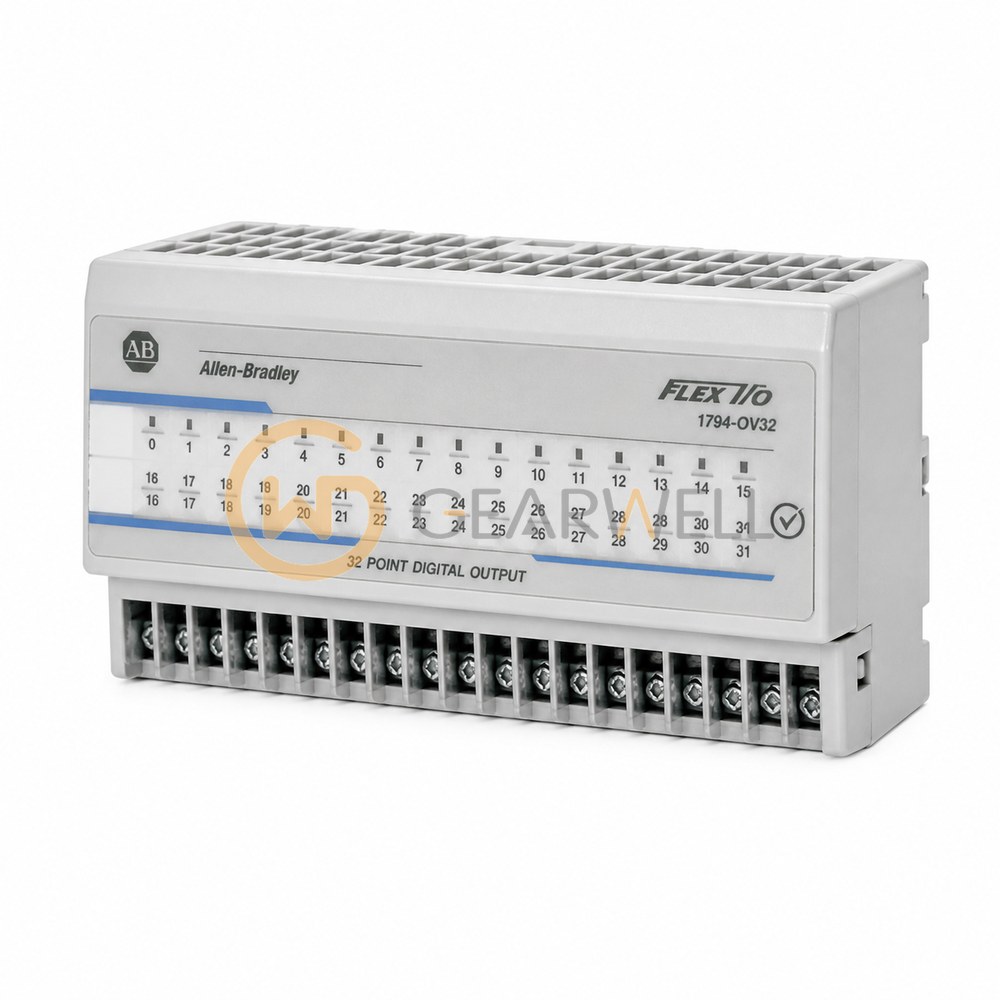

Allen-Bradley 1794-OV32 FLEX I/O 32-Point DC Sinking Output Module
- Brand
- Allen-Bradley
- Model
- 1794OV32
- GEARWELL SKU
- GWP-000003798
- Category
- PLCs & I/O
Key specifications
- Output channels
- 32 current-sinking outputs
- Nominal supply voltage
- 24 V DC nominal
- Product type
- FLEX I/O 32-point DC sinking output module
- FlexBus current
- 110 mA at 5 V DC
- Manufacturer lifecycle status
- Active Mature
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-OV32 is a FLEX I/O digital output module with 32 nonisolated sinking 24V DC outputs in groups. It mounts on a 1794-TB32 or 1794-TB32S terminal base. FLEX I/O modules plug into a terminal base unit that carries the field wiring, so a module can be removed and inserted under power without disturbing field wiring; one FLEX I/O adapter communicates with up to eight I/O modules.
Technical reference
| Product name | Allen-Bradley 1794-OV32 FLEX I/O 32-Point DC Sinking Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794OV32 |
| Category | PLCs & I/O |
| Output channels | 32 current-sinking outputs |
| Nominal supply voltage | 24 V DC nominal |
| Product type | FLEX I/O 32-point DC sinking output module |
| FlexBus current | 110 mA at 5 V DC |
| Manufacturer lifecycle status | Active Mature |
| Operating temperature | 0…55 °C |
| Output signal delay | Off to on: 0.5 ms; on to off: 1.0 ms. |
| Product description | FLEX I/O module with 32 current-sinking 24 V DC outputs and a 14 A module maximum with separate bank limits. |
| Output voltage | 10…31.2 V DC; 24 V DC nominal |
| Output current limits | Maximum 0.5 A per output; 14 A per module, limited to 6 A total for channels 0–15 and 8 A total for channels 16–31. |
