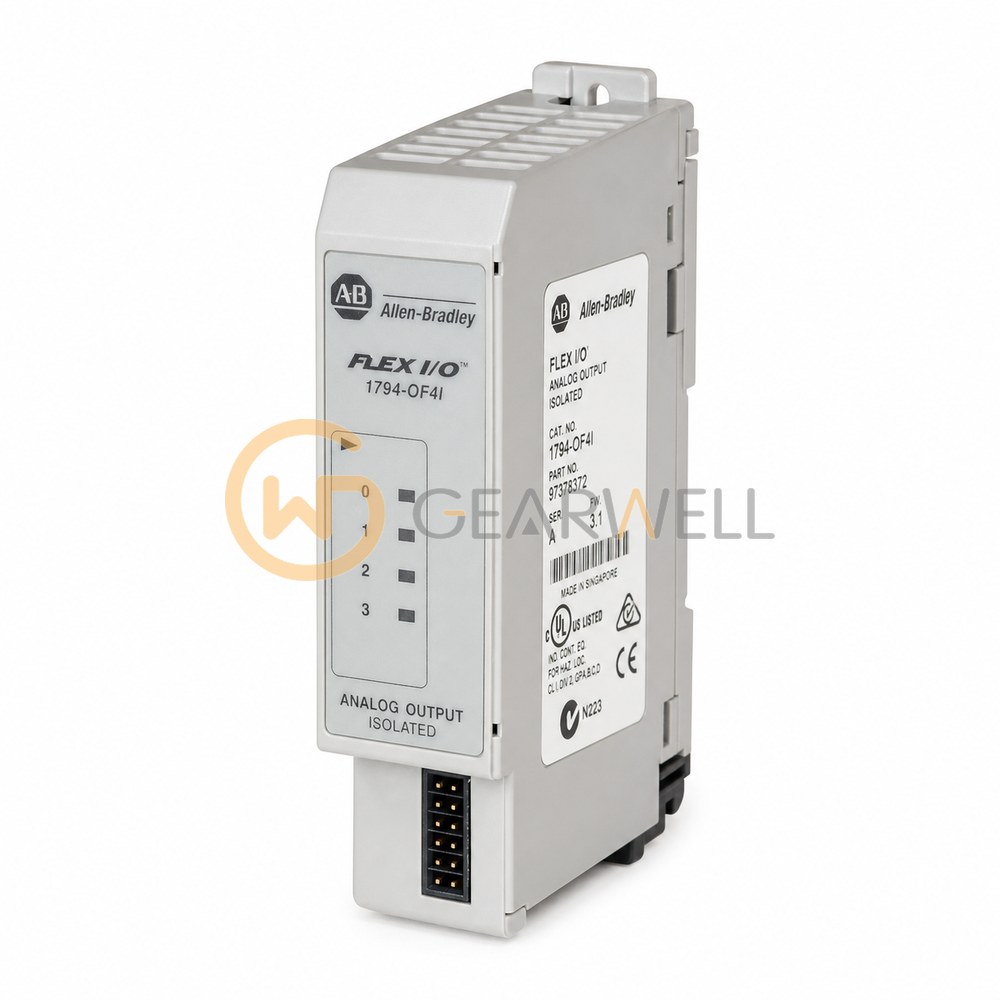

Allen-Bradley 1794-OF4I FLEX I/O 4-Channel Isolated Analog Output Module
- Brand
- Allen-Bradley
- Model
- 1794OF4I
- GEARWELL SKU
- GWP-000004369
- Category
- PLCs & I/O
Key specifications
- Output channels
- 4 isolated outputs.
- Nominal supply voltage
- 24 V DC
- Product type
- FLEX I/O four-channel isolated analog output module
- Configurable output ranges
- Current: 0…20 mA or 4…20 mA. Voltage: 0…5 V, 0…10 V, ±5 V or ±10 V.
- All-channel update interval
- 2.5 ms or 5.0 ms, depending on the selected output range and data format.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-OF4I is a FLEX I/O isolated analog output module with 4 isolated outputs for 4…20 mA, 0…20 mA, ±10V, 0…10V, ±5V or 0…5V, with 15-bit + sign resolution, for 2-wire, 3-wire and 4-wire devices. It draws 210 mA at 24V DC. FLEX I/O modules plug into a terminal base unit that carries the field wiring, so a module can be removed and inserted under power without disturbing field wiring; one FLEX I/O adapter communicates with up to eight I/O modules.
Technical reference
| Product name | Allen-Bradley 1794-OF4I FLEX I/O 4-Channel Isolated Analog Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794OF4I |
| Category | PLCs & I/O |
| Output channels | 4 isolated outputs. |
| Nominal supply voltage | 24 V DC |
| Product type | FLEX I/O four-channel isolated analog output module |
| Configurable output ranges | Current: 0…20 mA or 4…20 mA. Voltage: 0…5 V, 0…10 V, ±5 V or ±10 V. |
| All-channel update interval | 2.5 ms or 5.0 ms, depending on the selected output range and data format. |
| Step response to 63% of full scale | <25 µs. |
| Compatible terminal bases | 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3T, 1794-TB3TS or 1794-TBN. |
| External supply | 24 V DC nominal; 19.2…31.2 V DC, including 5% AC ripple. |
| Manufacturer lifecycle status | Active Mature |
| Temperature Rating | -20…55 °C (-4…131 °F) |
| Product description | Four isolated analog outputs with 15-bit-plus-sign resolution. |
