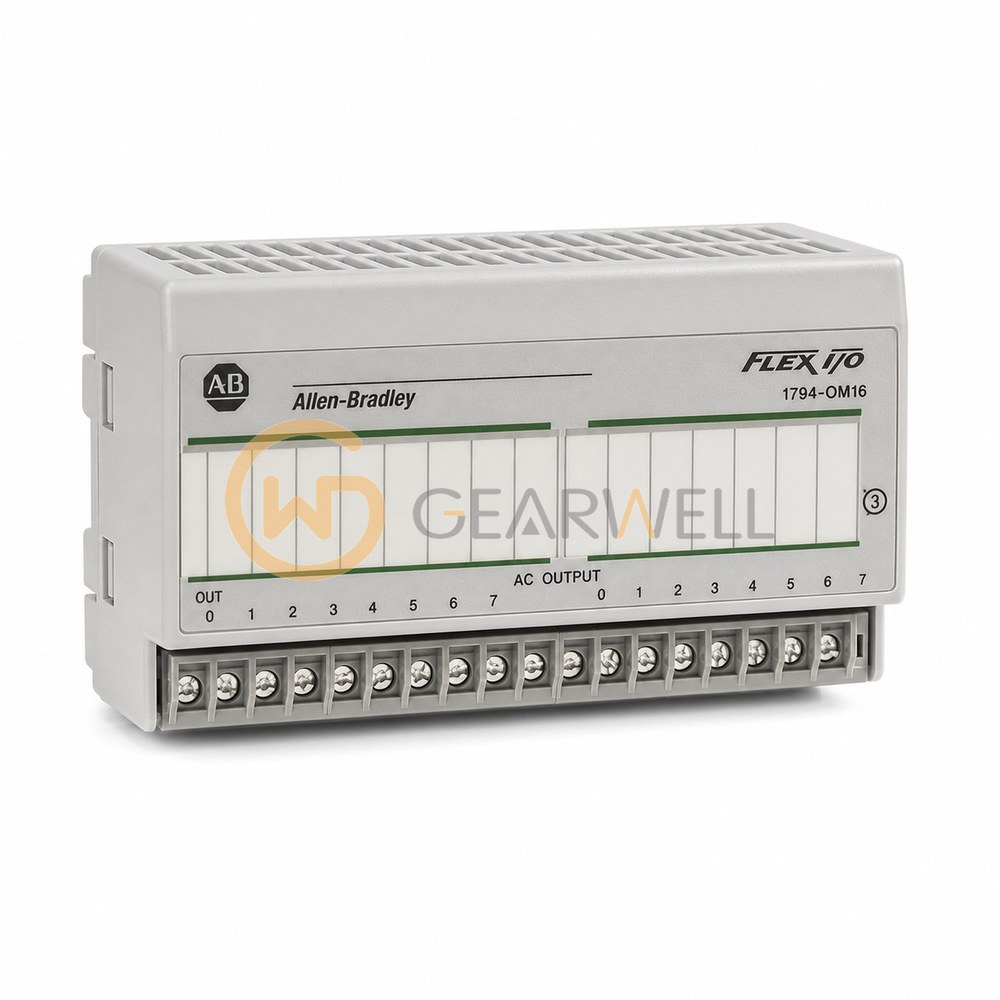

Allen-Bradley 1794-OM16 FLEX I/O 16-Point 240 V AC Output Module
- Brand
- Allen-Bradley
- Model
- 1794OM16
- GEARWELL SKU
- GWP-000004235
- Category
- PLCs & I/O
Key specifications
- Output channels
- 16 nonisolated outputs
- Nominal supply voltage
- 240 V AC nominal
- Product type
- FLEX I/O 16-point AC digital output module
- Output fusing
- Outputs are not fused. Fused outputs are recommended; provide external fusing when required if not using a 1794-TBNF terminal base.
- FlexBus current
- 116 mA at 5 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1794-OM16 is a FLEX I/O digital output module with 16 nonisolated 240V AC outputs (159…264V AC), up to 4.0 A per module. It mounts on a 1794-TBNF, 1794-TBN or 1794-TBNK terminal base. FLEX I/O modules plug into a terminal base unit that carries the field wiring, so a module can be removed and inserted under power without disturbing field wiring; one FLEX I/O adapter communicates with up to eight I/O modules.
Technical reference
| Product name | Allen-Bradley 1794-OM16 FLEX I/O 16-Point 240 V AC Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1794OM16 |
| Category | PLCs & I/O |
| Output channels | 16 nonisolated outputs |
| Nominal supply voltage | 240 V AC nominal |
| Product type | FLEX I/O 16-point AC digital output module |
| Output fusing | Outputs are not fused. Fused outputs are recommended; provide external fusing when required if not using a 1794-TBNF terminal base. |
| FlexBus current | 116 mA at 5 V DC |
| Manufacturer lifecycle status | End of Life; manufacturer-announced discontinuation: 31 October 2026. |
| Operating temperature | 0…55 °C (32…131 °F) |
| Product description | FLEX I/O digital output module with 16 nonisolated outputs and 240 V AC nominal output voltage. |
| Output voltage range | 159…264 V AC; 240 V AC nominal |
| Maximum module output current | 4.0 A maximum per module (16 outputs at 250 mA). If using 0.5 A outputs, alternate wiring so no two 0.5 A outputs are adjacent. |
