Allen-Bradley 1769-IQ6XOW4 Compact I/O 6 DC Input / 4 Relay Output Module
- Brand
- Allen-Bradley
- Model
- 1769IQ6XOW4
- GEARWELL SKU
- GWP-000003009
- Category
- PLCs & I/O
Key specifications
- Nominal input voltage
- 24 V DC
- Group isolation test and working voltage
- 1200 V AC or 1697 V DC for 1 s, qualification test; 75 V DC working voltage; input/output group to bus and between groups
- Maximum bus current draw
- 105 mA at 5.1 V DC; 50 mA at 24 V DC
- Operating input voltage
- 10-30 V DC at 30 deg C; 10-26.4 V DC at 60 deg C
- Relay switching voltage
- 5-265 V AC or 5-125 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

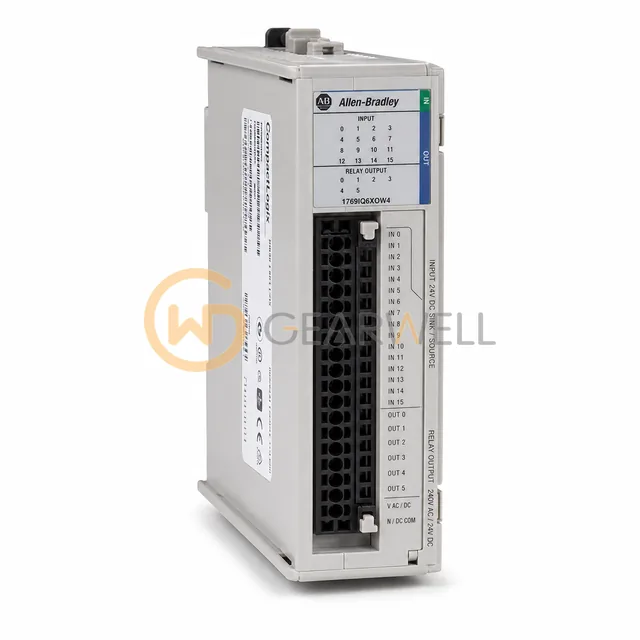

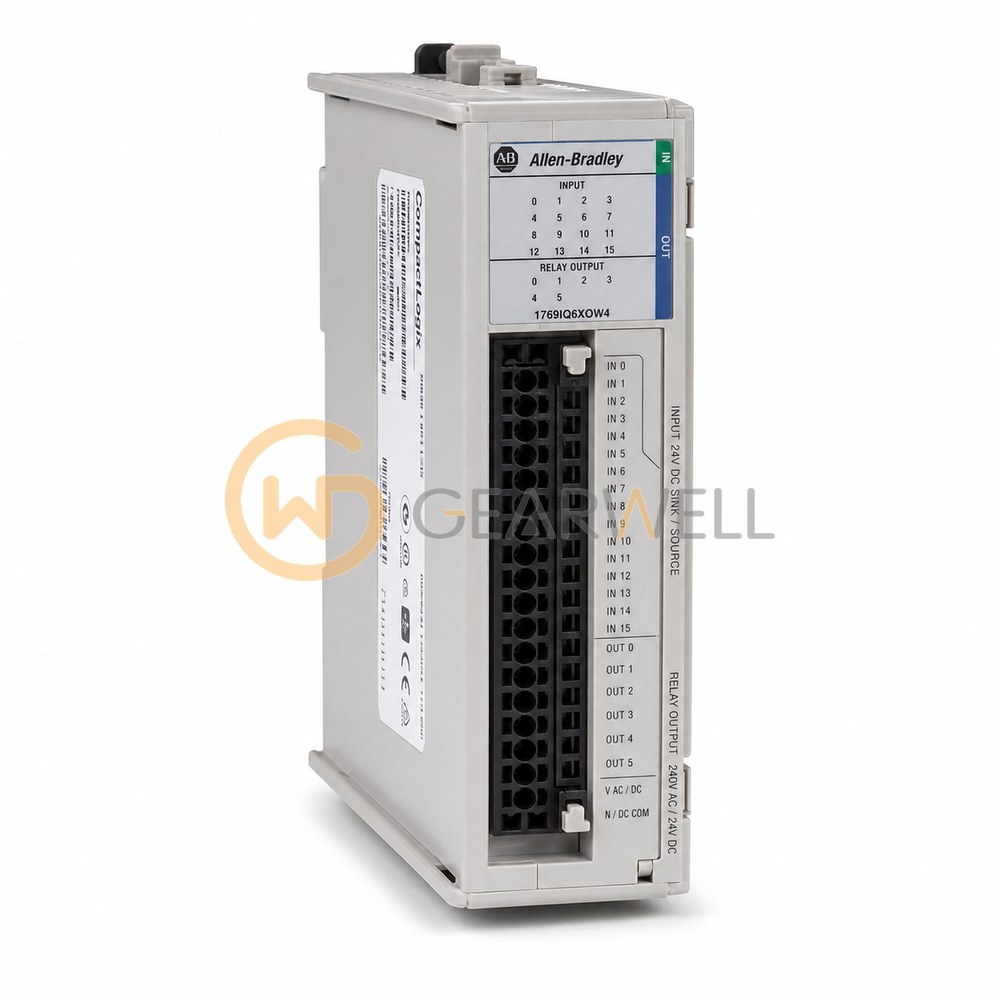

The Allen-Bradley 1769-IQ6XOW4 is a Compact I/O combination module with 6 sink/source 24V DC inputs (10…30V DC at 30 °C) and 4 normally open AC/DC relay outputs for 5…265V AC or 5…125V DC, rated 2.5 A per point and 8 A per module. It draws 105 mA at 5.1V and 50 mA at 24V from the bus and has a power supply distance rating of 8 modules. Compact I/O modules lock together with a tongue-and-groove design and an integrated bus connector, mount on a DIN rail or panel, and work with 1769 CompactLogix controllers, as expansion I/O for a MicroLogix 1500 controller, or with a 1769-ADN DeviceNet or 1769-AENTR EtherNet/IP adapter; the module is rated for 0…60 °C (32…140 °F) operation.
Technical reference
| Product name | Allen-Bradley 1769-IQ6XOW4 Compact I/O 6 DC Input / 4 Relay Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769IQ6XOW4 |
| Category | PLCs & I/O |
| Nominal input voltage | 24 V DC |
| Group isolation test and working voltage | 1200 V AC or 1697 V DC for 1 s, qualification test; 75 V DC working voltage; input/output group to bus and between groups |
| Maximum bus current draw | 105 mA at 5.1 V DC; 50 mA at 24 V DC |
| Operating input voltage | 10-30 V DC at 30 deg C; 10-26.4 V DC at 60 deg C |
| Relay switching voltage | 5-265 V AC or 5-125 V DC |
| Maximum heat dissipation | 2.75 W |
| Physical I/O channels | 6 DC inputs and 4 normally open relay outputs |
| Operating temperature | 0-60 deg C |
| Power supply distance rating | 8 modules |
