Allen-Bradley 1769-IT6 Compact I/O 6-Channel Thermocouple mV Input Module
- Brand
- Allen-Bradley
- Model
- 1769IT6
- GEARWELL SKU
- GWP-000001307
- Category
- PLCs & I/O
Key specifications
- Depth
- 87 mm
- Height
- 118 mm; 138 mm including mounting tabs
- Input-group-to-bus isolation
- 720 V DC for 60 s, qualification test; 30 V AC/DC working voltage
- Input types
- Thermocouples B, E, J, K, R, S, T, N and C; +/-50 mV and +/-100 mV
- Power source
- Compact I/O backplane
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

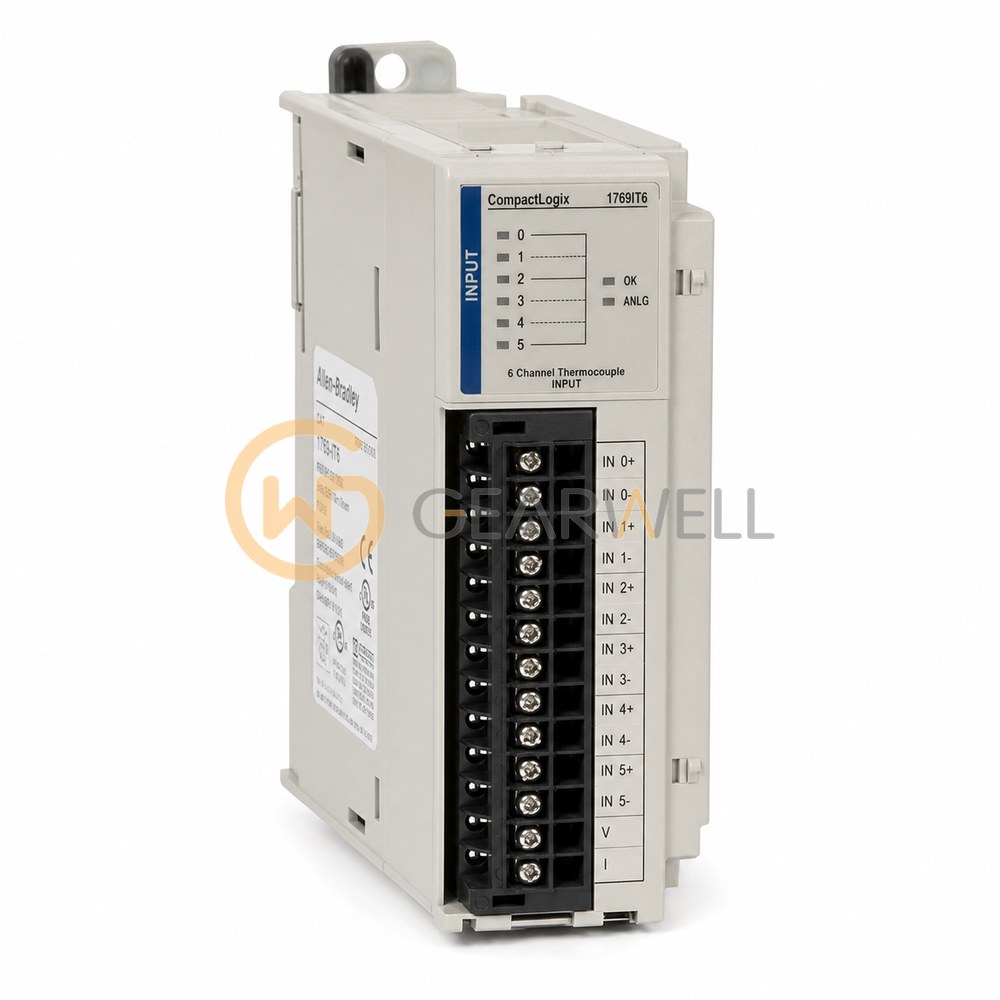

The Allen-Bradley 1769-IT6 is a Compact I/O thermocouple/millivolt input module with 6 inputs for thermocouple types B, C, E, J, K, N, R, S and T and for ±50 mV and ±100 mV signals, with 2 CJC sensors for cold junction compensation. It draws 140 mA at 5V DC and 30 mA at 24V DC from the bus and has a power supply distance rating of 8 modules. Compact I/O modules lock together with a tongue-and-groove design and an integrated bus connector, mount on a DIN rail or panel, and work with 1769 CompactLogix controllers, as expansion I/O for a MicroLogix 1500 controller, or with a 1769-ADN DeviceNet or 1769-AENTR EtherNet/IP adapter; the module is rated for 0…60 °C (32…140 °F) operation.
Technical reference
| Product name | Allen-Bradley 1769-IT6 Compact I/O 6-Channel Thermocouple mV Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769IT6 |
| Category | PLCs & I/O |
| Depth | 87 mm |
| Height | 118 mm; 138 mm including mounting tabs |
| Input-group-to-bus isolation | 720 V DC for 60 s, qualification test; 30 V AC/DC working voltage |
| Input types | Thermocouples B, E, J, K, R, S, T, N and C; +/-50 mV and +/-100 mV |
| Power source | Compact I/O backplane |
| Converter type | Delta-sigma |
| Maximum heat dissipation | 1.5 W |
| Channel diagnostics | Open circuit, over-range and under-range |
| Input channels | 6 thermocouple/mV inputs plus 2 CJC sensors |
