Allen-Bradley 1769-IQ16K Compact I/O 16-Point 24 V DC Conformal-Coated Input Module
- Brand
- Allen-Bradley
- Model
- 1769IQ16K
- GEARWELL SKU
- GWP-000002197
- Category
- PLCs & I/O
Key specifications
- Catalog coating option
- Conformal coated
- Nominal input voltage
- 24 V DC
- Input isolation test and working voltage
- 1200 V AC or 1697 V DC for 1 s, qualification test; 75 V DC working voltage; input to bus and between input groups
- Maximum bus current draw
- 115 mA at 5.1 V DC
- Maximum input delay
- 8 ms on and 8 ms off
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

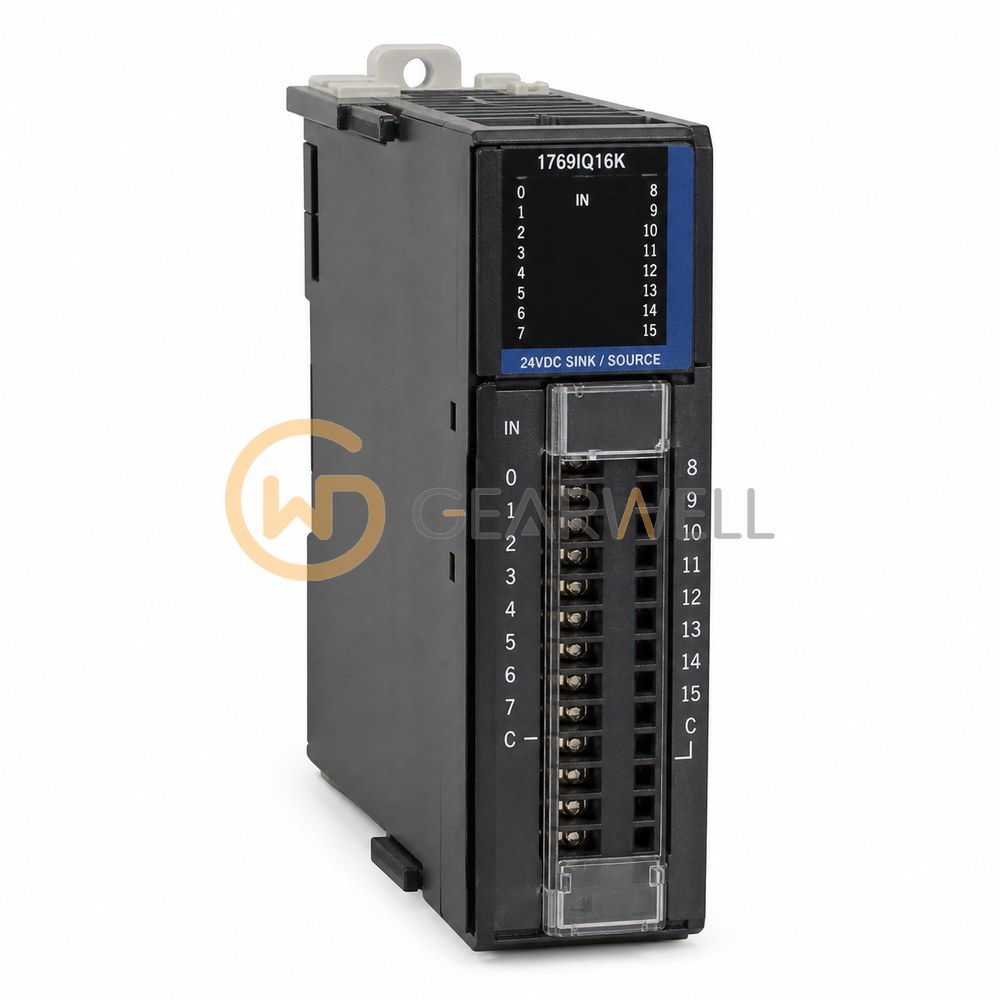

The Allen-Bradley 1769-IQ16K is a Compact I/O input module with 16 sink/source 24V DC inputs in 2 groups of 8 points, an operating range of 10…30V DC at 30 °C (10…26.4V DC at 60 °C) and an on-state voltage of at least 10V DC. It draws 115 mA at 5.1V from the bus and has a power supply distance rating of 8 modules. Compact I/O modules lock together with a tongue-and-groove design and an integrated bus connector, mount on a DIN rail or panel, and work with 1769 CompactLogix controllers, as expansion I/O for a MicroLogix 1500 controller, or with a 1769-ADN DeviceNet or 1769-AENTR EtherNet/IP adapter; the module is rated for 0…60 °C (32…140 °F) operation. This K version adds conformal coating.
Technical reference
| Product name | Allen-Bradley 1769-IQ16K Compact I/O 16-Point 24 V DC Conformal-Coated Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769IQ16K |
| Category | PLCs & I/O |
| Catalog coating option | Conformal coated |
| Nominal input voltage | 24 V DC |
| Input isolation test and working voltage | 1200 V AC or 1697 V DC for 1 s, qualification test; 75 V DC working voltage; input to bus and between input groups |
| Maximum bus current draw | 115 mA at 5.1 V DC |
| Maximum input delay | 8 ms on and 8 ms off |
| Operating input voltage | 10-30 V DC at 30 deg C; 10-26.4 V DC at 60 deg C |
| Input channels | 16, 8 per common group |
| Power supply distance rating | 8 modules |
