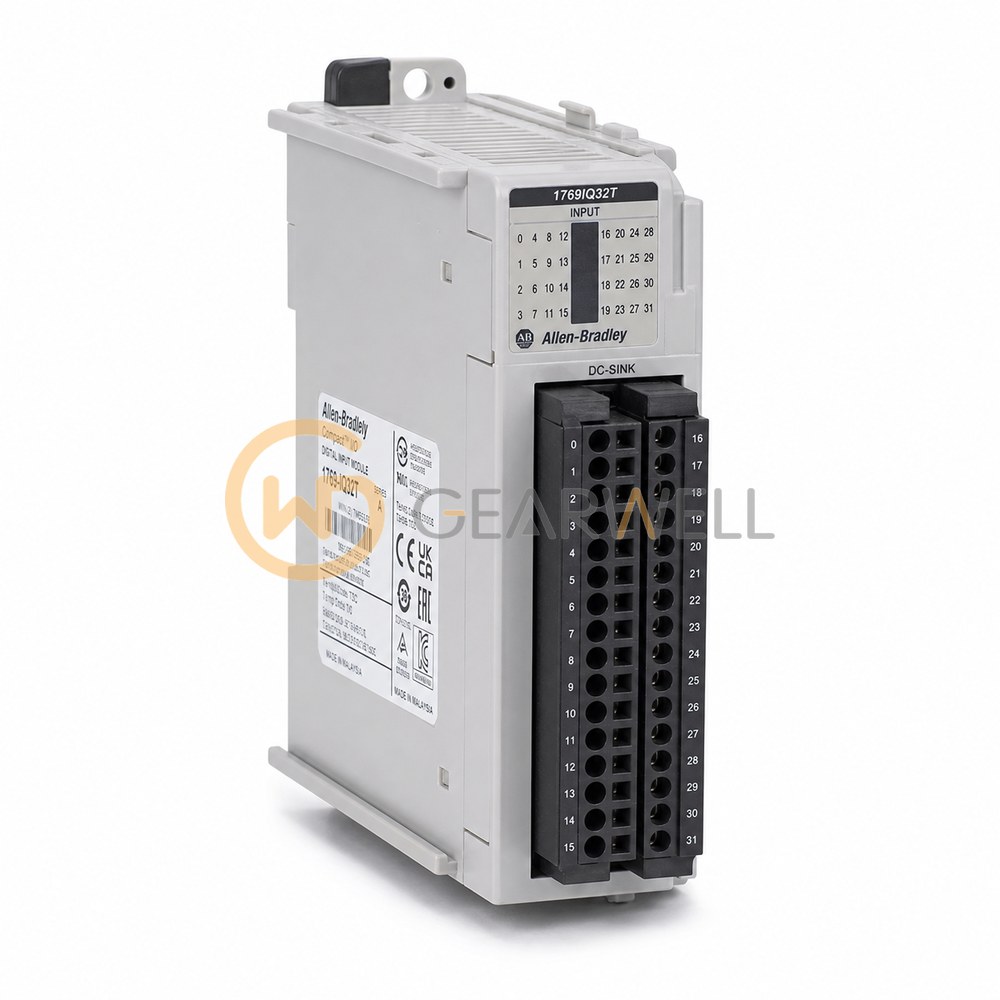

Allen-Bradley 1769-IQ32T Compact I/O 32-Point 24 V DC Terminated Input Module
- Brand
- Allen-Bradley
- Model
- 1769IQ32T
- GEARWELL SKU
- GWP-000000099
- Category
- PLCs & I/O
Key specifications
- Nominal input voltage
- 24 V DC
- Input isolation test and working voltage
- 1200 V AC or 1697 V DC for 1 s, qualification test; 75 V DC working voltage; input to bus and between input groups
- Maximum bus current draw
- 170 mA at 5.1 V DC
- Hardware input delay (before filter)
- Off-on: 0.42 ms maximum; on-off: 1 ms maximum
- Operating input voltage
- 20.4-26.4 V DC at 60 deg C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1769-IQ32T is a Compact I/O input module with 32 sink/source 24V DC inputs in groups of 8 points on a terminated connector, an operating range of 20.4…26.4V DC at 60 °C and selectable digital filters from 0 s to 8 ms; the 1746-N3 kit (1 connector and 40 terminals) terminates the field cable. It draws 170 mA at 5.1V from the bus and has a power supply distance rating of 8 modules. Compact I/O modules lock together with a tongue-and-groove design and an integrated bus connector, mount on a DIN rail or panel, and work with 1769 CompactLogix controllers, as expansion I/O for a MicroLogix 1500 controller, or with a 1769-ADN DeviceNet or 1769-AENTR EtherNet/IP adapter; the module is rated for 0…60 °C (32…140 °F) operation.
Technical reference
| Product name | Allen-Bradley 1769-IQ32T Compact I/O 32-Point 24 V DC Terminated Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769IQ32T |
| Category | PLCs & I/O |
| Nominal input voltage | 24 V DC |
| Input isolation test and working voltage | 1200 V AC or 1697 V DC for 1 s, qualification test; 75 V DC working voltage; input to bus and between input groups |
| Maximum bus current draw | 170 mA at 5.1 V DC |
| Hardware input delay (before filter) | Off-on: 0.42 ms maximum; on-off: 1 ms maximum |
| Operating input voltage | 20.4-26.4 V DC at 60 deg C |
| Input channels | 32, 8 per common group |
| Terminal connector | 1746-N3, 40 terminals |
| Power supply distance rating | 8 modules |
