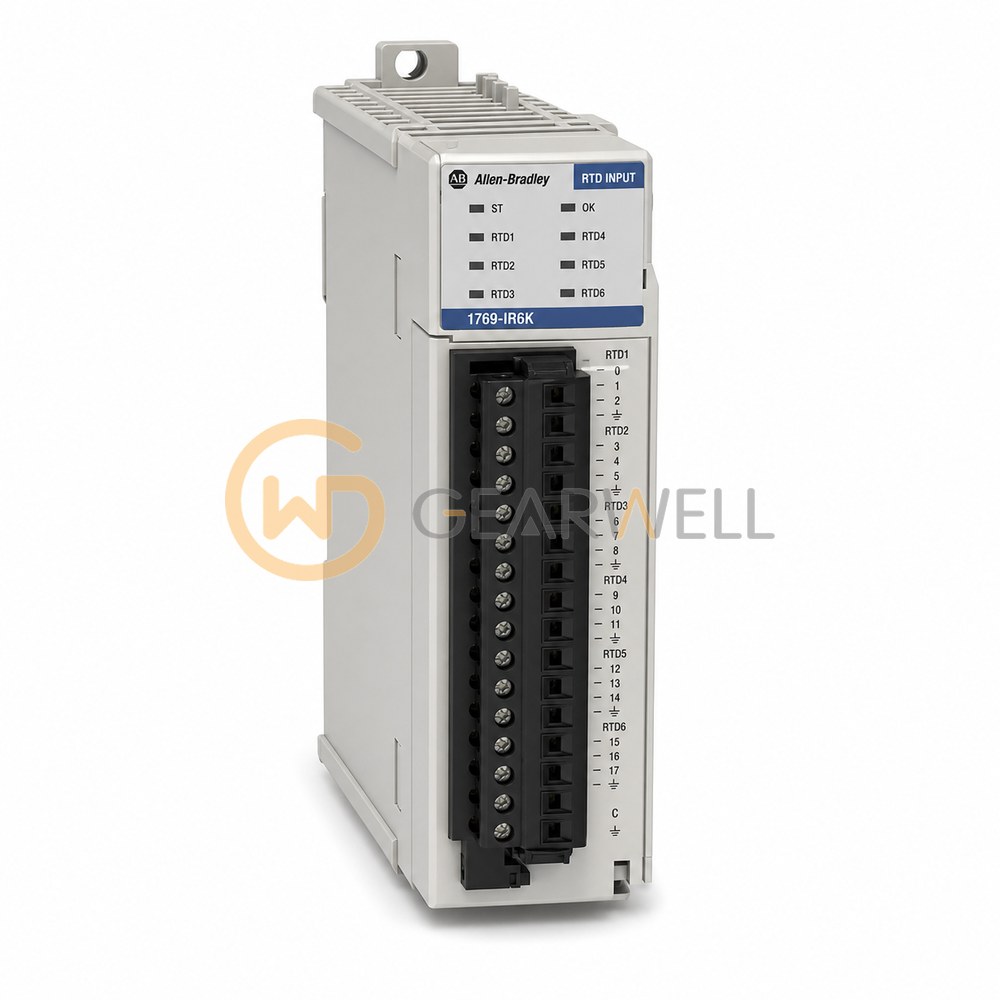

Allen-Bradley 1769-IR6K Compact I/O 6-Channel Conformal-Coated RTD Resistance Input Module
- Brand
- Allen-Bradley
- Model
- 1769IR6K
- GEARWELL SKU
- GWP-000001508
- Category
- PLCs & I/O
Key specifications
- Dimensions
- 118 x 35 x 87 mm (H x W x D), approximately; height with mounting tabs 138 mm
- Product type
- Conformal-coated RTD/resistance input module
- Converter type
- Sigma-delta
- Input channels
- 6 RTD/resistance inputs
- Channel-to-bus isolation
- 720 V DC for 60 s, qualification test; 30 V AC/DC working voltage
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 1769-IR6K Compact I/O 6-Channel Conformal-Coated RTD Resistance Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769IR6K |
| Category | PLCs & I/O |
| Dimensions | 118 x 35 x 87 mm (H x W x D), approximately; height with mounting tabs 138 mm |
| Product type | Conformal-coated RTD/resistance input module |
| Converter type | Sigma-delta |
| Input channels | 6 RTD/resistance inputs |
| Channel-to-bus isolation | 720 V DC for 60 s, qualification test; 30 V AC/DC working voltage |
| Input impedance | >10 Mohm |
| Power source | 5 V DC and 24 V DC through the Compact I/O backplane |
| Maximum heat dissipation | 1.5 W |
| Resistance ranges | 0-150, 0-500, 0-1000 and 0-3000 ohm; 0-3000 ohm requires 0.5 mA excitation |
| Supported sensors | Platinum 385/3916, Nickel 618/672, Nickel-Iron 518 and Copper 426; excitation setting depends on sensor |
| Power supply distance rating | 8 modules |
