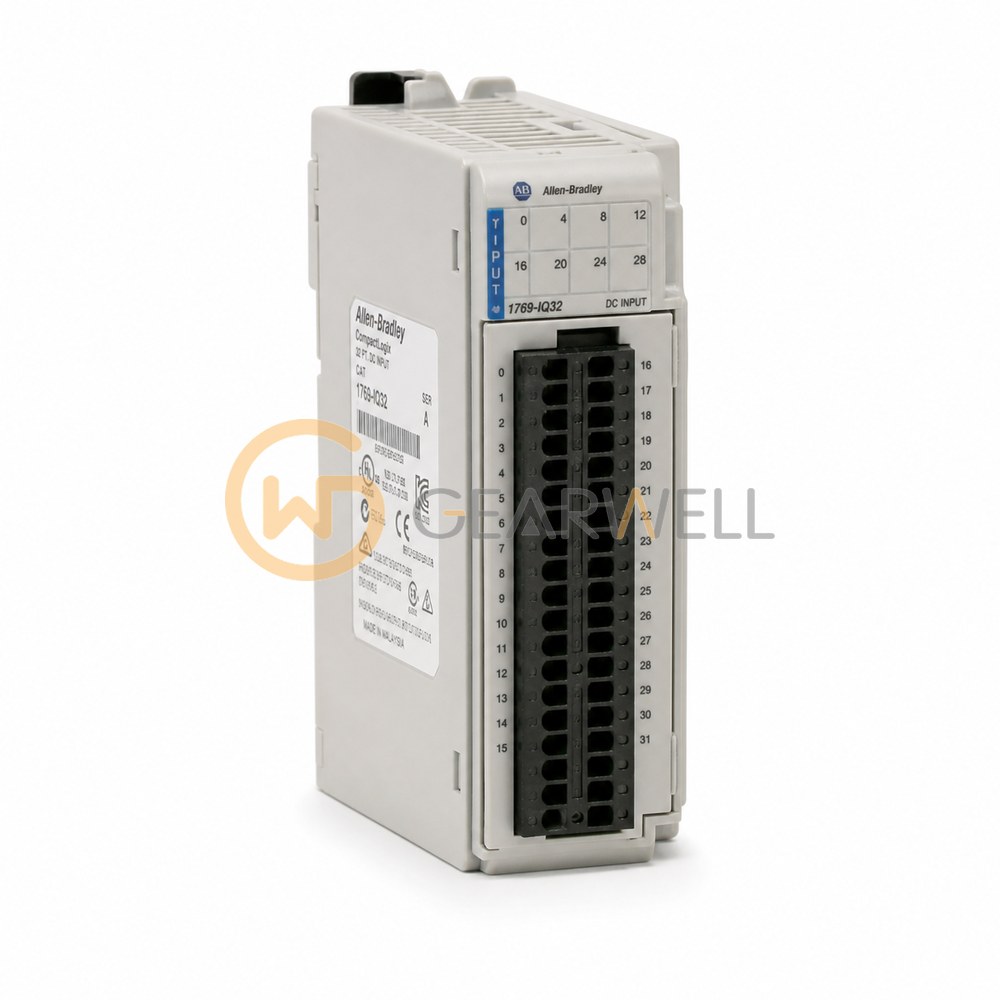

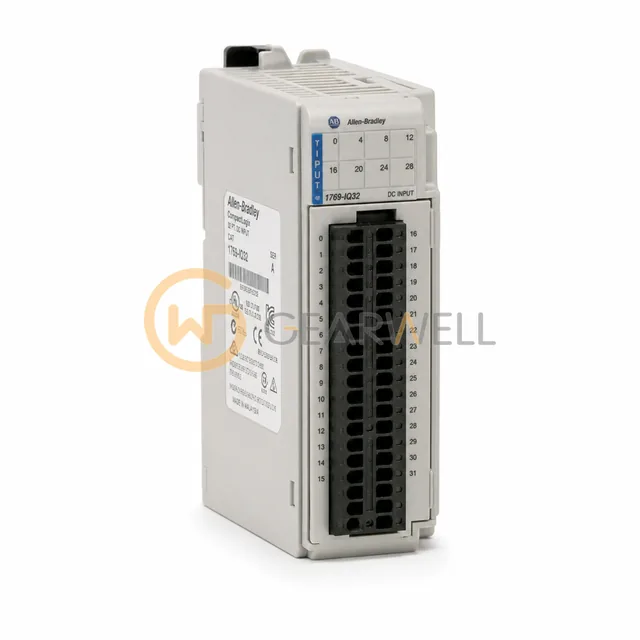

Allen-Bradley 1769-IQ32 Compact I/O 32-Point 24 V DC Input Module

Brand: Allen-Bradley
Model: 1769IQ32
GEARWELL SKU: GWP-000003138
Category: PLCs & I/O

Key specifications

Nominal input voltage: 24 V DC
Input isolation test and working voltage: 1200 V AC or 1697 V DC for 1 s, qualification test; 75 V DC working voltage; input to bus and between input groups
Maximum bus current draw: 170 mA at 5.1 V DC
Maximum input delay: 8 ms on and 8 ms off
Operating input voltage: 10-30 V DC at 30 deg C; 10-26.4 V DC at 60 deg C

CompactLogix 1769 and Compact I/O catalog number list (PDF, 123 KB)

Request a QuoteWhatsApp

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

← Back to products

Product overview

The Allen-Bradley 1769-IQ32 is a Compact I/O input module with 32 sink/source 24V DC inputs in groups of 8 points, an operating range of 10…30V DC at 30 °C (10…26.4V DC at 60 °C) and an on-state voltage of at least 10V DC. It draws 170 mA at 5.1V from the bus and has a power supply distance rating of 8 modules. Compact I/O modules lock together with a tongue-and-groove design and an integrated bus connector, mount on a DIN rail or panel, and work with 1769 CompactLogix controllers, as expansion I/O for a MicroLogix 1500 controller, or with a 1769-ADN DeviceNet or 1769-AENTR EtherNet/IP adapter; the module is rated for 0…60 °C (32…140 °F) operation.

Technical reference

Product name	Allen-Bradley 1769-IQ32 Compact I/O 32-Point 24 V DC Input Module
Brand	Allen-Bradley
Model	1769IQ32
Category	PLCs & I/O
Nominal input voltage	24 V DC
Input isolation test and working voltage	1200 V AC or 1697 V DC for 1 s, qualification test; 75 V DC working voltage; input to bus and between input groups
Maximum bus current draw	170 mA at 5.1 V DC
Maximum input delay	8 ms on and 8 ms off
Operating input voltage	10-30 V DC at 30 deg C; 10-26.4 V DC at 60 deg C
Input channels	32, 8 per common group
Operating temperature	0-60 deg C
Power supply distance rating	8 modules
