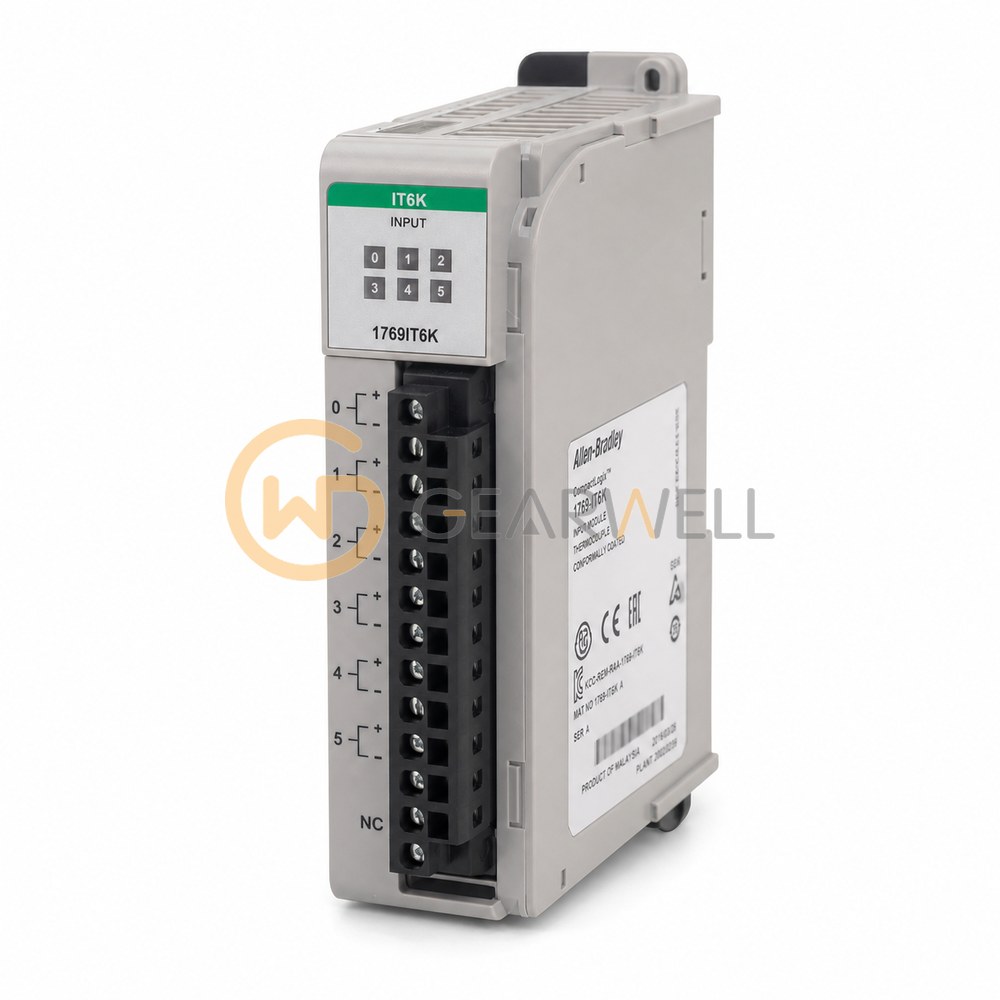

Allen-Bradley 1769-IT6K Compact I/O 6-Channel Conformal-Coated Thermocouple mV Input Module
- Brand
- Allen-Bradley
- Model
- 1769IT6K
- GEARWELL SKU
- GWP-000001266
- Category
- PLCs & I/O
Key specifications
- Dimensions
- 118 x 35 x 87 mm (H x W x D), approximately; height with mounting tabs 138 mm
- Product type
- Conformal-coated thermocouple/mV input module
- Converter type
- Delta-sigma
- Input channels
- 6 thermocouple/mV inputs plus 2 CJC sensors
- Input-group-to-bus isolation
- 720 V DC for 60 s, qualification test; 30 V AC/DC working voltage
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Allen-Bradley 1769-IT6K Compact I/O 6-Channel Conformal-Coated Thermocouple mV Input Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1769IT6K |
| Category | PLCs & I/O |
| Dimensions | 118 x 35 x 87 mm (H x W x D), approximately; height with mounting tabs 138 mm |
| Product type | Conformal-coated thermocouple/mV input module |
| Converter type | Delta-sigma |
| Input channels | 6 thermocouple/mV inputs plus 2 CJC sensors |
| Input-group-to-bus isolation | 720 V DC for 60 s, qualification test; 30 V AC/DC working voltage |
| Power source | Compact I/O backplane |
| Maximum heat dissipation | 1.5 W |
| Millivolt input ranges | +/-50 mV and +/-100 mV |
| Channel diagnostics | Open circuit, over-range and under-range |
| Thermocouple types | B, E, J, K, R, S, T, N and C |
| Rated working voltage | 30 V AC/DC |
