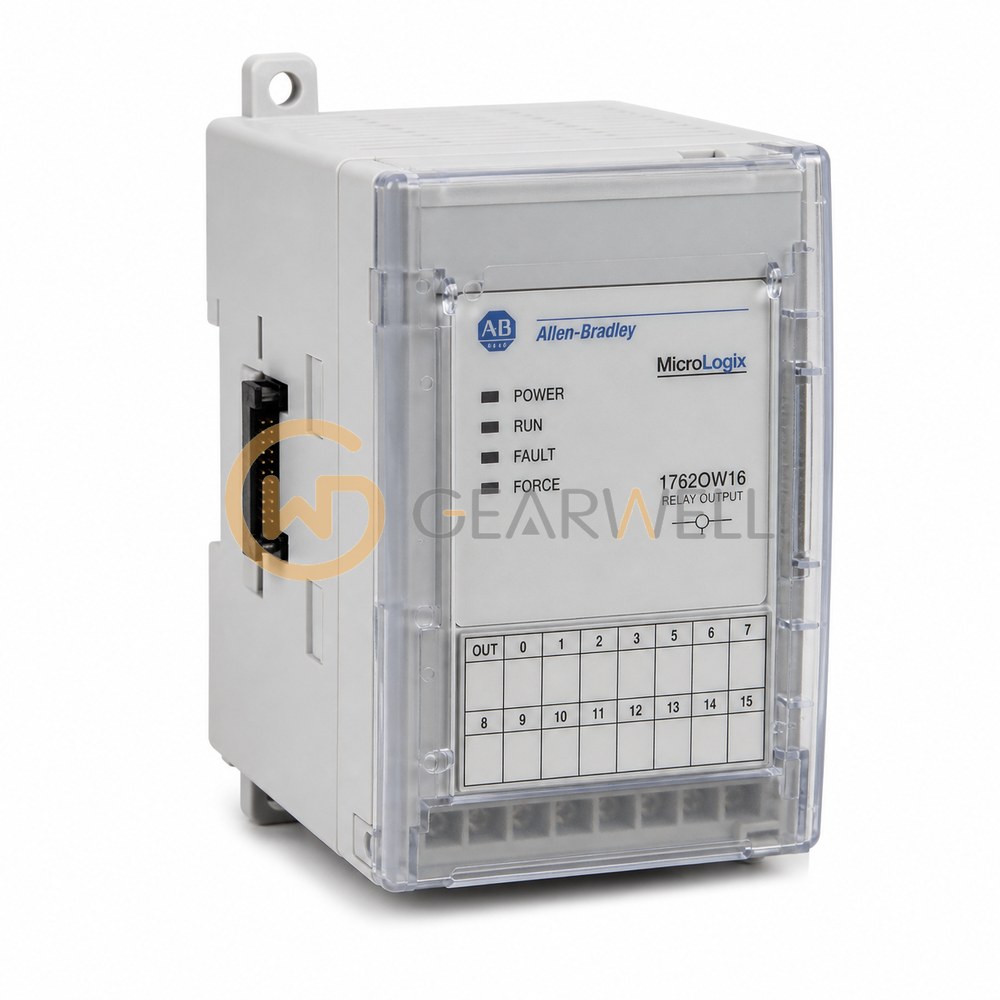

Allen-Bradley 1762OW16 MicroLogix Relay Output Module
- Brand
- Allen-Bradley
- Model
- 1762OW16
- GEARWELL SKU
- GWP-000001873
- Category
- PLCs & I/O
Key specifications
- Depth
- 87 mm
- Bus current draw, max
- 180mA @ 24V DC (4.32 W)
- digital output modules
- 16 Point VAC/VDC Relay Output
- Digital inputs configurable
- false
- Digital outputs configurable
- false
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1762-OW16 is a 16-point AC/DC normally open relay output module (5…265V AC, 5…125V DC, 2 commons). It carries 2.5 A per point, 8 A per common and 16 A per module, and draws 140 mA at 5V DC and 180 mA at 24V DC from the bus. It expands MicroLogix 1400 controllers on the 1762 I/O bus and mounts on a DIN rail or panel.
Technical reference
| Product name | Allen-Bradley 1762OW16 MicroLogix Relay Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1762OW16 |
| Category | PLCs & I/O |
| Depth | 87 mm |
| Bus current draw, max | 180mA @ 24V DC (4.32 W) |
| digital output modules | 16 Point VAC/VDC Relay Output |
| Digital inputs configurable | false |
| Digital outputs configurable | false |
| Continuous current per point, max | 2.5 A |
| Continuous current per common, max | 8 A |
| Continuous current per module, max | 16 A |
