Allen-Bradley 1762-OB32T MicroLogix 32-Point DC Sourcing Output PLC Module
- Brand
- Allen-Bradley
- Model
- 1762OB32T
- GEARWELL SKU
- GWP-000000160
- Category
- PLCs & I/O
Key specifications
- Product type
- 32-point solid-state 24 V DC sourcing output module
- Output signal delay
- 0.5 ms on and 4.0 ms off maximum, with a resistive load.
- Output channels
- 32
- Bus current draw
- 175 mA at 5 V DC; 0 mA at 24 V DC
- Heat dissipation
- 3.4 W at 26.4 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

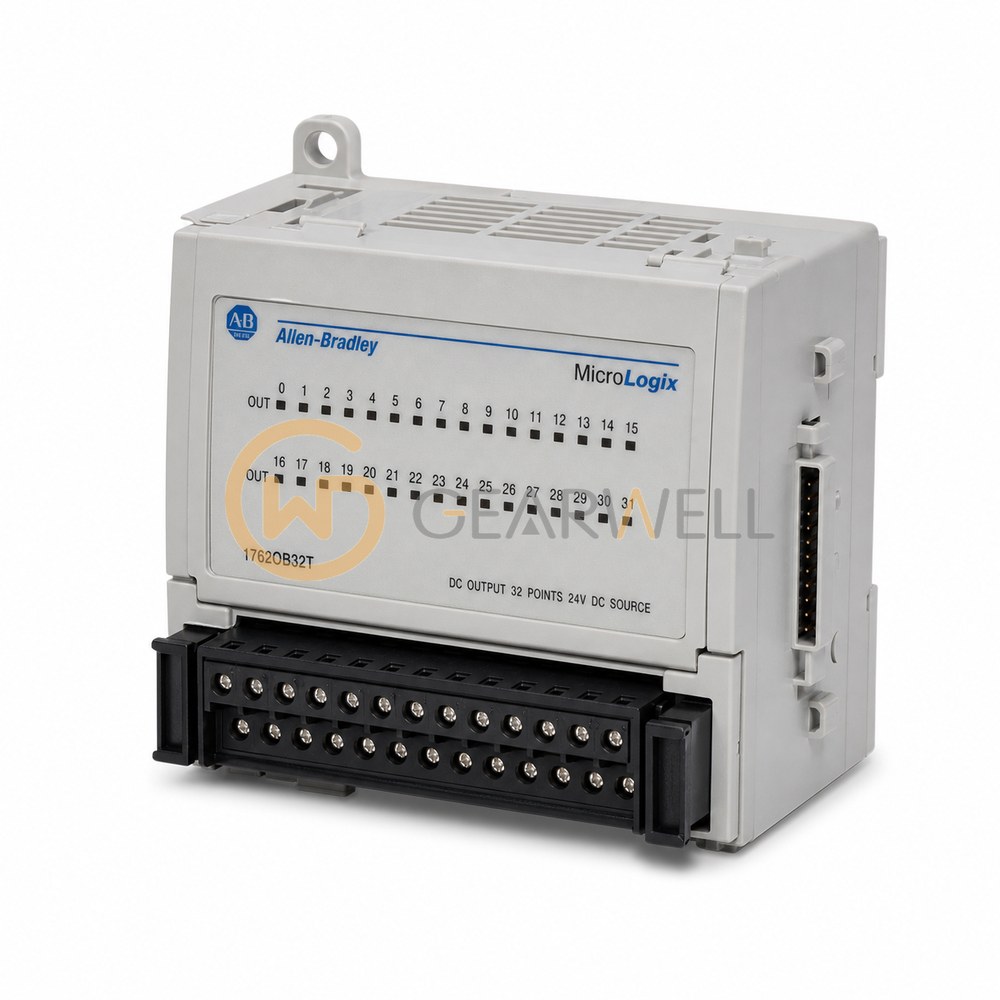

The Allen-Bradley 1762-OB32T is a 32-point solid-state 24V DC source output module (10.2…26.4V DC, 2 commons). Each point carries 0.5 A at 60 °C, with 2.0 A per common, and it draws 175 mA at 5V DC from the bus. It expands MicroLogix 1400 controllers on the 1762 I/O bus and mounts on a DIN rail or panel.
Technical reference
| Product name | Allen-Bradley 1762-OB32T MicroLogix 32-Point DC Sourcing Output PLC Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1762OB32T |
| Category | PLCs & I/O |
| Product type | 32-point solid-state 24 V DC sourcing output module |
| Output signal delay | 0.5 ms on and 4.0 ms off maximum, with a resistive load. |
| Output channels | 32 |
| Bus current draw | 175 mA at 5 V DC; 0 mA at 24 V DC |
| Heat dissipation | 3.4 W at 26.4 V DC |
| Off-state leakage current | 0.1 mA maximum at 26.4 V DC. |
| Operating voltage | 10.2-26.4 V DC |
| On-state voltage drop | 0.3 V DC maximum at 0.5 A. |
| Output isolation groups | 2 groups: outputs 0…15 and 16…31. |
| Continuous current per point | 0.5 A maximum at 60 °C |
| Continuous current per common | 2 A maximum at 60 °C. |
| Continuous current per module | 4 A maximum at 60 °C. |
