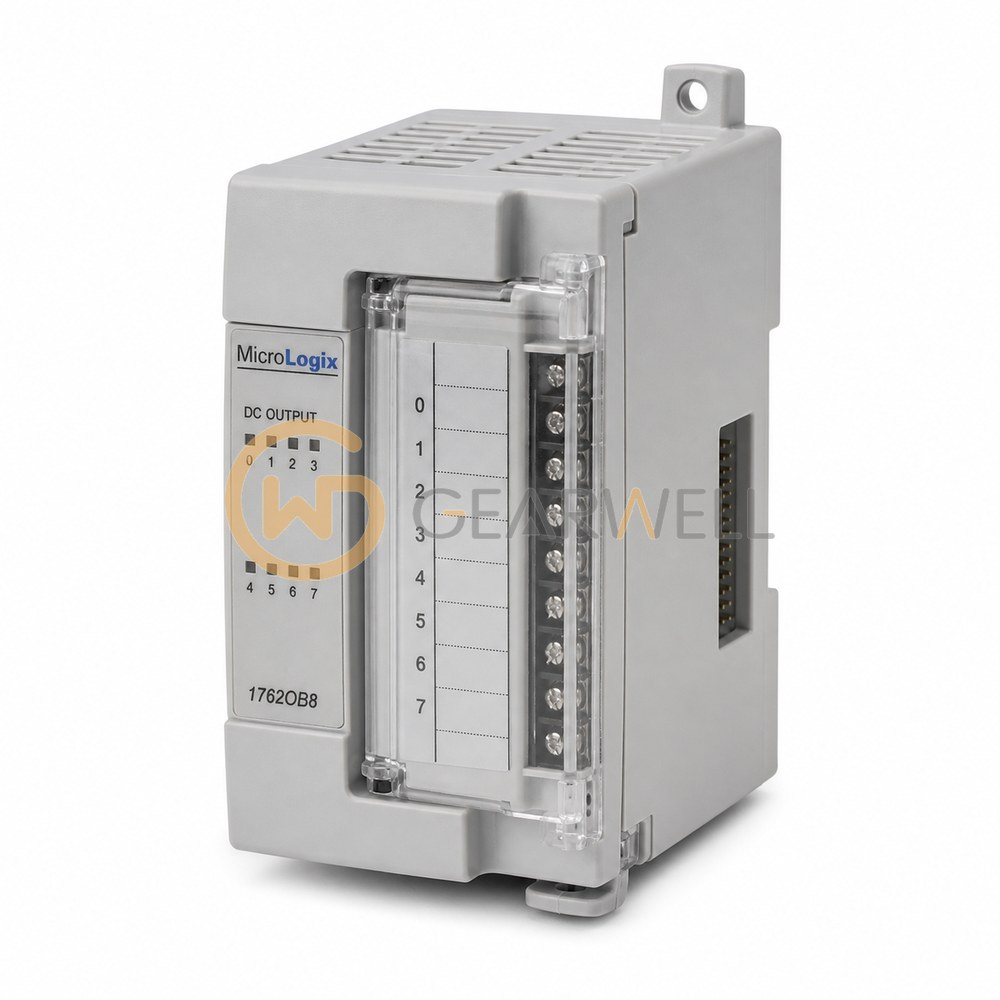

Allen-Bradley 1762OB8 MicroLogix Digital Output Module
- Brand
- Allen-Bradley
- Model
- 1762OB8
- GEARWELL SKU
- GWP-000002241
- Category
- PLCs & I/O
Key specifications
- Depth
- 87 mm
- Bus current draw, max
- 115mA @ 5V DC (0.575 W)
- digital output modules
- 8 Point 24V DC Source Output Module
- Digital inputs configurable
- false
- Digital outputs configurable
- false
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1762-OB8 is an 8-point 24V DC sourcing output module (20.4…26.4V DC, 1 common). Each point carries 1.0 A at 30 °C (0.5 A at 55 °C), and it draws 115 mA at 5V DC from the bus. It expands MicroLogix 1400 controllers on the 1762 I/O bus and mounts on a DIN rail or panel.
Technical reference
| Product name | Allen-Bradley 1762OB8 MicroLogix Digital Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1762OB8 |
| Category | PLCs & I/O |
| Depth | 87 mm |
| Bus current draw, max | 115mA @ 5V DC (0.575 W) |
| digital output modules | 8 Point 24V DC Source Output Module |
| Digital inputs configurable | false |
| Digital outputs configurable | false |
| Continuous current per point, max | 1A @ 30°C (86 °F) |
| Continuous current per common, max | 8A @ 30°C (86 °F) |
| Continuous current per module, max | 8A @ 30°C (86 °F) |
