Allen-Bradley 1762-OX6I MicroLogix 6-Point Isolated Relay Output PLC Module

Brand: Allen-Bradley
Model: 1762OX6I
GEARWELL SKU: GWP-000001066
Category: PLCs & I/O

Key specifications

Contact type: AC/DC Type C relay
Product type: 6-point individually isolated AC/DC relay output module
Output signal delay: 10 ms on and 20 ms off maximum, with a resistive load.
Output groups: 6 individually isolated Form C relay outputs.
Output channels: 6 individually isolated

MicroLogix controllers, 1762 expansion I/O and accessories catalog number list (PDF, 111 KB)

Request a QuoteWhatsApp

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

← Back to products

Product overview

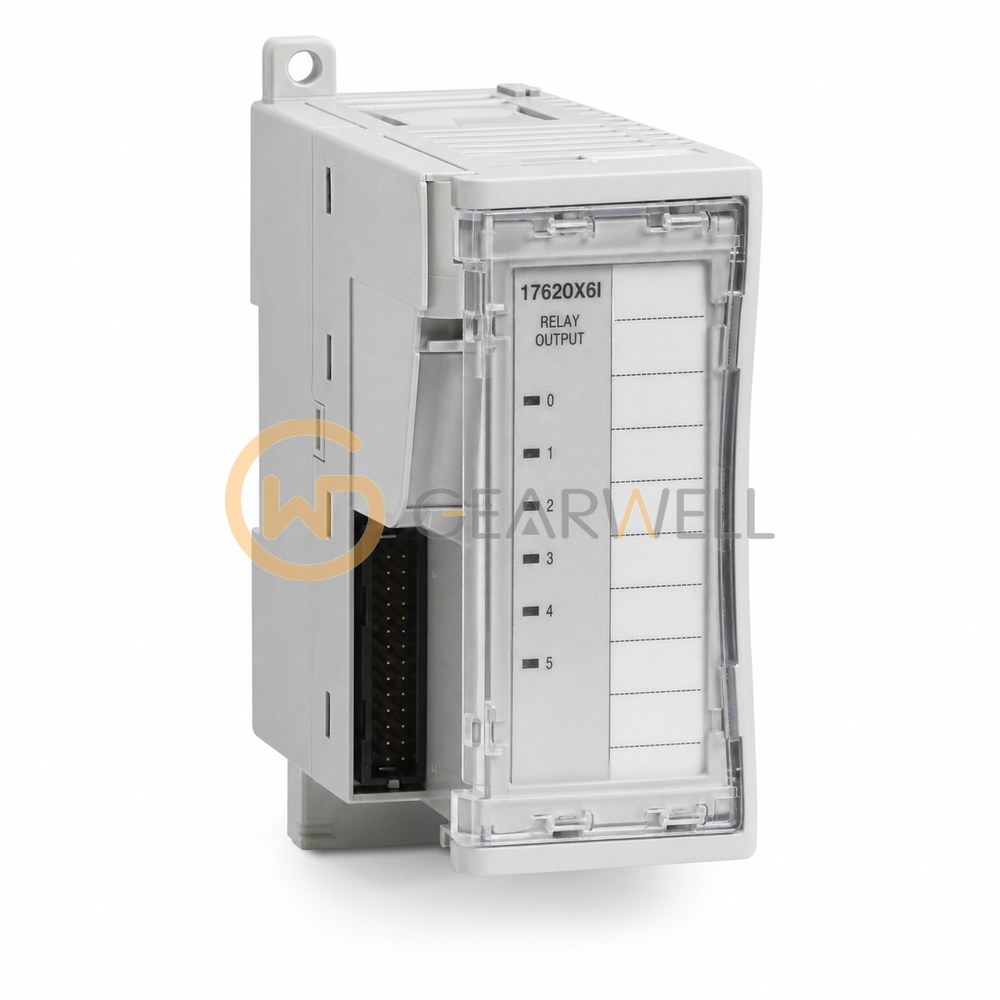

The Allen-Bradley 1762-OX6I is a 6-point isolated AC/DC Type C relay output module, each output with N.C. and N.O. contacts (5…265V AC, 5…125V DC). It carries 7 A per point and 30 A per module, and draws 110 mA at 5V DC and 110 mA at 24V DC from the bus. It expands MicroLogix 1400 controllers on the 1762 I/O bus and mounts on a DIN rail or panel.

Technical reference

Product name	Allen-Bradley 1762-OX6I MicroLogix 6-Point Isolated Relay Output PLC Module
Brand	Allen-Bradley
Model	1762OX6I
Category	PLCs & I/O
Contact type	AC/DC Type C relay
Product type	6-point individually isolated AC/DC relay output module
Output signal delay	10 ms on and 20 ms off maximum, with a resistive load.
Output groups	6 individually isolated Form C relay outputs.
Output channels	6 individually isolated
Approximate shipping weight	220 g, with carton.
Bus current draw	110 mA at 5 V DC; 110 mA at 24 V DC
Heat dissipation	2.8 W maximum
Operating voltage	5-265 V AC or 5-125 V DC
Minimum load current	100 mA.
Controlled load limit	1440 VA maximum per module; apply per-point current and module load limits.
Continuous current per output point	240 V AC: 5 A; 120 V AC: 7 A (6 A above 40 °C); 125 V DC: 2.5 A; 24 V DC: 7 A (6 A above 40 °C). Apply module load limits as well.
