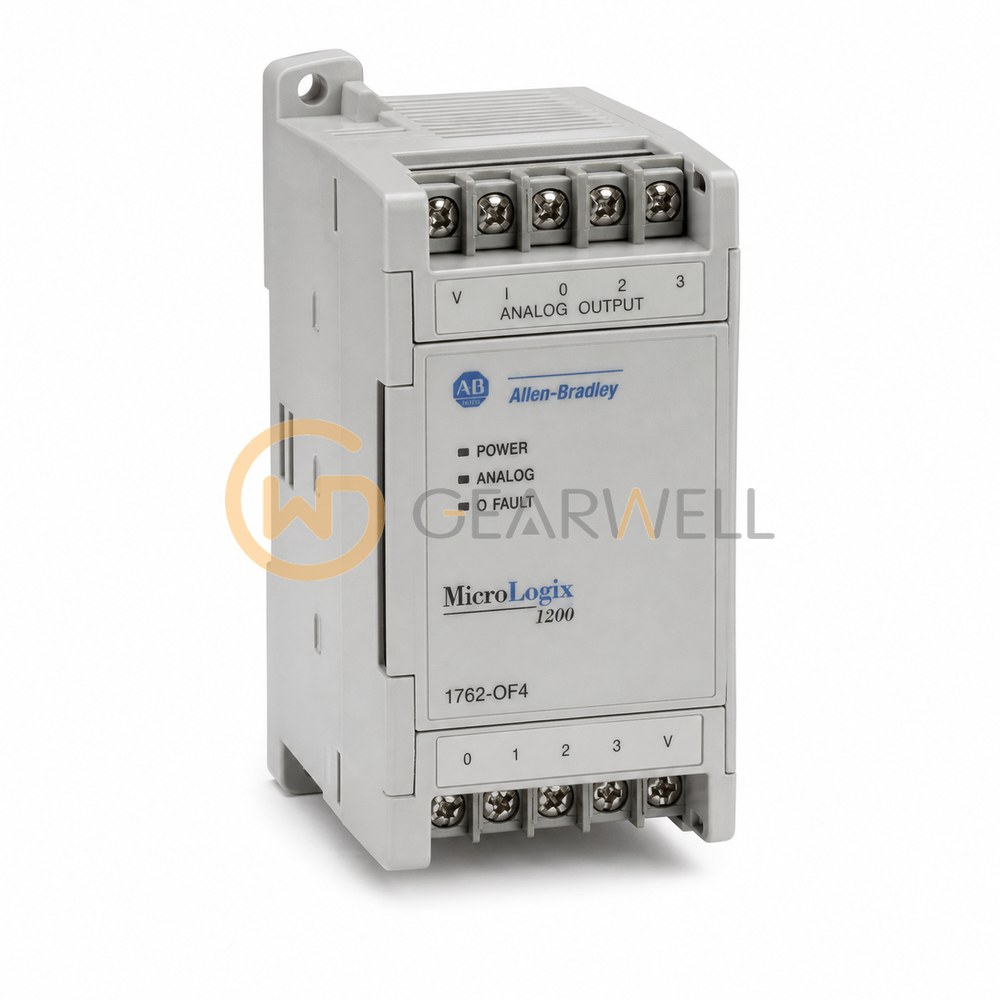

Allen-Bradley 1762OF4 MicroLogix Analog Output Module
- Brand
- Allen-Bradley
- Model
- 1762OF4
- GEARWELL SKU
- GWP-000001984
- Category
- PLCs & I/O
Key specifications
- Depth
- 87 mm
- Current Range
- 4-20
- D/A converter type
- R-2R ladder voltage switching
- Bus current draw, max
- 40mA @ 5V DC, 165mA @ 24V DC
- analog output modules
- 4 Channel Analog Output Module
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1762-OF4 is a 4-channel single-ended analog output module for 0…10V DC or 4…20 mA, with 12-bit resolution and a 2.5 ms update time. It draws 40 mA at 5V DC and 165 mA at 24V DC from the bus. It expands MicroLogix 1400 controllers on the 1762 I/O bus and mounts on a DIN rail or panel.
Technical reference
| Product name | Allen-Bradley 1762OF4 MicroLogix Analog Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1762OF4 |
| Category | PLCs & I/O |
| Depth | 87 mm |
| Current Range | 4-20 |
| D/A converter type | R-2R ladder voltage switching |
| Bus current draw, max | 40mA @ 5V DC, 165mA @ 24V DC |
| analog output modules | 4 Channel Analog Output Module |
| Analogue inputs configurable | false |
| Analog normal operating range | Voltage: 0...10V DC |
| Analogue outputs configurable | true |
