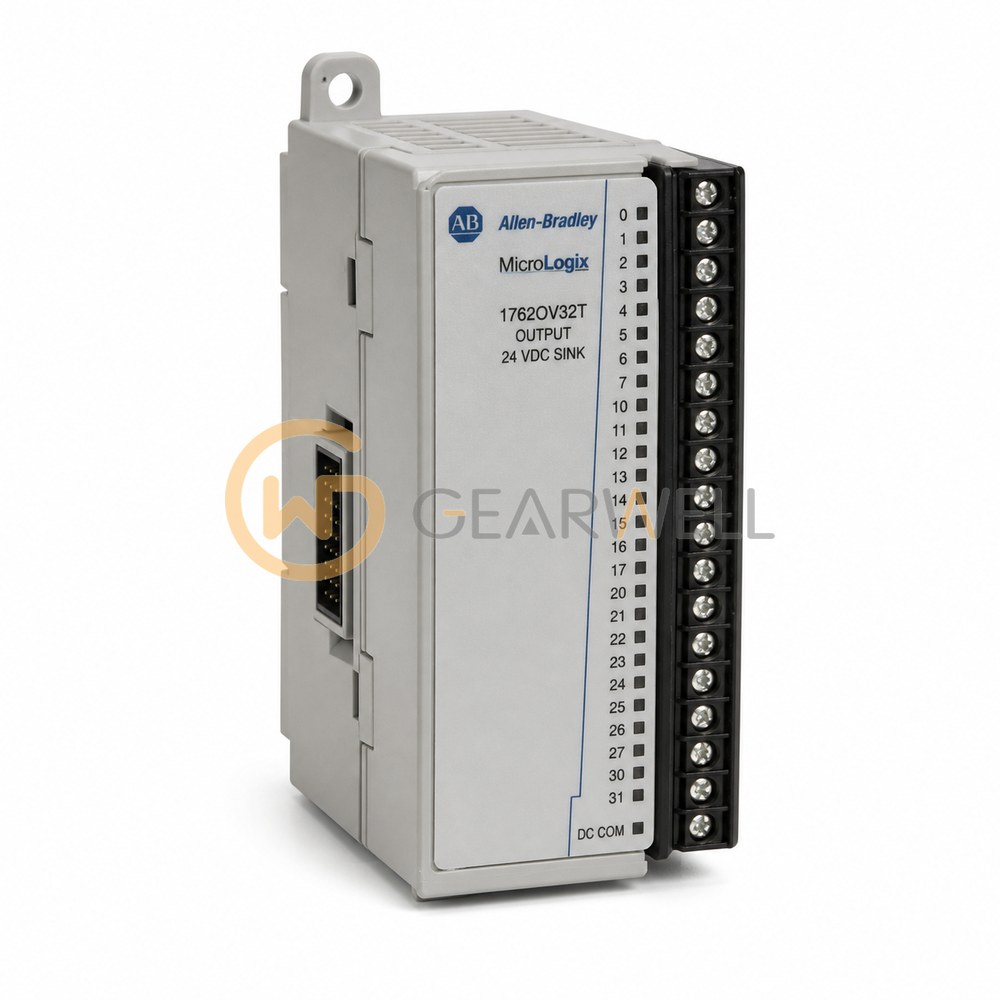

Allen-Bradley 1762OV32T MicroLogix Sinking Output Module
- Brand
- Allen-Bradley
- Model
- 1762OV32T
- GEARWELL SKU
- GWP-000002732
- Category
- PLCs & I/O
Key specifications
- Depth
- 87 mm
- Bus current draw, max
- 175mA @ 5V DC
- digital output modules
- 32 Point 24V DC Sink Output
- Digital inputs configurable
- false
- Digital outputs configurable
- false
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1762-OV32T is a 32-point solid-state 24V DC sink output module (10.2…26.4V DC, 2 commons). Each point carries 0.5 A at 60 °C, with 2.0 A per common, and it draws 175 mA at 5V DC from the bus. It expands MicroLogix 1400 controllers on the 1762 I/O bus and mounts on a DIN rail or panel.
Technical reference
| Product name | Allen-Bradley 1762OV32T MicroLogix Sinking Output Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1762OV32T |
| Category | PLCs & I/O |
| Depth | 87 mm |
| Bus current draw, max | 175mA @ 5V DC |
| digital output modules | 32 Point 24V DC Sink Output |
| Digital inputs configurable | false |
| Digital outputs configurable | false |
| Continuous current per point, max | 0.5A @ 60°C (140 °F |
| Continuous current per common, max | 2.0A @ 60°C (140 °F) |
| Continuous current per module, max | 4.0A @ 60°C (140 °F) |
