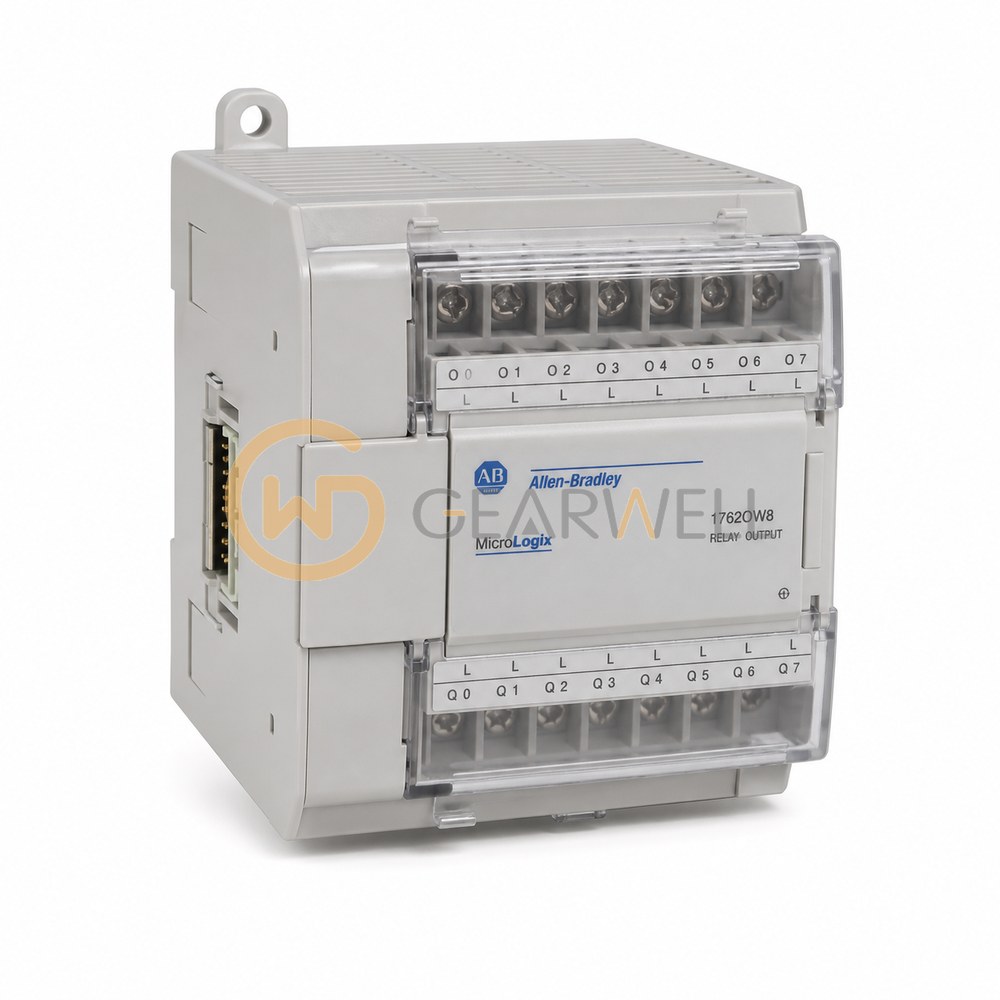

Allen-Bradley 1762-OW8 MicroLogix 8-Point Relay Output PLC Module
- Brand
- Allen-Bradley
- Model
- 1762OW8
- GEARWELL SKU
- GWP-000003433
- Category
- PLCs & I/O
Key specifications
- Product type
- 8-point AC/DC normally open relay output module
- Output signal delay
- 10 ms maximum for both on and off transitions, with a resistive load.
- Output groups
- 2 groups: outputs 0…3 and 4…7.
- Output channels
- 8
- Approximate shipping weight
- 228 g, with carton.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1762-OW8 is an 8-point AC/DC normally open relay output module (5…265V AC, 5…125V DC, 2 commons). It carries 2.5 A per point, 8 A per common and 16 A per module, and draws 80 mA at 5V DC and 90 mA at 24V DC from the bus. It expands MicroLogix 1400 controllers on the 1762 I/O bus and mounts on a DIN rail or panel.
Technical reference
| Product name | Allen-Bradley 1762-OW8 MicroLogix 8-Point Relay Output PLC Module |
|---|---|
| Brand | Allen-Bradley |
| Model | 1762OW8 |
| Category | PLCs & I/O |
| Product type | 8-point AC/DC normally open relay output module |
| Output signal delay | 10 ms maximum for both on and off transitions, with a resistive load. |
| Output groups | 2 groups: outputs 0…3 and 4…7. |
| Output channels | 8 |
| Approximate shipping weight | 228 g, with carton. |
| Bus current draw | 80 mA at 5 V DC; 90 mA at 24 V DC |
| Heat dissipation | 2.9 W maximum |
| Operating voltage | 5-265 V AC or 5-125 V DC |
| Minimum load current | 10 mA at 5 V. |
| Continuous contact current by voltage | 120/240 V AC: 2.5 A (1.5 A above 40 °C); 125 V DC: 1 A; 24 V DC: 2 A. These are continuous ratings, not make/break ratings. |
| Continuous current per common | 8 A maximum; also apply voltage/temperature limits for each output point. |
| Continuous current per module | 16 A maximum; also apply per-common and voltage/temperature limits for each output point. |
