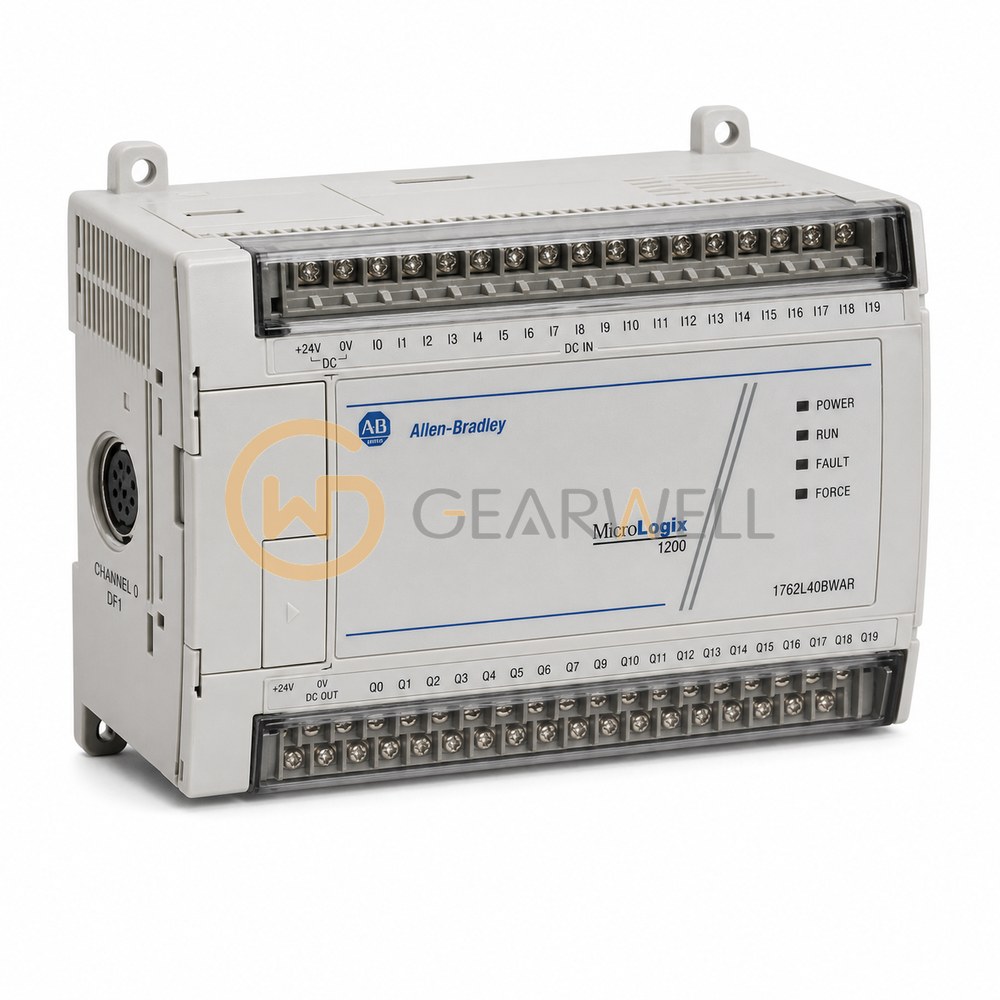

Allen-Bradley 1762L40BWAR MicroLogix 1200 Controller
- Brand
- Allen-Bradley
- Model
- 1762L40BWAR
- GEARWELL SKU
- GWP-000002255
- Category
- PLCs & I/O
Key specifications
- Depth
- 87 mm
- Height
- 90 mm
- Memory
- 6 KB
- Output
- 16 relay
- Input Signal
- 24V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1762-L40BWAR is a MicroLogix 1200 40-point controller powered from 120/240V AC, with 24 24V DC inputs (20 standard and 4 fast) and 16 relay outputs on removable terminal blocks. The R version adds a second port, the Programmer/HMI port, which supports DF1 full-duplex only. It takes an optional memory module and real-time clock and up to six 1762 expansion I/O modules in certain combinations.
Technical reference
| Product name | Allen-Bradley 1762L40BWAR MicroLogix 1200 Controller |
|---|---|
| Brand | Allen-Bradley |
| Model | 1762L40BWAR |
| Category | PLCs & I/O |
| Depth | 87 mm |
| Height | 90 mm |
| Memory | 6 KB |
| Output | 16 relay |
| Input Signal | 24V DC |
| Communication | DF1, DH-485, Modbus RTU, ASCII |
| Number Of Channels | 24 I/P, 16 O/P |
| Communication Ports | 2 serial port |
