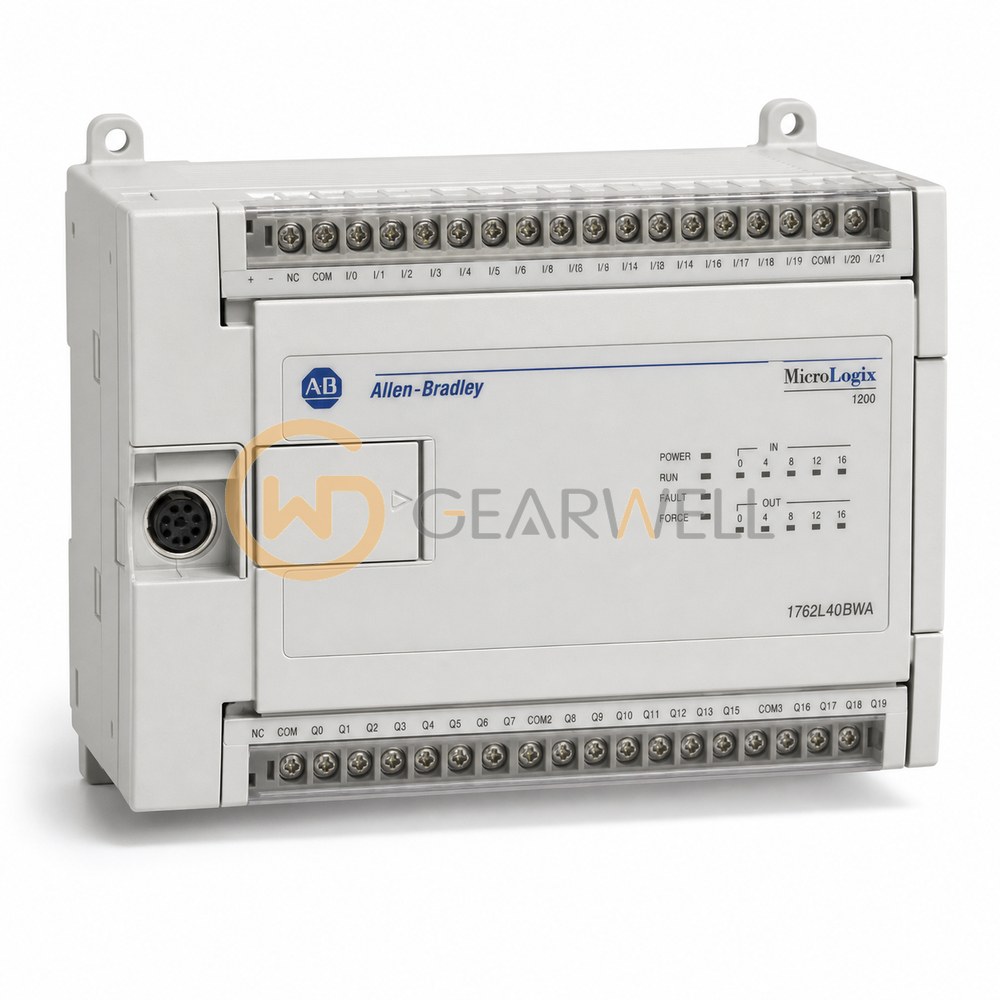

Allen-Bradley 1762-L40BWA MicroLogix 1200 40-Point PLC Controller
- Brand
- Allen-Bradley
- Model
- 1762L40BWA
- GEARWELL SKU
- GWP-000001481
- Category
- PLCs & I/O
Key specifications
- Dimensions
- 90 mm high × 160 mm wide × 87 mm deep; height is 104 mm with DIN latch open
- Input power
- 120/240 V AC
- Product type
- MicroLogix 1200 programmable controller
- Embedded inputs
- 20 standard plus 4 fast 24 V DC inputs
- Shipping weight
- 1.1 kg approximately
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1762-L40BWA is a MicroLogix 1200 40-point controller powered from 120/240V AC, with 24 24V DC inputs (20 standard and 4 fast) and 16 relay outputs on removable terminal blocks. It has one communication port (channel 0), an optional memory module and real-time clock (1762-MM1, 1762-RTC, 1762-MM1RTC), and takes up to six 1762 expansion I/O modules in certain combinations.
Technical reference
| Product name | Allen-Bradley 1762-L40BWA MicroLogix 1200 40-Point PLC Controller |
|---|---|
| Brand | Allen-Bradley |
| Model | 1762L40BWA |
| Category | PLCs & I/O |
| Dimensions | 90 mm high × 160 mm wide × 87 mm deep; height is 104 mm with DIN latch open |
| Input power | 120/240 V AC |
| Product type | MicroLogix 1200 programmable controller |
| Embedded inputs | 20 standard plus 4 fast 24 V DC inputs |
| Shipping weight | 1.1 kg approximately |
| Embedded outputs | 16 relay outputs |
| Expansion I/O limit | Up to 6 Bulletin 1762 expansion I/O modules, subject to valid combinations and power supply loading |
| Output circuit type | Relay |
| Fast input frequency | Inputs 0…3: up to 20 kHz; these are the 4 fast 24 V DC inputs |
| Power supply voltage | 100-240 V AC (-15%, +10%) at 47-63 Hz |
| Communication interface | 1 RS-232 port (Channel 0); no additional Programmer/HMI port on the L40BWA model |
