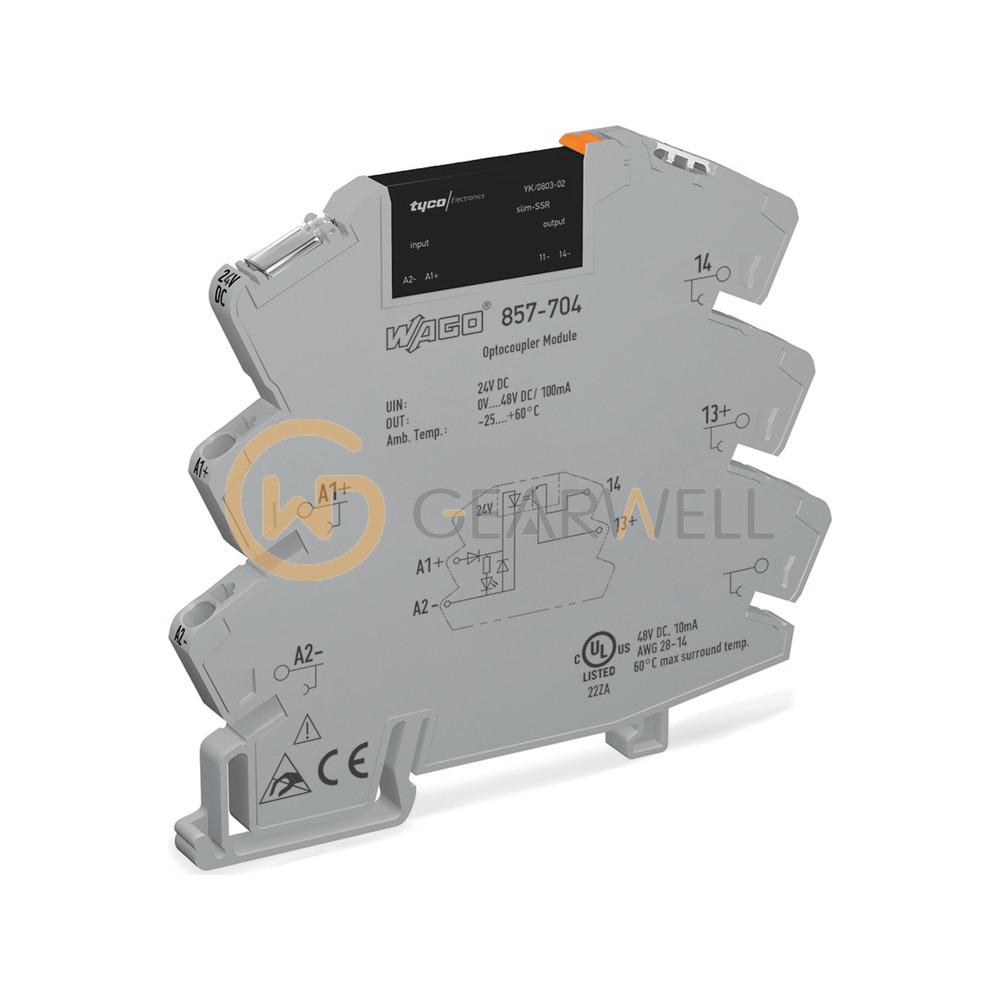

WAGO 857-704 857 Series Solid-State Relay Module
- Brand
- WAGO
- Model
- 857-704
- GEARWELL SKU
- GWP-000012154
- Category
- Contactors & Starters
Key specifications
- Width
- 6 mm
- Height
- 94 mm
- Rated Voltage
- 300 V
- Protection type
- IP20
- WAGO Basic Relay
- 857-164
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | WAGO 857-704 857 Series Solid-State Relay Module |
|---|---|
| Brand | WAGO |
| Model | 857-704 |
| Category | Contactors & Starters |
| Width | 6 mm |
| Height | 94 mm |
| Rated Voltage | 300 V |
| Protection type | IP20 |
| WAGO Basic Relay | 857-164 |
| Output voltage range | 0 … 48 VDC |
| Connection technology | Push-in CAGE CLAMP |
| Nominal input voltage | 24 VDC |
| Ambient temperature (operation) | -20 … +60 °C |
| Dielectric strength (control/load circuit) (AC, 1 min) | 3.51 kVrms |
