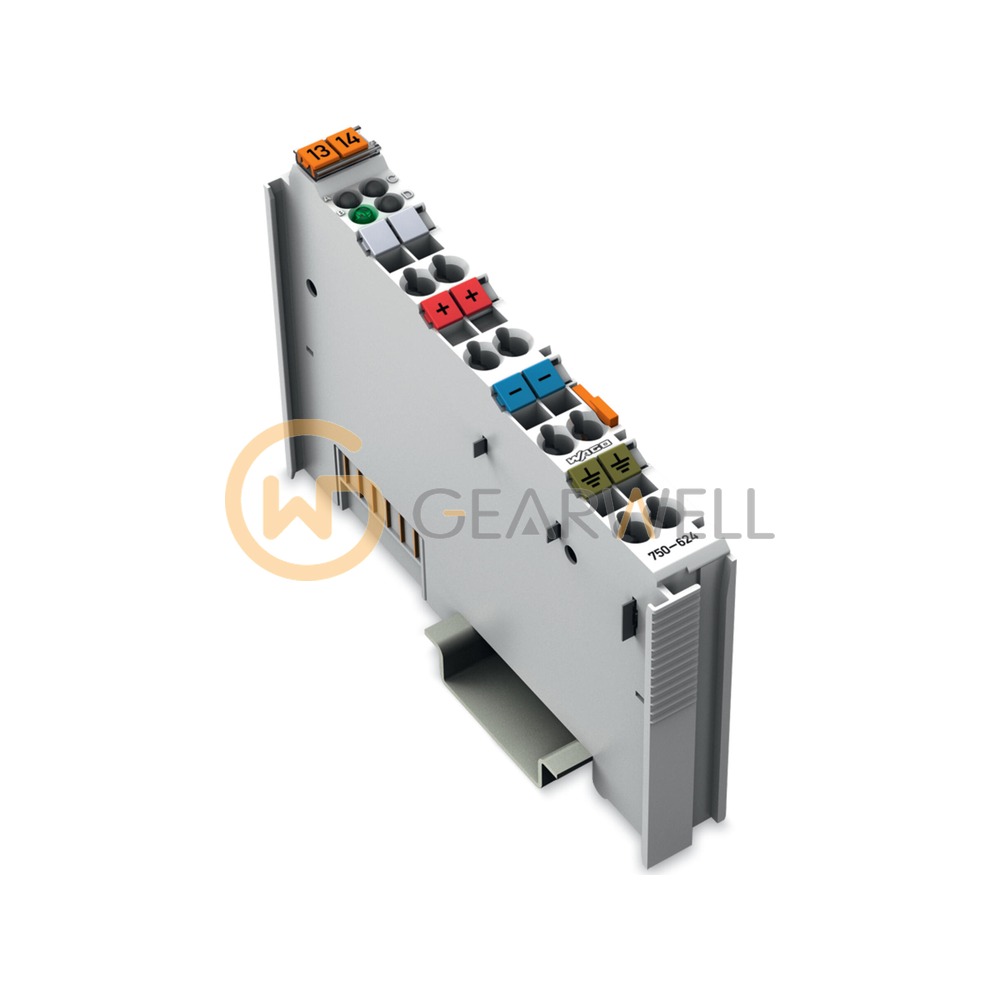

WAGO 750-624 I/O System 750 Field Supply Filter Module
- Brand
- WAGO
- Model
- 750-624
- GEARWELL SKU
- GWP-000010083
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Signal type (voltage)
- 24 VDC
- Supply voltage (field)
- 24 VDC (-25 … +30 %)
- Ambient temperature (operation)
- 0 … +55 °C
- Current carrying capacity (power jumper contacts)
- 10 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-624 is a field supply filter (surge) for 24 VDC in the WAGO I/O System 750, placed in the field supply path on the power jumper contacts. It takes the 24 VDC (-25 … +30 %) field supply via blade contact and passes it on via spring contact, with a current carrying capacity of 10 A. The standard version supports marine-certified operation together with the Ex i supply module and 750 Series PROFIsafe modules. It operates at 0 … +55 °C and measures (12 x 100 x 69.8) mm W x H x D.
Technical reference
| Product name | WAGO 750-624 I/O System 750 Field Supply Filter Module |
|---|---|
| Brand | WAGO |
| Model | 750-624 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Signal type (voltage) | 24 VDC |
| Supply voltage (field) | 24 VDC (-25 … +30 %) |
| Ambient temperature (operation) | 0 … +55 °C |
| Current carrying capacity (power jumper contacts) | 10 A |
