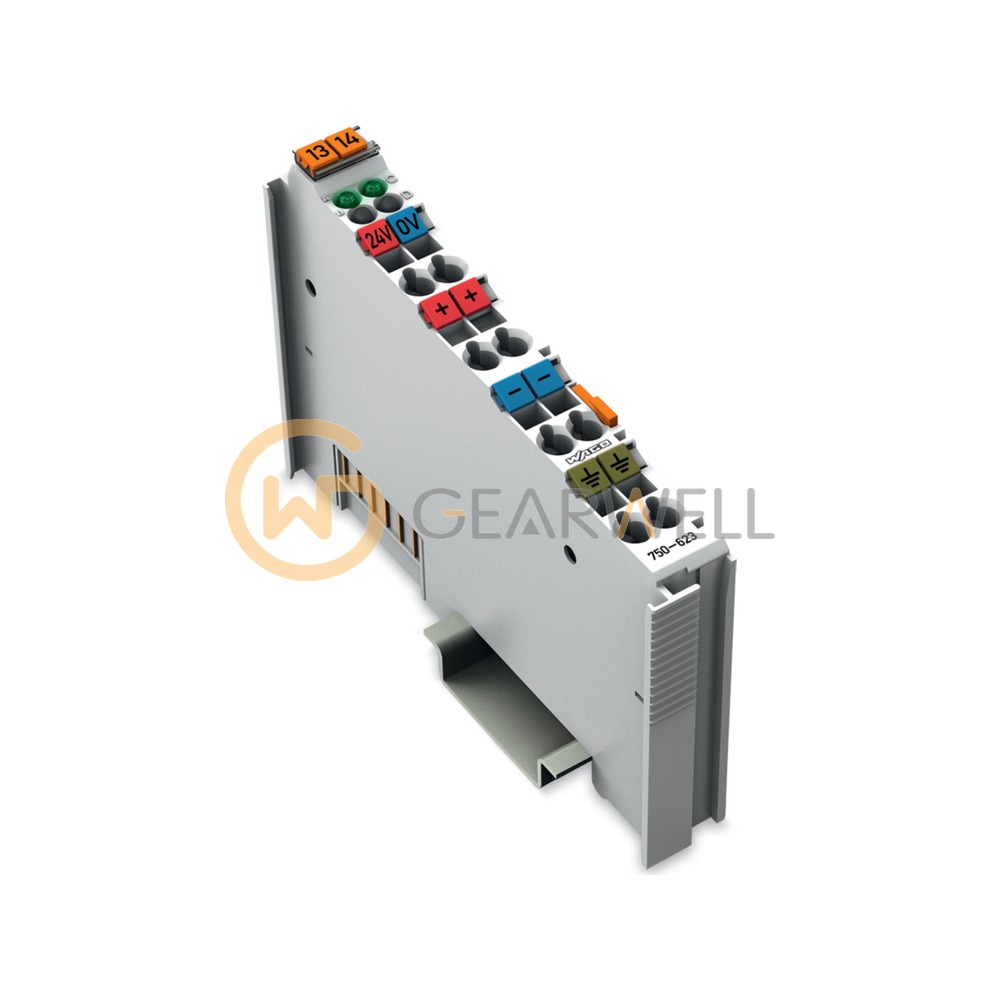

WAGO 750-623 I/O System 750 5-15 VDC Power Supply Module
- Brand
- WAGO
- Model
- 750-623
- GEARWELL SKU
- GWP-000010082
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Output current
- 0.5 A (1 A at 5 V)
- Output voltage
- 5, 8, 10, 12, 15 VDC
- Signal type (voltage)
- 24 VDC
- Supply voltage (system)
- 5 VDC; via data contacts
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-623 is a supply module for the WAGO I/O System 750 that converts a 24 VDC (-15 … +20 %) input into a field voltage set by DIP switch to 5 V, 8 V, 10 V, 12 V or 15 V for the I/O modules downstream. The input is connected via CAGE CLAMP® connection and the output is distributed over the power jumper contacts. The total current for the system supply is 500 mA, and green LEDs show the input and output voltage. It operates at 0 … +55 °C and measures (12 x 100 x 69.8) mm W x H x D.
Technical reference
| Product name | WAGO 750-623 I/O System 750 5-15 VDC Power Supply Module |
|---|---|
| Brand | WAGO |
| Model | 750-623 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Output current | 0.5 A (1 A at 5 V) |
| Output voltage | 5, 8, 10, 12, 15 VDC |
| Signal type (voltage) | 24 VDC |
| Supply voltage (system) | 5 VDC; via data contacts |
| Ambient temperature (operation) | 0 … +55 °C |
