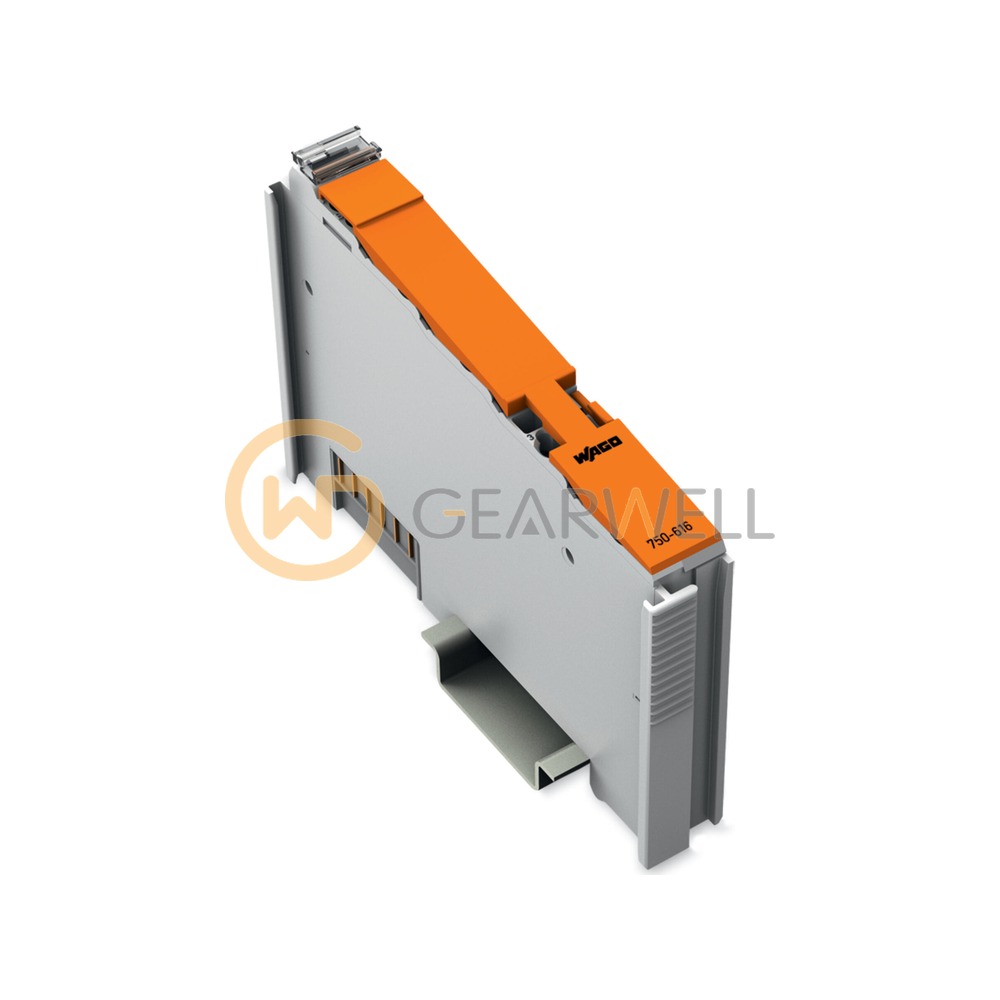

WAGO 750-616 I/O System 750 Distance Module
- Brand
- WAGO
- Model
- 750-616
- GEARWELL SKU
- GWP-000010078
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Protection type
- IP20
- Supply voltage (system)
- 5 VDC; via data contacts
- Ambient temperature (operation)
- 0 … +55 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-616 is a distance module for the WAGO I/O System 750 that visually divides a fieldbus node into sections. It has no power jumper contacts, so the I/O modules next to it need their own supply module. It is supplied with 5 VDC via the data contacts, operates at 0 … +55 °C and measures (12 x 100 x 69.8) mm W x H x D.
Technical reference
| Product name | WAGO 750-616 I/O System 750 Distance Module |
|---|---|
| Brand | WAGO |
| Model | 750-616 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Protection type | IP20 |
| Supply voltage (system) | 5 VDC; via data contacts |
| Ambient temperature (operation) | 0 … +55 °C |
