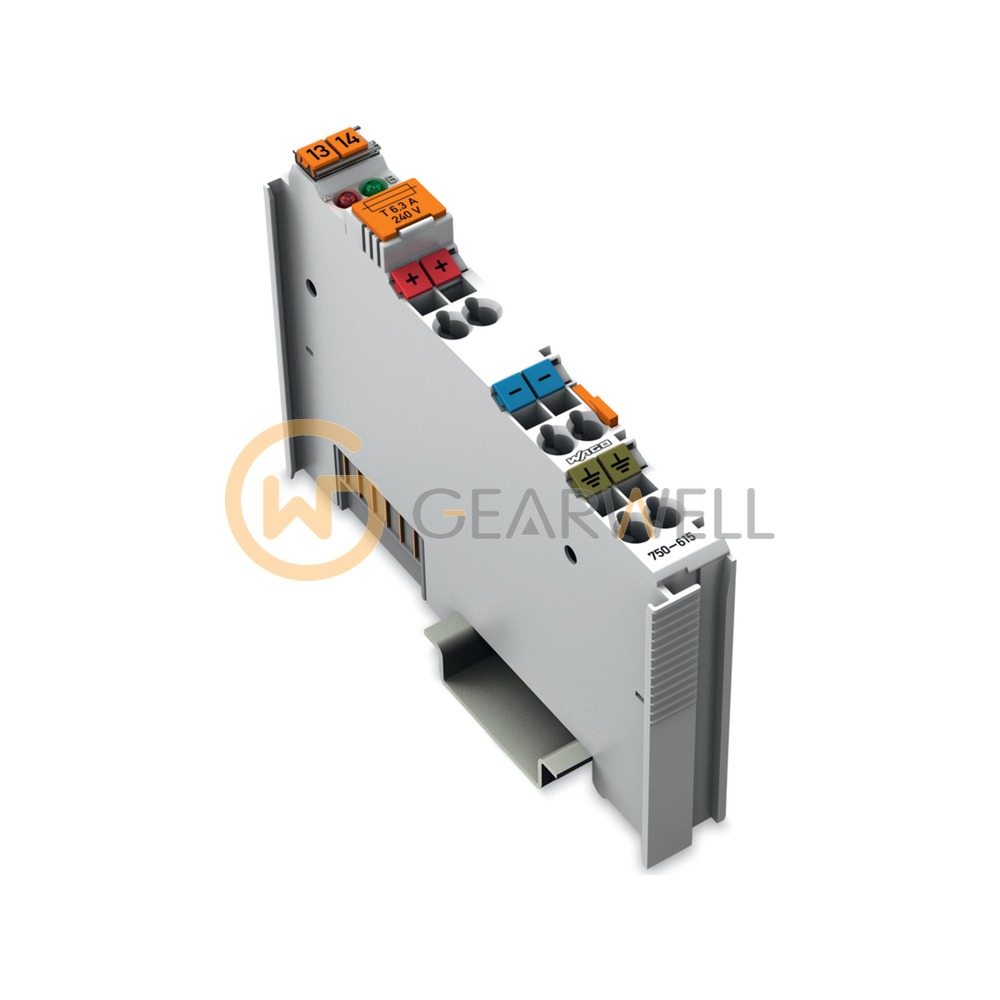

WAGO 750-615 I/O System 750 120 VAC Power Supply Module
- Brand
- WAGO
- Model
- 750-615
- GEARWELL SKU
- GWP-000010077
- Category
- PLCs & I/O
Key specifications
- Fuse
- 5 x 20; T 6.3 A (not included)
- Width
- 12 mm / 0.472 inches
- Signal type (voltage)
- 120 VAC
- Supply voltage (field)
- 120 VAC
- Supply voltage (system)
- 5 VDC; via data contacts
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-615 is a 120 VAC supply module with fuse holder for the WAGO I/O System 750, which passes the field supply to the I/O modules downstream. The 120 VAC supply is connected via CAGE CLAMP® connection and carried on the power jumper contacts at up to 6.3 A. It takes a 5 x 20 fuse T 6.3 A (not included); a red LED signals a defective fuse and a green LED the supply status. It operates at 0 … +55 °C and measures (12 x 100 x 69.8) mm W x H x D.
Technical reference
| Product name | WAGO 750-615 I/O System 750 120 VAC Power Supply Module |
|---|---|
| Brand | WAGO |
| Model | 750-615 |
| Category | PLCs & I/O |
| Fuse | 5 x 20; T 6.3 A (not included) |
| Width | 12 mm / 0.472 inches |
| Signal type (voltage) | 120 VAC |
| Supply voltage (field) | 120 VAC |
| Supply voltage (system) | 5 VDC; via data contacts |
| Ambient temperature (operation) | 0 … +55 °C |
| Current carrying capacity (power jumper contacts) | 6.3 A |
