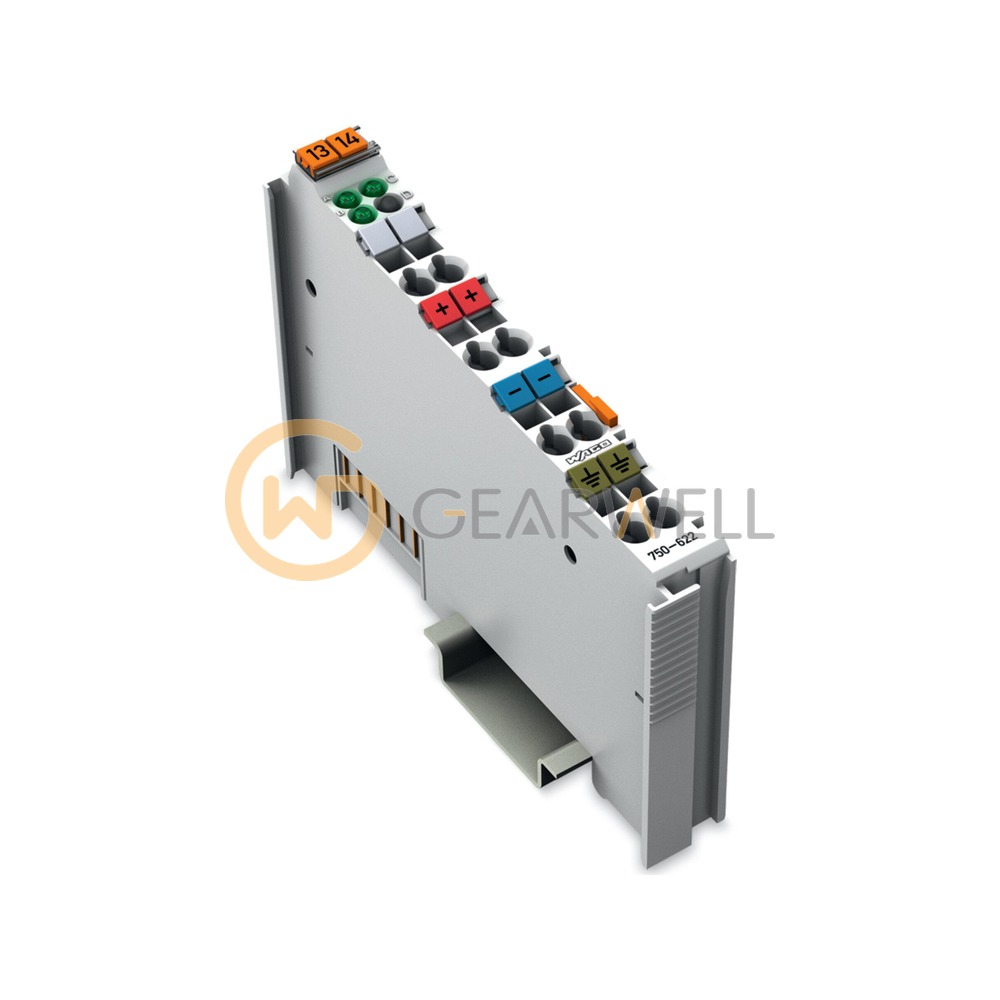

WAGO 750-622 I/O System 750 Binary Spacer Module
- Brand
- WAGO
- Model
- 750-622
- GEARWELL SKU
- GWP-000010081
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Data width
- 2, 4, 6 or 8 bits (adjustable via DIP switches)
- Operating mode
- Inputs DIP 3: OFF; Outputs DIP 3: ON
- Supply voltage (field)
- 24 VDC (-15 … +20 %)
- Ambient temperature (operation)
- 0 … +55 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-622 is a binary spacer module for the WAGO I/O System 750 that reserves bit addresses in the process image of a fieldbus node. The data width is 2, 4, 6 or 8 bits, set via DIP switches together with the input or output operating mode. It passes a 24 VDC (-15 … +20 %) field supply on the power jumper contacts, which carry up to 10 A, and draws 10 mA from the system supply; isolation is 500 V system/field. It operates at 0 … +55 °C and measures (12 x 100 x 69.8) mm W x H x D.
Technical reference
| Product name | WAGO 750-622 I/O System 750 Binary Spacer Module |
|---|---|
| Brand | WAGO |
| Model | 750-622 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Data width | 2, 4, 6 or 8 bits (adjustable via DIP switches) |
| Operating mode | Inputs DIP 3: OFF; Outputs DIP 3: ON |
| Supply voltage (field) | 24 VDC (-15 … +20 %) |
| Ambient temperature (operation) | 0 … +55 °C |
| Current carrying capacity (power jumper contacts) | 10 A |
