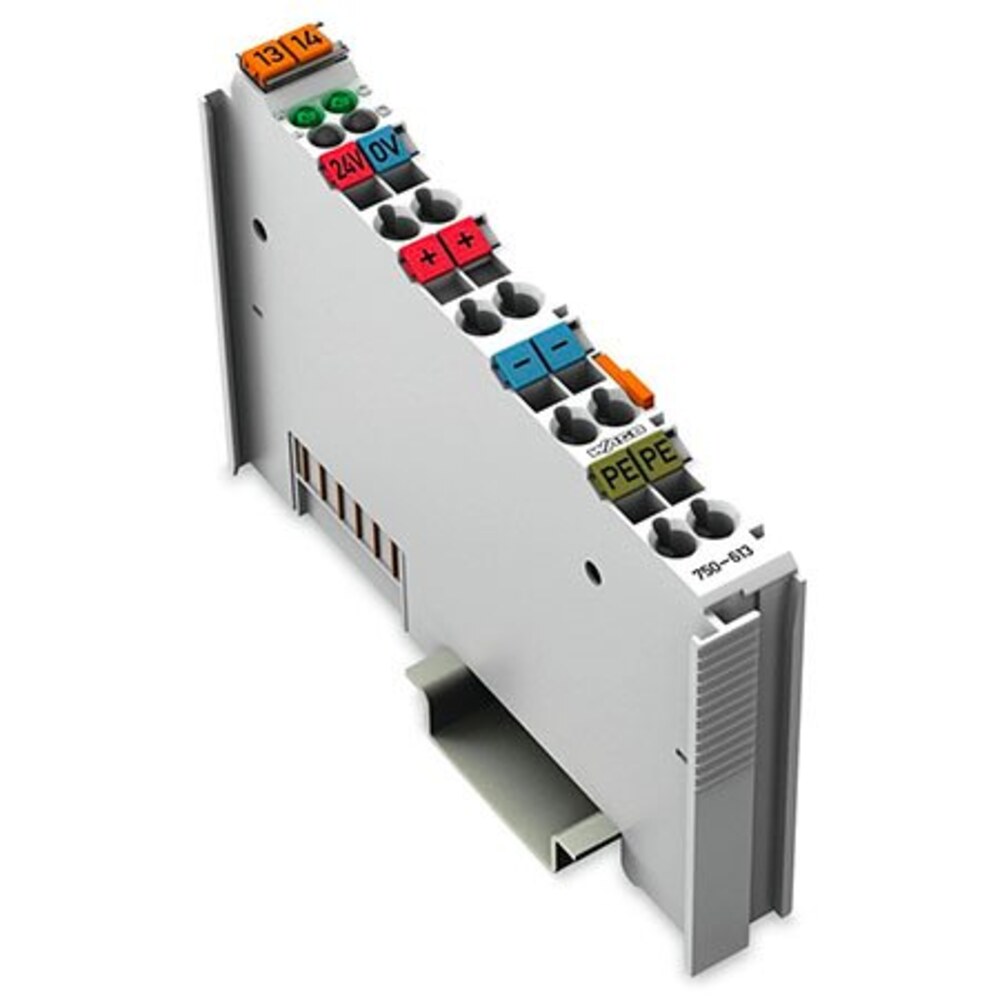

WAGO 750-613 Supply Module
- Brand
- WAGO
- Model
- 750-613
- GEARWELL SKU
- GWP-000000186
- Category
- Industrial Automation Parts
Key specifications
- Isolation
- 500 V system/field
- Signal type
- Voltage
- Signal type (voltage)
- 24 VDC
- Supply voltage (field)
- 24 VDC (-25 … +30 %); via power jumper contacts (power supply via CAGE CLAMP® connection; transmission (field-side supply voltage only) via spring contact
- Input current (typ.) at nominal load (24 V)
- 500 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-613 is a 24 VDC system power supply module for the WAGO I/O System 750, which adds system supply for large nodes and also feeds the field supply to the I/O modules downstream. Both the system and the field supply are 24 VDC, SELV/PELV (-25 … +30 %) via CAGE CLAMP® connection; it delivers a total current of 2000 mA for the system supply at a typical efficiency of 90 %, and the power jumper contacts carry up to 10 A. Isolation is 500 V system/field. It operates at 0 … +55 °C and measures (12 x 100 x 69.8) mm W x H x D.
Technical reference
| Product name | WAGO 750-613 Supply Module |
|---|---|
| Brand | WAGO |
| Model | 750-613 |
| Category | Industrial Automation Parts |
| Isolation | 500 V system/field |
| Signal type | Voltage |
| Signal type (voltage) | 24 VDC |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via CAGE CLAMP® connection; transmission (field-side supply voltage only) via spring contact |
| Input current (typ.) at nominal load (24 V) | 500 mA |
| Number of outgoing power jumper contacts | 3 |
| Current carrying capacity (power jumper contacts) | 10 A |
| Power supply efficiency (typ.) at nominal load (24 V) | 90 % |
