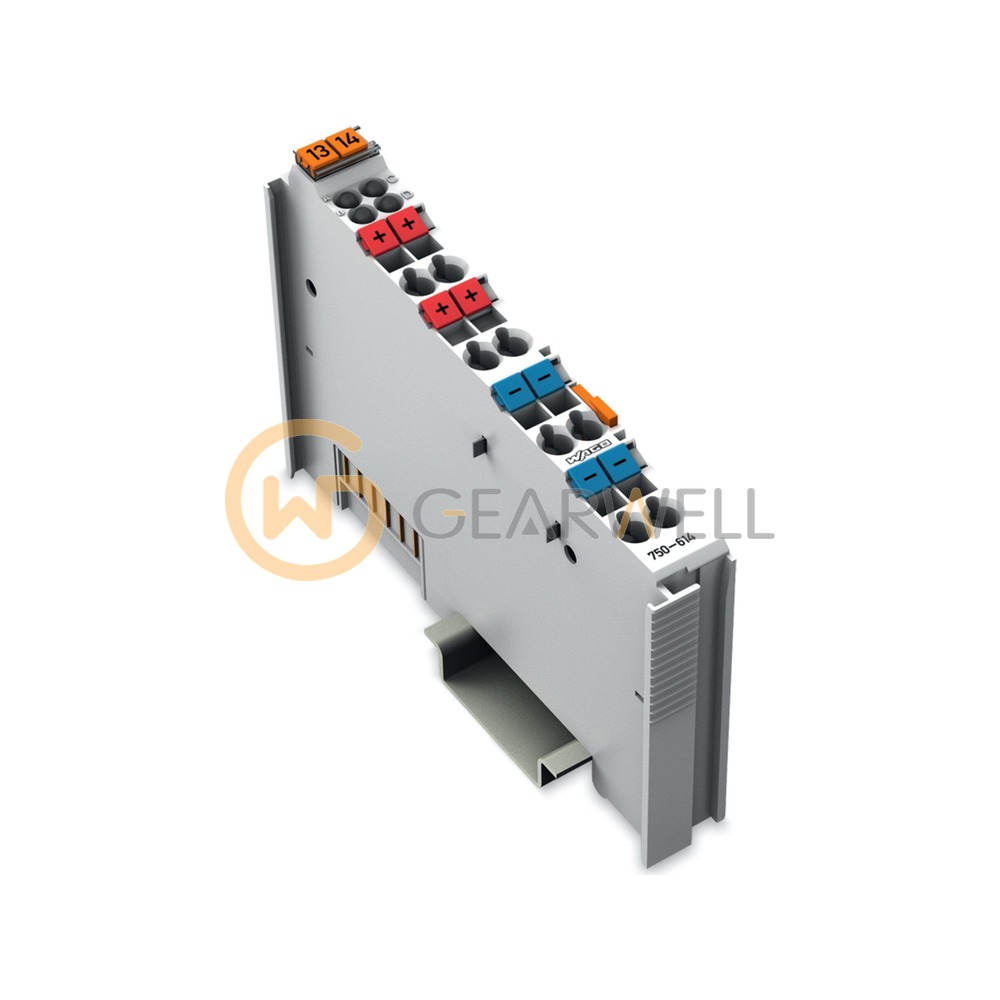

WAGO 750-614 I/O System 750 Potential Distribution Module
- Brand
- WAGO
- Model
- 750-614
- GEARWELL SKU
- GWP-000010076
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Signal type (voltage)
- 0 … 230 VAC/DC
- Supply voltage (field)
- 230 VAC/DC
- Supply voltage (system)
- 5 VDC; via data contacts
- Ambient temperature (operation)
- 0 … +55 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-614 is a potential distribution module for the WAGO I/O System 750 that provides additional connection points for the field potential carried on the power jumper contacts. It is rated for 230 VAC/DC on the power jumper contacts, taken via blade contact, with a current carrying capacity of 10 A. The standard version has a fixed connector, operates at 0 … +55 °C and measures (12 x 100 x 69.8) mm W x H x D.
Technical reference
| Product name | WAGO 750-614 I/O System 750 Potential Distribution Module |
|---|---|
| Brand | WAGO |
| Model | 750-614 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Signal type (voltage) | 0 … 230 VAC/DC |
| Supply voltage (field) | 230 VAC/DC |
| Supply voltage (system) | 5 VDC; via data contacts |
| Ambient temperature (operation) | 0 … +55 °C |
| Current carrying capacity (power jumper contacts) | 10 A |
