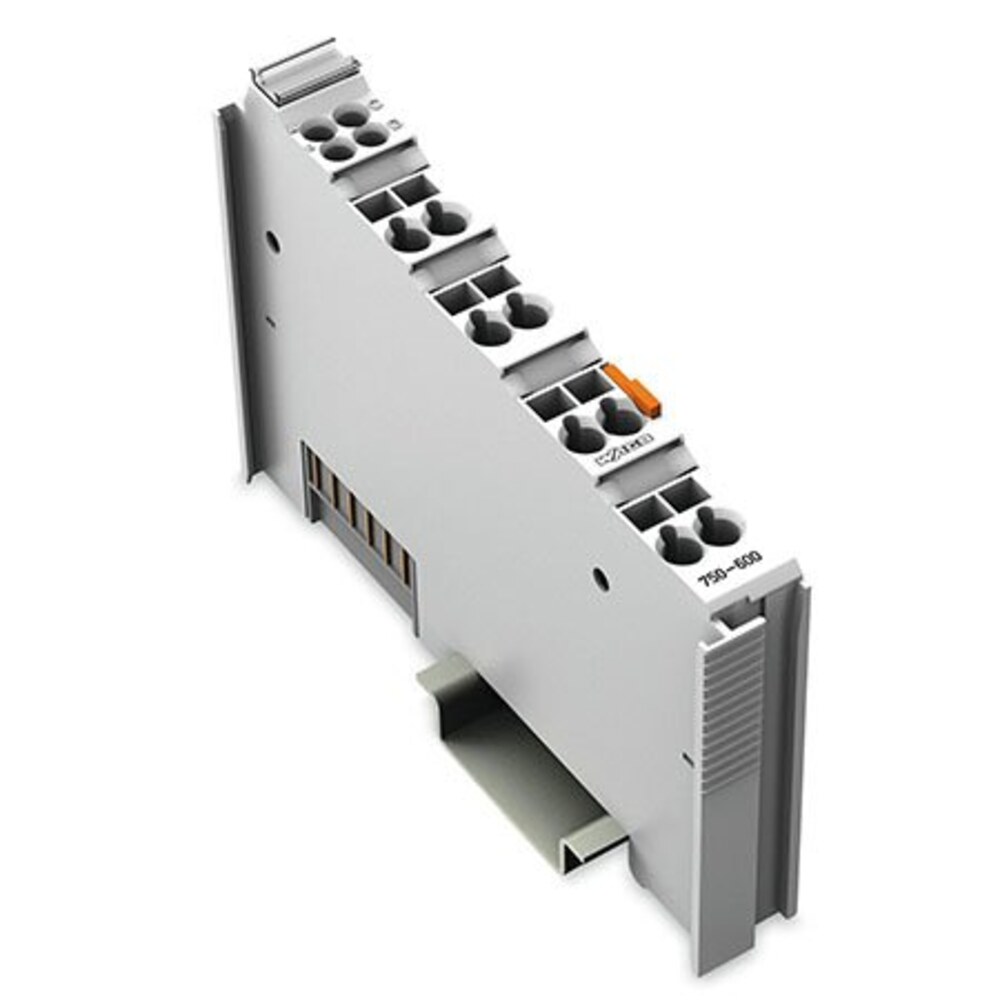

WAGO 750-600 End Module
- Brand
- WAGO
- Model
- 750-600
- GEARWELL SKU
- GWP-000002379
- Category
- Industrial Automation Parts
Key specifications
- Depth
- 69.8 mm / 2.748 inches
- Width
- 12 mm / 0.472 inches
- Height
- 100 mm / 3.937 inches
- Weight
- 32 g
- Mounting type
- DIN-35 rail
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-600 is the end module of the WAGO I/O System 750, which must be snapped onto the end of every fieldbus node. It completes the internal data bus so that data transmission works correctly. The standard version operates at 0 … +55 °C and measures (12 x 100 x 69.8) mm W x H x D.
Technical reference
| Product name | WAGO 750-600 End Module |
|---|---|
| Brand | WAGO |
| Model | 750-600 |
| Category | Industrial Automation Parts |
| Depth | 69.8 mm / 2.748 inches |
| Width | 12 mm / 0.472 inches |
| Height | 100 mm / 3.937 inches |
| Weight | 32 g |
| Mounting type | DIN-35 rail |
| Protection type | IP20 |
| Ambient temperature (operation) | 0 … +55 °C |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
