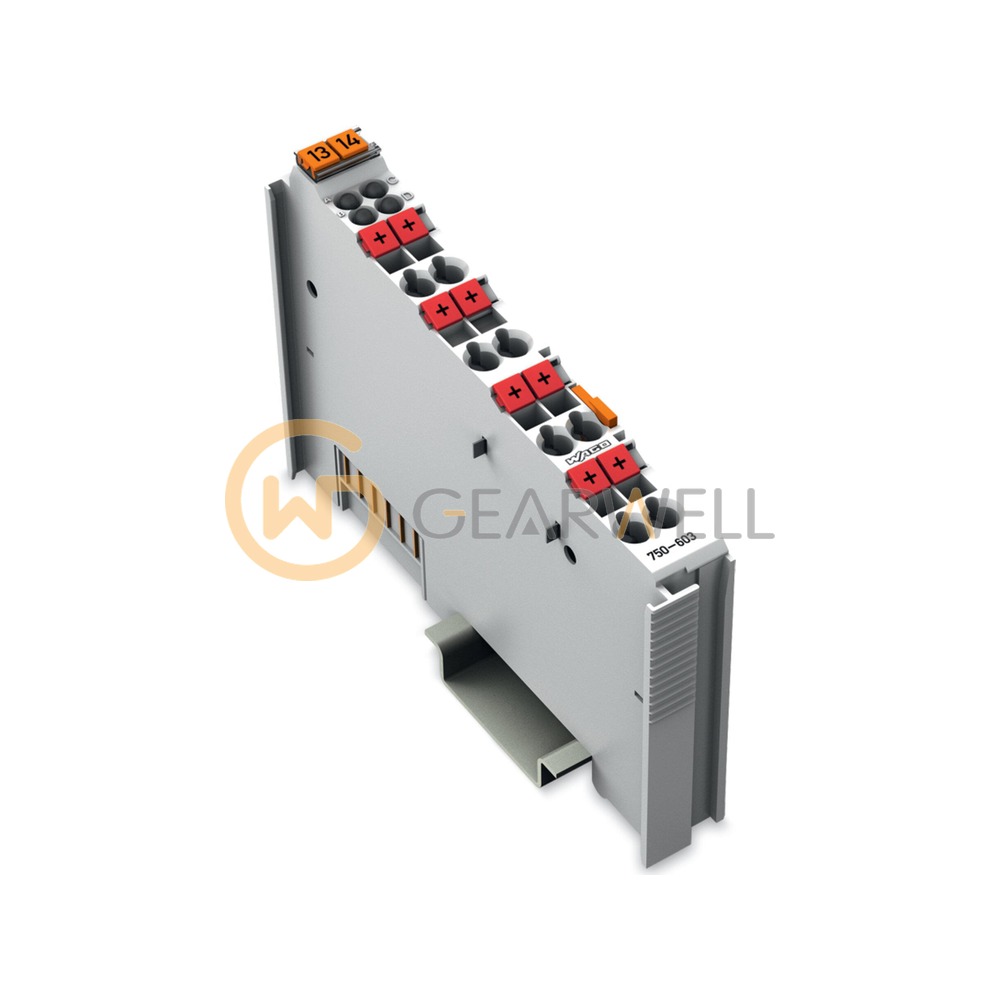

WAGO 750-603 I/O System 750 Potential Distribution Module
- Brand
- WAGO
- Model
- 750-603
- GEARWELL SKU
- GWP-000010069
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Protection type
- IP20
- Signal type (voltage)
- 24 VDC
- Supply voltage (field)
- 24 VDC (-25 … +30 %)
- Supply voltage (system)
- 5 VDC; via data contacts
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-603 is a potential distribution module for the WAGO I/O System 750 that provides eight connection points for the 24 V potential. It takes the 24 VDC (-25 … +30 %) field supply from the power jumper contacts via blade contact and passes it on via spring contact, with a current carrying capacity of 10 A. The standard version has a fixed connector, operates at 0 … +55 °C and measures (12 x 100 x 69.8) mm W x H x D.
Technical reference
| Product name | WAGO 750-603 I/O System 750 Potential Distribution Module |
|---|---|
| Brand | WAGO |
| Model | 750-603 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Protection type | IP20 |
| Signal type (voltage) | 24 VDC |
| Supply voltage (field) | 24 VDC (-25 … +30 %) |
| Supply voltage (system) | 5 VDC; via data contacts |
| Ambient temperature (operation) | 0 … +55 °C |
| Current carrying capacity (power jumper contacts) | 10 A |
