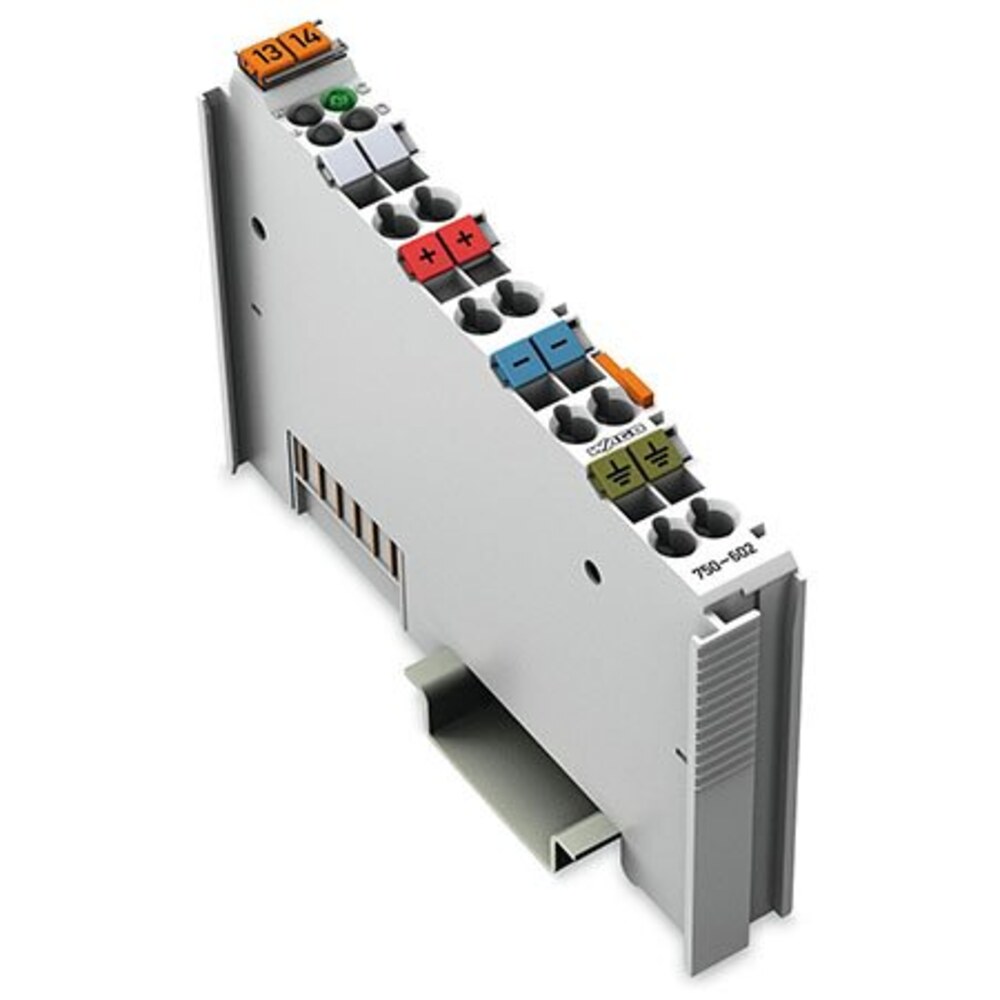

WAGO 750-602 Supply Module
- Brand
- WAGO
- Model
- 750-602
- GEARWELL SKU
- GWP-000000923
- Category
- Industrial Automation Parts
Key specifications
- Signal type
- Voltage
- Connection type
- Field supply
- Signal type (voltage)
- 24 VDC
- Supply voltage (field)
- 24 VDC, SELV/PELV (-25 … +30 %); via power jumper contacts (supply via CAGE CLAMP® connection; distribution via spring contact); External fuse required: 10 A slow-blow
- Supply voltage (system)
- 5 VDC; via data contacts
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-602 is a 24 VDC supply module for the WAGO I/O System 750 that provides the field supply to the I/O modules downstream of it. The 24 VDC, SELV/PELV (-25 … +30 %) supply is connected via CAGE CLAMP® connection and distributed over the power jumper contacts, which carry up to 10 A; an external 10 A slow-blow fuse is required. A green LED shows the status of the power jumper contacts. The standard version has a fixed connector, operates at 0 … +55 °C and measures (12 x 100 x 69.8) mm W x H x D.
Technical reference
| Product name | WAGO 750-602 Supply Module |
|---|---|
| Brand | WAGO |
| Model | 750-602 |
| Category | Industrial Automation Parts |
| Signal type | Voltage |
| Connection type | Field supply |
| Signal type (voltage) | 24 VDC |
| Supply voltage (field) | 24 VDC, SELV/PELV (-25 … +30 %); via power jumper contacts (supply via CAGE CLAMP® connection; distribution via spring contact); External fuse required: 10 A slow-blow |
| Supply voltage (system) | 5 VDC; via data contacts |
| Ambient temperature (operation) | 0 … +55 °C |
| Number of outgoing power jumper contacts | 3 |
| Current carrying capacity (power jumper contacts) | 10 A |
