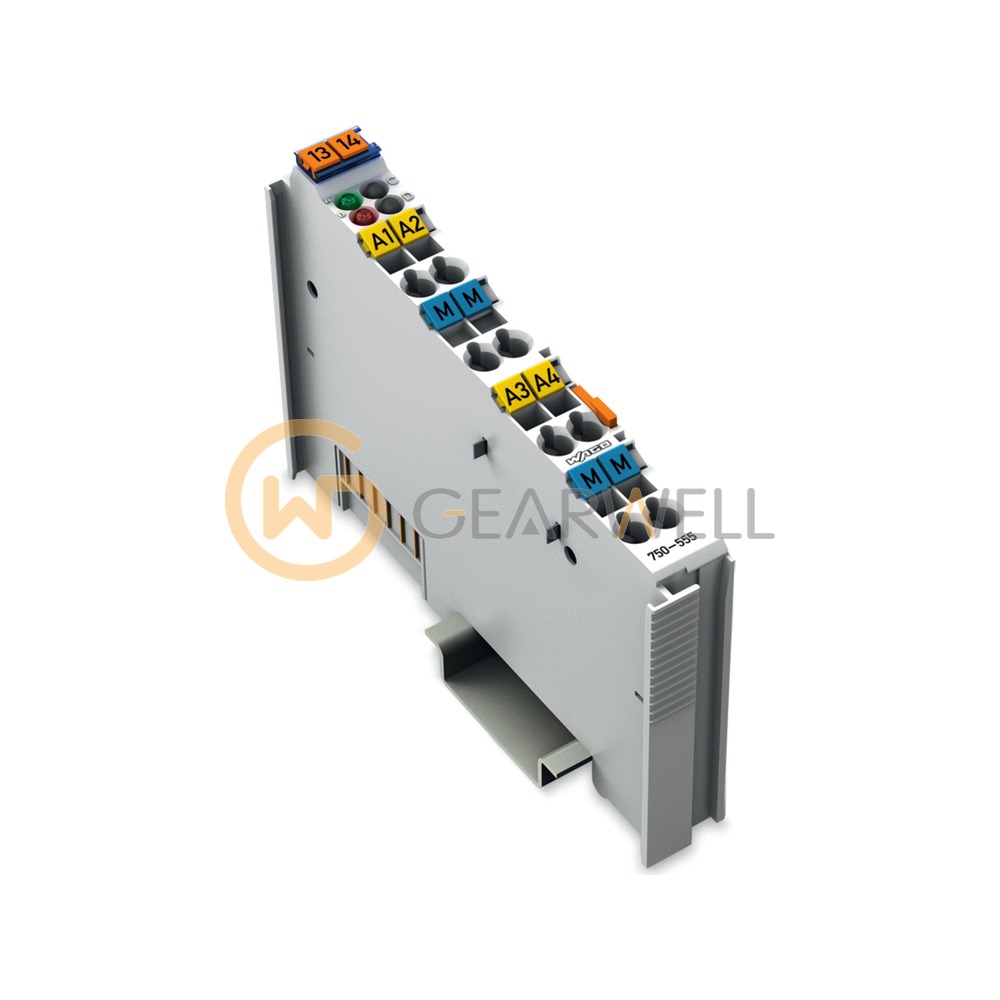

WAGO 750-555 I/O System 750 4-Channel Analog Output Module
- Brand
- WAGO
- Model
- 750-555
- GEARWELL SKU
- GWP-000010065
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Isolation
- 500 V system/field
- Resolution [bit]
- 12 Bit
- Signal type (current)
- 4 … 20 mADC
- Supply voltage (field)
- 24 VDC (-25 … +30 %)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-555 is a 4-channel analog output module of the WAGO I/O System 750 for 4 … 20 mA current signals. It resolves 12 bits with a typical conversion time of 10 ms, works with a load impedance of either 0 … 300 Ω or 300 … 600 Ω (the same for all channels) and has an output error of 0.1 % of the upper-range value at 25 °C. Actuators connect as 4 x (2-wire) on the fixed connector, the 24 VDC field supply is taken from the power jumper contacts and the system-side current consumption is 60 mA. Isolation is 500 V system/field, the operating temperature is 0 … +55 °C and the size is (12 x 100 x 69.8) mm (W x H x D).
Technical reference
| Product name | WAGO 750-555 I/O System 750 4-Channel Analog Output Module |
|---|---|
| Brand | WAGO |
| Model | 750-555 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Isolation | 500 V system/field |
| Resolution [bit] | 12 Bit |
| Signal type (current) | 4 … 20 mADC |
| Supply voltage (field) | 24 VDC (-25 … +30 %) |
| Supply voltage (system) | 5 VDC; via data contacts |
| Number of analog outputs | 4 |
| Ambient temperature (operation) | 0 … +55 °C |
