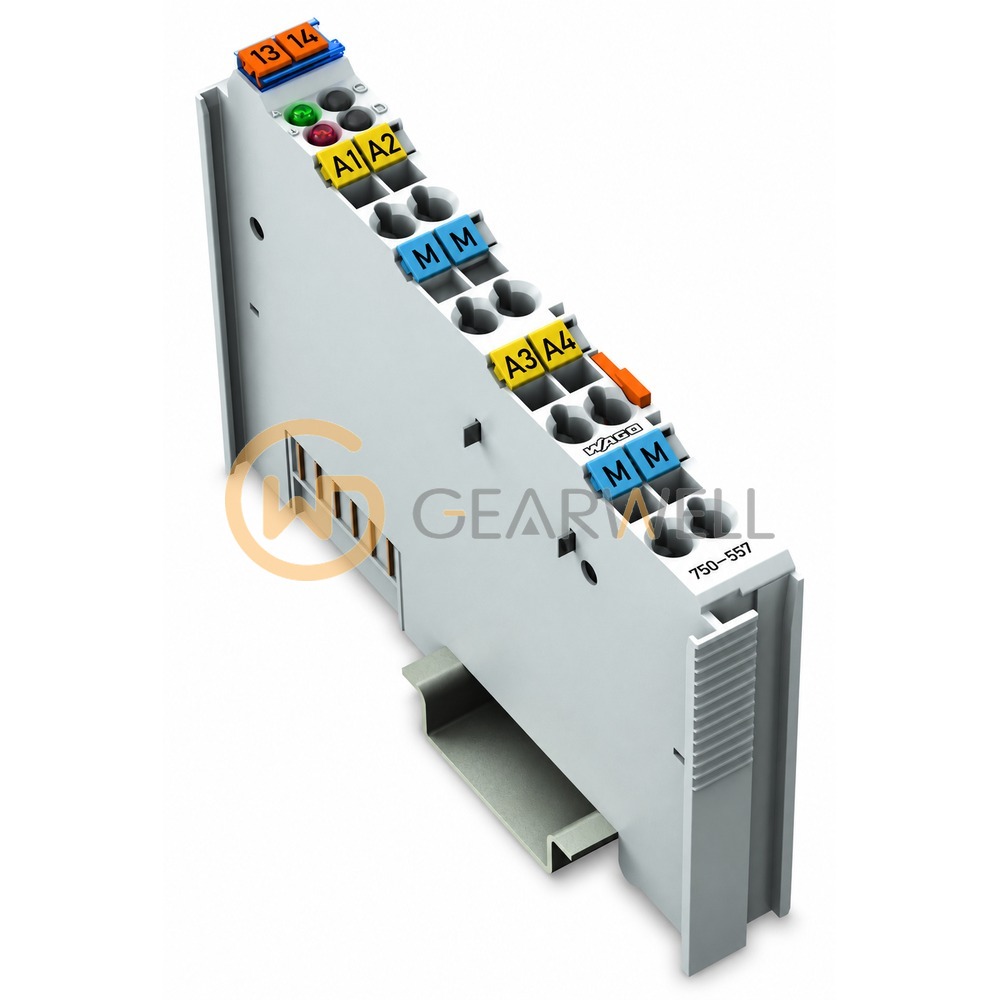

WAGO 750-557 4-Channel Analog Output Module

Product overview

The WAGO 750-557 is a 4-channel analog output module of the WAGO I/O System 750 for -10 … +10 VDC voltage signals. It resolves 12 bits with a typical conversion time of 10 ms, needs a load impedance of ≥ 5 kΩ and has an output error of 0.1 % of the upper-range value at 25 °C. Actuators connect as 4 x (2-wire) on the fixed connector, the 24 VDC field supply comes via the power jumper contacts and the module draws 125 mA from the system supply. It has 500 V system/field isolation, operates at 0 … +55 °C and measures (12 x 100 x 69.8) mm (W x H x D).
