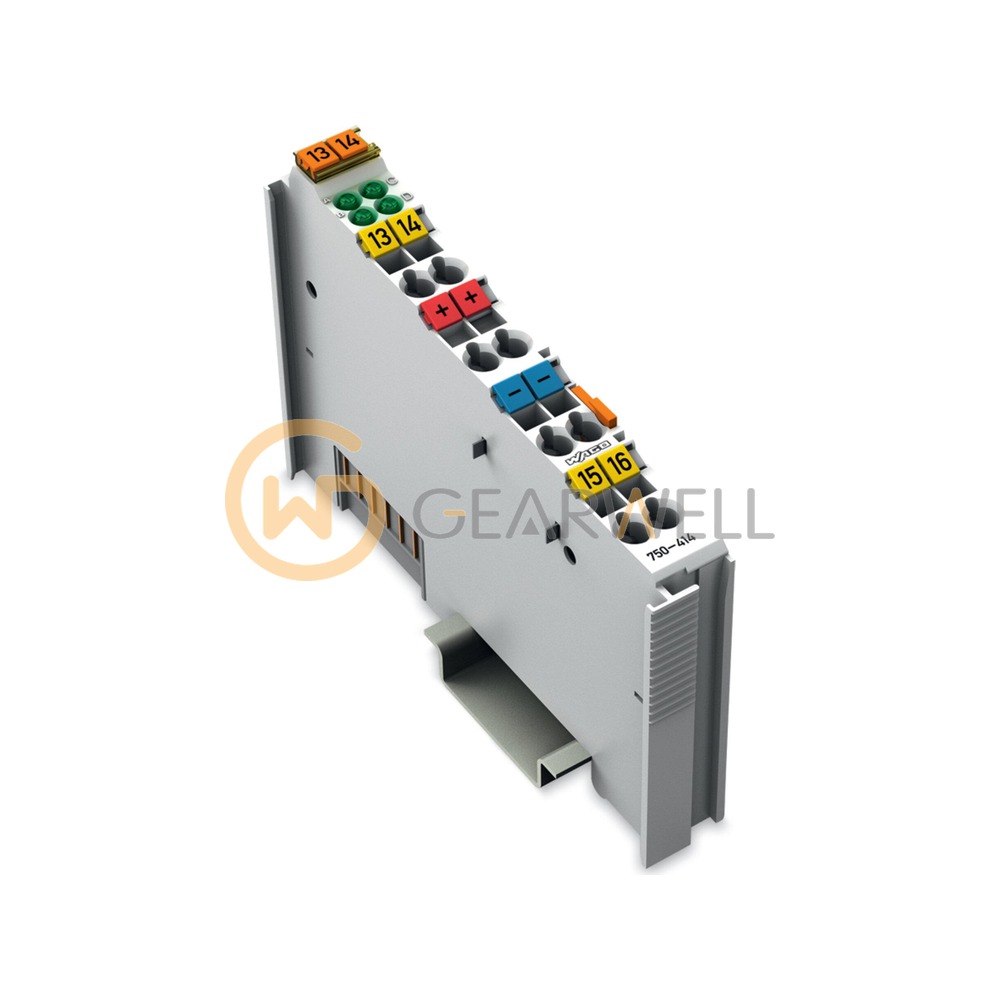

WAGO 750-414 4-Channel 5 VDC Digital Input Module
- Brand
- WAGO
- Model
- 750-414
- GEARWELL SKU
- GWP-000006740
- Category
- PLCs & I/O
Key specifications
- Input voltage
- 5 V DC
- Digital inputs
- 4
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-414 is a 4-channel digital input module of the WAGO I/O System 750 for 5 VDC signals with a 0.2 ms input filter and high-side switching. Signal (0) is 0 … 0.8 VDC, signal (1) is 2.4 … 5 VDC, and the typical input current for signal (1) is 0.05 mA. Sensors connect in 2-wire or 3-wire technology; the 5 VDC field supply comes via the power jumper contacts and needs an additional supply module, and the system-side current consumption is 5 mA. Isolation is 500 V system/field, the operating temperature is 0 … +55 °C and the dimensions are (12 x 100 x 69.8) mm (W x H x D).
Technical reference
| Product name | WAGO 750-414 4-Channel 5 VDC Digital Input Module |
|---|---|
| Brand | WAGO |
| Model | 750-414 |
| Category | PLCs & I/O |
| Input voltage | 5 V DC |
| Digital inputs | 4 |
