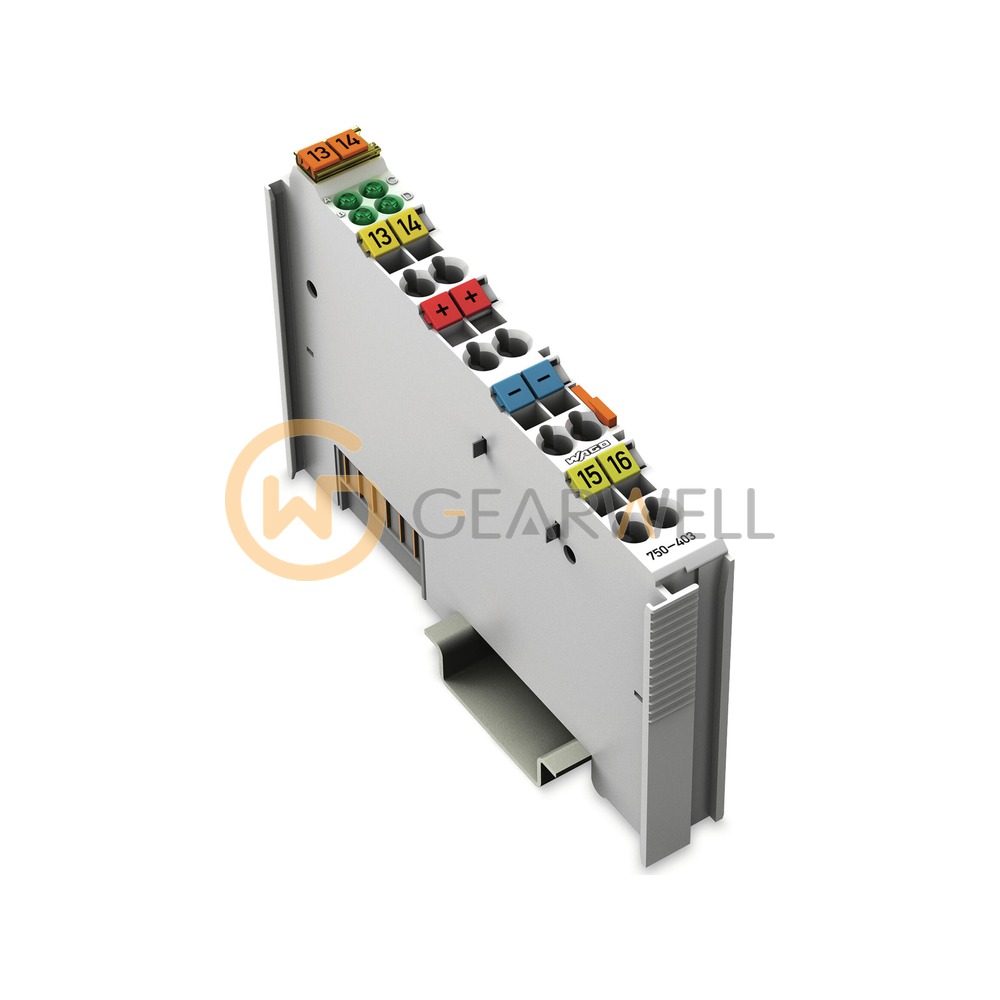

WAGO 750-403 I/O System 750 4-Channel Digital Input Module
- Brand
- WAGO
- Model
- 750-403
- GEARWELL SKU
- GWP-000009958
- Category
- PLCs & I/O
Key specifications
- Width
- 12 mm / 0.472 inches
- Input filter
- 0.2 ms
- Signal type (voltage)
- 24 VDC
- Supply voltage (field)
- 24 VDC (-25 … +30 %)
- Supply voltage (system)
- 5 VDC; via data contacts
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-403 is a 4-channel digital input module of the WAGO I/O System 750 for 24 VDC signals with a fast 0.2 ms input filter and high-side switching. Signal (0) is −3 … +5 VDC, signal (1) is 15 … 30 VDC, and the typical input current for signal (1) is 4.5 mA. Sensors connect in 2-wire or 3-wire technology on the fixed connector, the field side is supplied with 24 VDC via the power jumper contacts and the module takes 7.5 mA from the system supply. It has 500 V system/field isolation, operates at 0 … +55 °C and measures (12 x 100 x 69.8) mm (W x H x D).
Technical reference
| Product name | WAGO 750-403 I/O System 750 4-Channel Digital Input Module |
|---|---|
| Brand | WAGO |
| Model | 750-403 |
| Category | PLCs & I/O |
| Width | 12 mm / 0.472 inches |
| Input filter | 0.2 ms |
| Signal type (voltage) | 24 VDC |
| Supply voltage (field) | 24 VDC (-25 … +30 %) |
| Supply voltage (system) | 5 VDC; via data contacts |
| Number of digital inputs | 4 |
| Ambient temperature (operation) | 0 … +55 °C |
| Current carrying capacity (power jumper contacts) | 10 A |
