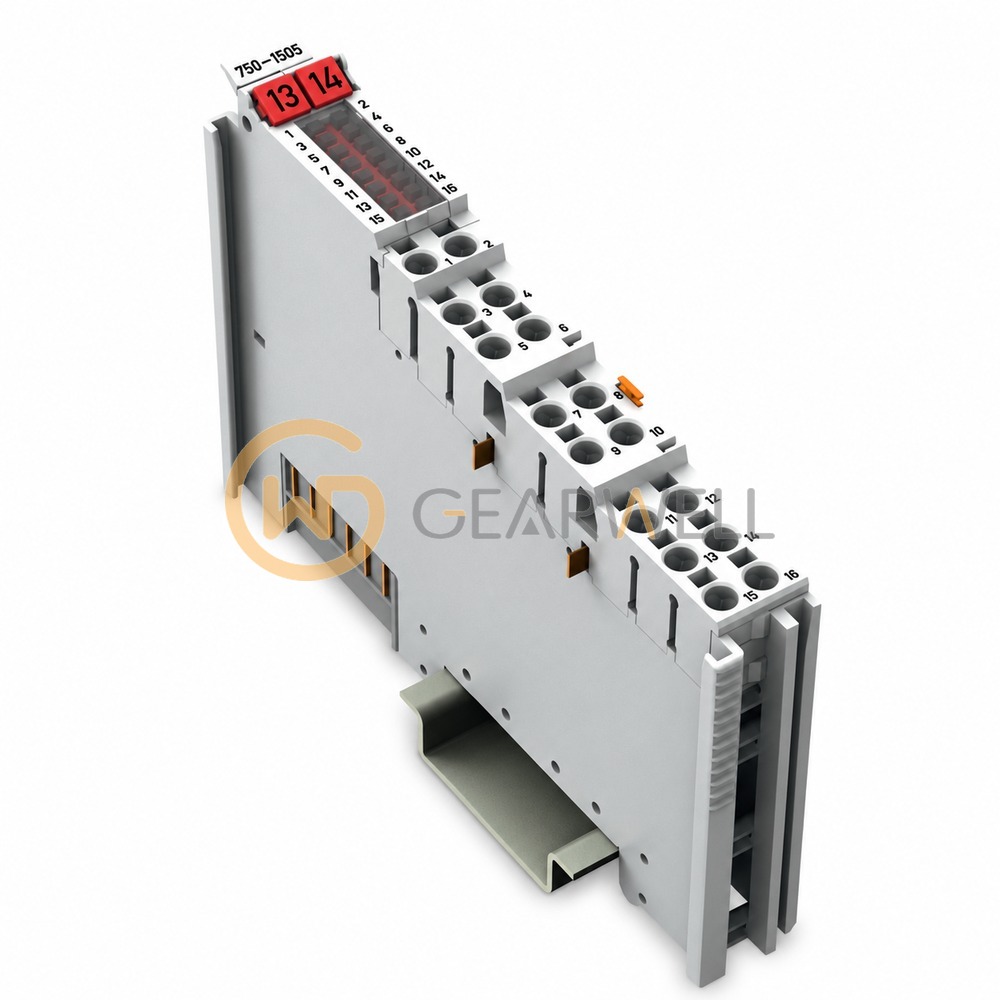

WAGO 750-1505 16-Channel Digital Output Module

Product overview

The WAGO 750-1505 is a 16-channel digital output module of the WAGO I/O System 750 that switches 24 VDC loads low-side with 0.5 A per channel. The outputs are short-circuit-protected, suit resistive, inductive and lamp loads, and switch at up to 1 kHz. Actuators connect as 16 x (1-wire) on the fixed 16-connector front, the 24 VDC field supply comes via the power jumper contacts, and the module draws 40 mA from the system supply. It has 500 V system/field isolation, operates at 0 … +55 °C and measures (12 x 100 x 69) mm (W x H x D).
