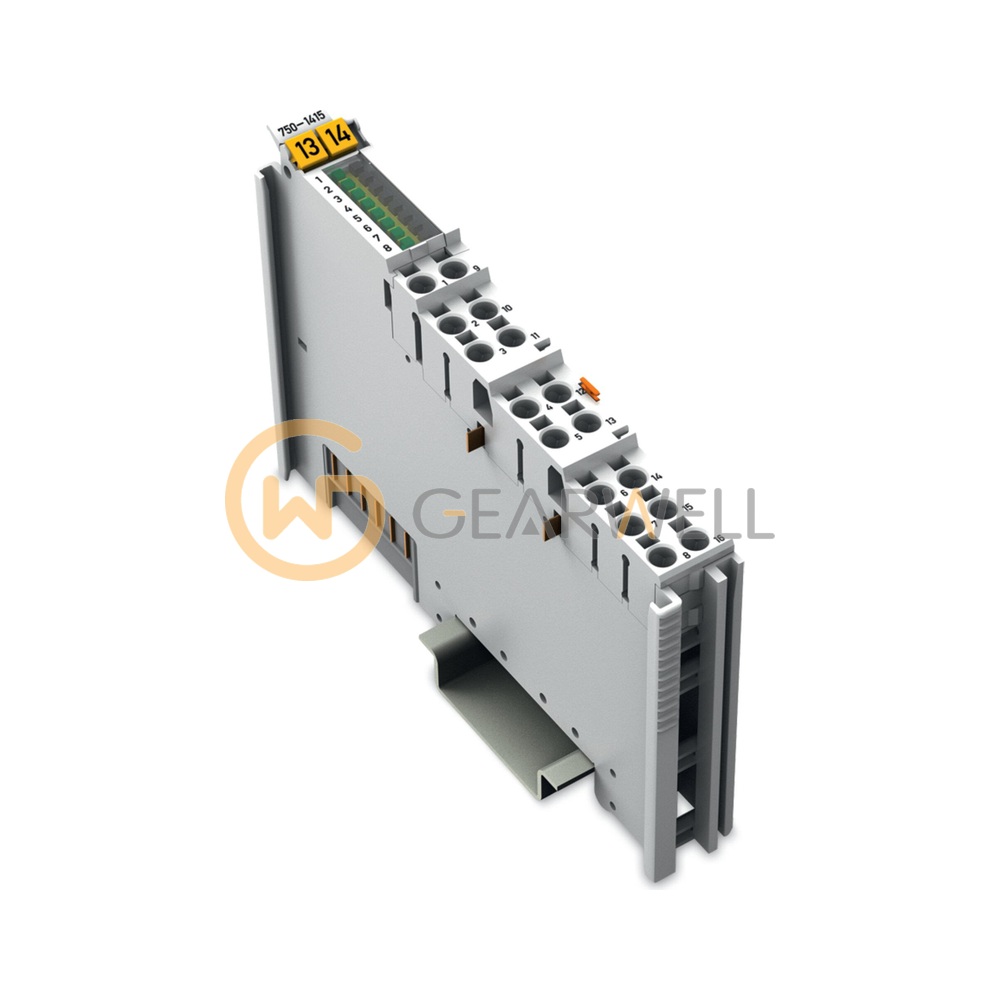

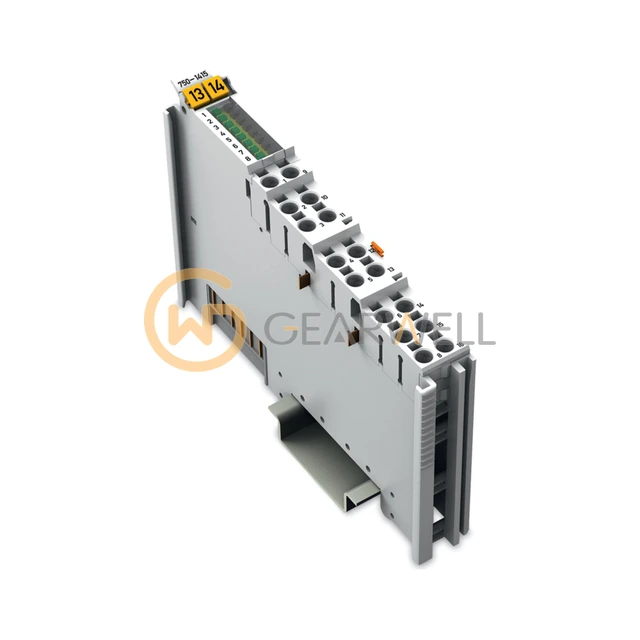

WAGO 750-1415 8-Channel 24 V DC Digital Input Module

Product overview

The WAGO 750-1415 is an 8-channel digital input module of the WAGO I/O System 750 for 24 VDC signals, with a 3 ms input filter, Type 3 input characteristic and high-side switching. Signal (0) is −3 … +5 VDC, signal (1) is 11 … 30 VDC, and the typical input current for signal (1) is 4.5 mA per channel. Sensors connect as 8 x (2-wire) on the fixed 16-connector front, the field supply of 24 VDC comes via the power jumper contacts and the system-side current consumption is 6 mA. Isolation is 500 V system/field, the operating temperature is 0 … +55 °C and the size is (12 x 100 x 69) mm (W x H x D).
