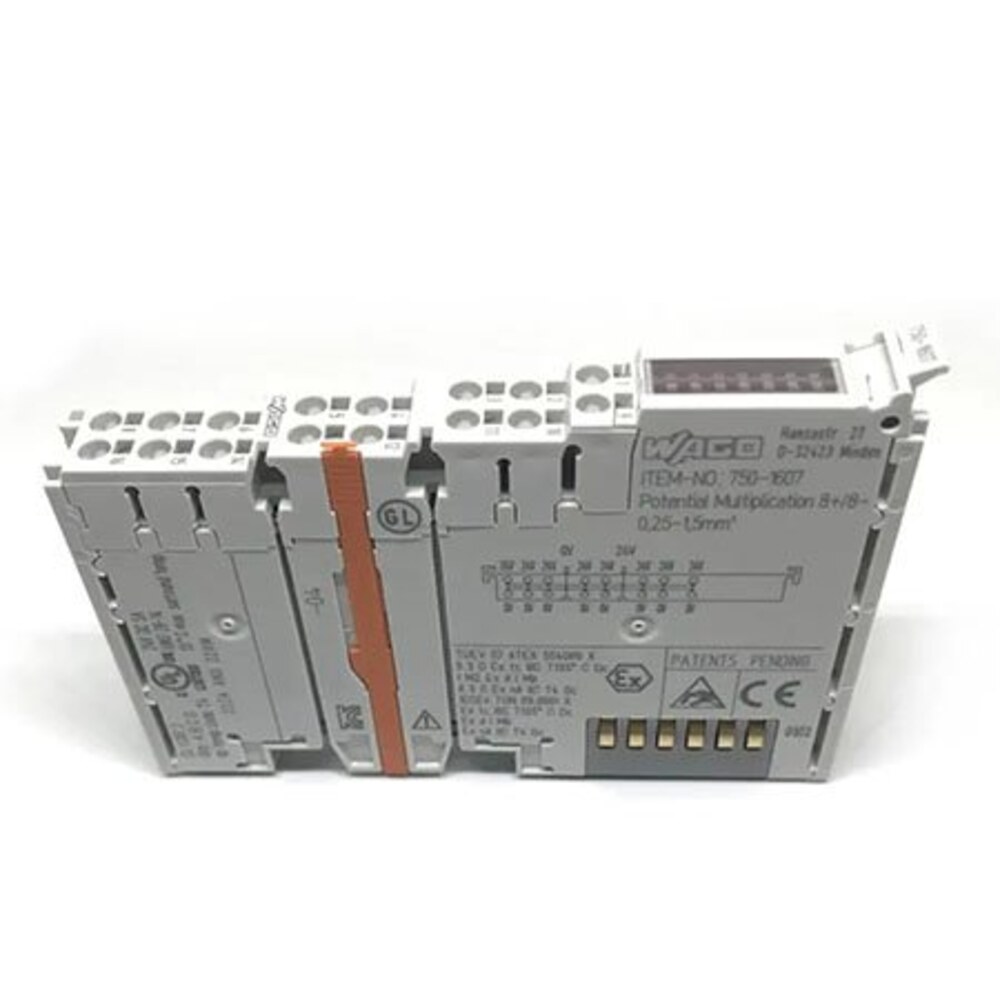

WAGO 750-1607 Connection Module
- Brand
- WAGO
- Model
- 750-1607
- GEARWELL SKU
- GWP-000001316
- Category
- Industrial Automation Parts
Key specifications
- Signal type
- Voltage
- Signal type (voltage)
- 24 VDC
- Supply voltage (field)
- 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact)
- Supply voltage (system)
- 5 VDC; via data contacts
- Ambient temperature (operation)
- 0 … +55 °C
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-1607 is a potential distribution module for the WAGO I/O System 750 with 16 connectors, eight for the 24 V potential and eight for 0 V. It works with the 24 VDC (-25 … +30 %) field supply taken from the power jumper contacts via blade contact, with a current carrying capacity of 10 A. It has a fixed connector, operates at 0 … +55 °C and measures (12 x 100 x 69) mm W x H x D.
Technical reference
| Product name | WAGO 750-1607 Connection Module |
|---|---|
| Brand | WAGO |
| Model | 750-1607 |
| Category | Industrial Automation Parts |
| Signal type | Voltage |
| Signal type (voltage) | 24 VDC |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Supply voltage (system) | 5 VDC; via data contacts |
| Ambient temperature (operation) | 0 … +55 °C |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
| Current carrying capacity (power jumper contacts) | 10 A |
