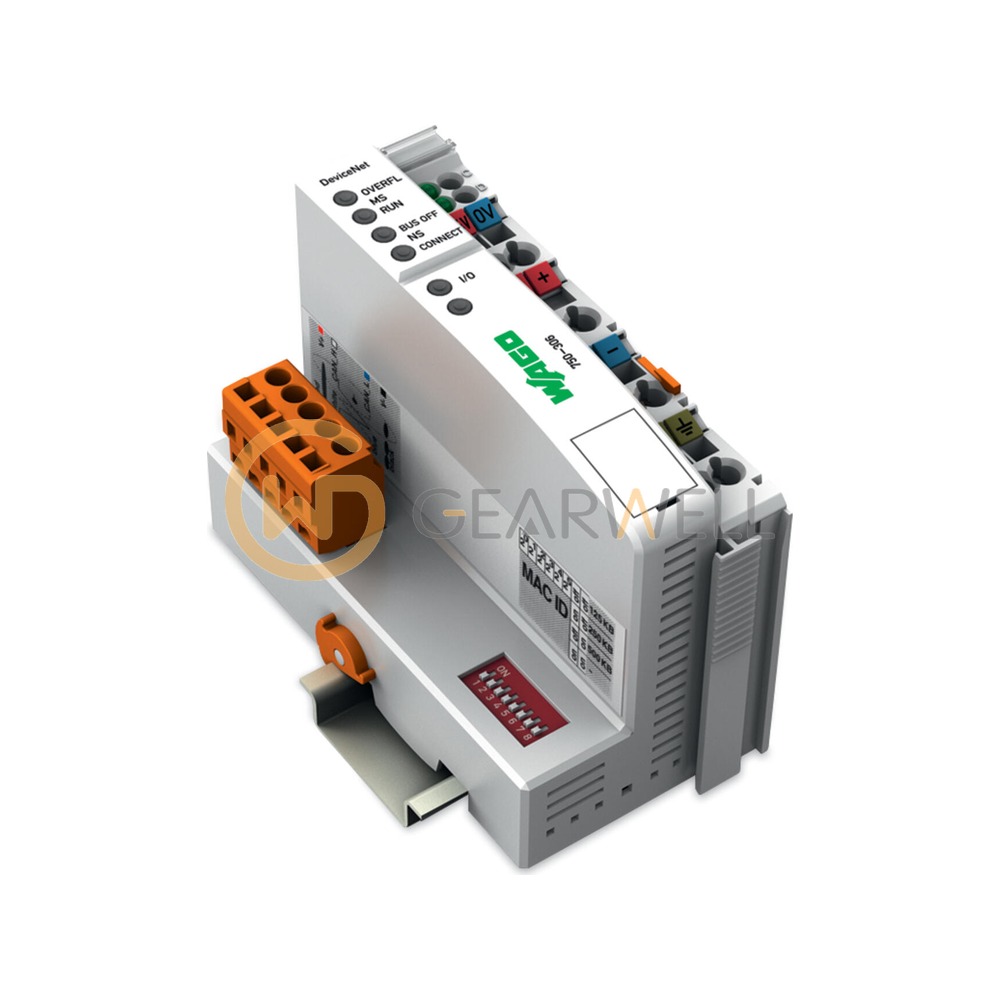

WAGO 750-306 I/O System 750 DeviceNet Fieldbus Coupler
- Brand
- WAGO
- Model
- 750-306
- GEARWELL SKU
- GWP-000009956
- Category
- PLCs & I/O
Key specifications
- Width
- 50.5 mm / 1.988 inches
- Communications
- DeviceNet
- Transmission rate
- 500 kBd (125 kBd, 250 kBd, 500 kBd)
- Number of I/O points
- 6,000
- Supply voltage (field)
- 24 VDC, SELV/PELV (-25 … +30 %)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-306 is a DeviceNet fieldbus coupler for the WAGO I/O System 750. The fieldbus connects through a 5-pole male connector at 125 kBd, 250 kBd or 500 kBd, with a bus segment length of up to 500 m, up to 64 modules per node and a process image of up to 512 bytes/512 bytes. It takes a 24 VDC system supply via CAGE CLAMP® connection and passes a 24 VDC field supply to the power jumper contacts; the total current for the system supply is 1650 mA. It operates at 0 … +55 °C and measures (50.5 x 100 x 71.1) mm W x H x D.
Technical reference
| Product name | WAGO 750-306 I/O System 750 DeviceNet Fieldbus Coupler |
|---|---|
| Brand | WAGO |
| Model | 750-306 |
| Category | PLCs & I/O |
| Width | 50.5 mm / 1.988 inches |
| Communications | DeviceNet |
| Transmission rate | 500 kBd (125 kBd, 250 kBd, 500 kBd) |
| Number of I/O points | 6,000 |
| Supply voltage (field) | 24 VDC, SELV/PELV (-25 … +30 %) |
| Ambient temperature (operation) | 0 … +55 °C |
| Number of modules per node (max.) | 64 |
| Current carrying capacity (power jumper contacts) | 10 A |
