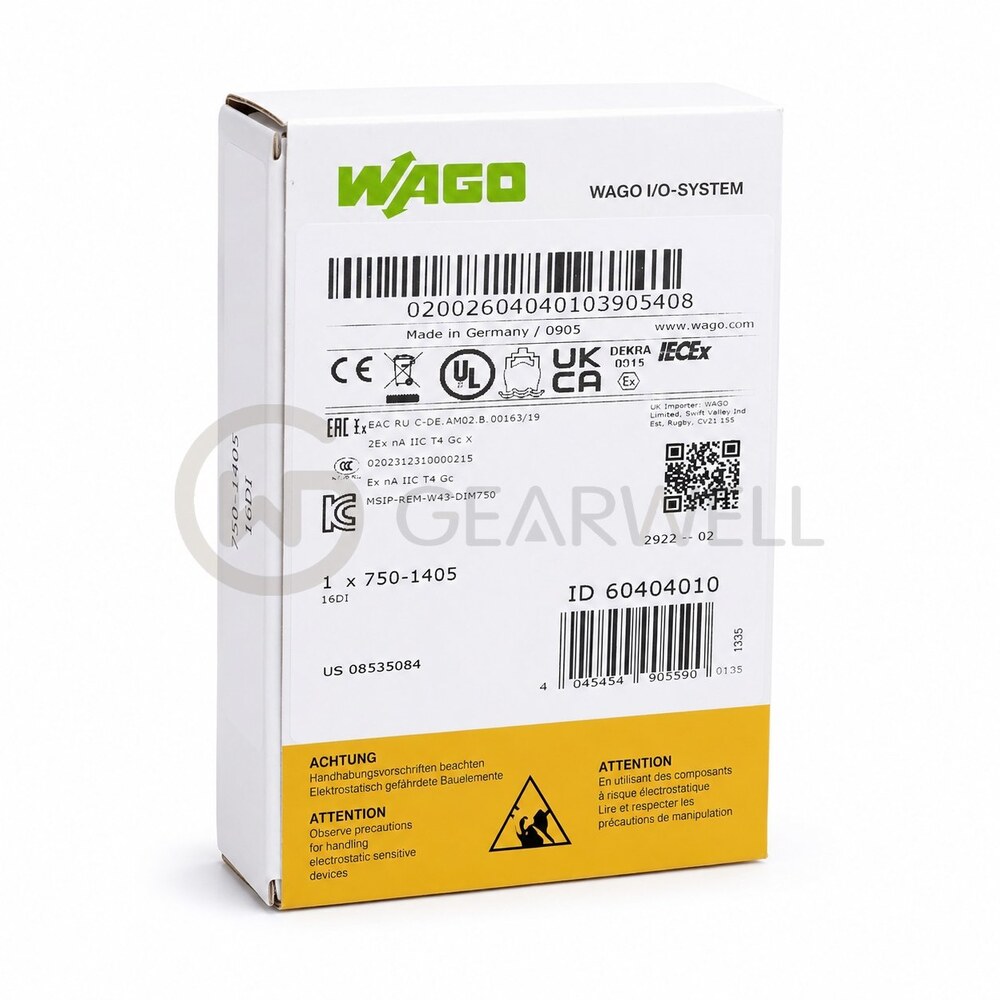

WAGO 750-1405 16-Channel Digital Input Module
- Brand
- WAGO
- Model
- 750-1405
- GEARWELL SKU
- GWP-000002333
- Category
- Industrial Automation Parts
Key specifications
- I/O system
- WAGO-I/O-SYSTEM 750/753
- Input filter time
- 3 ms
- Product type
- Digital input I/O module
- Input channels
- 16 digital inputs
- Signal voltage
- 24 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The WAGO 750-1405 is a 16-channel digital input module of the WAGO I/O System 750 for 24 VDC signals with a 3 ms input filter and high-side switching inputs. Signal (0) is −3 … +5 VDC, signal (1) is 15 … 30 VDC, and the typical input current for signal (1) is 2.3 mA per channel. Sensors connect as 16 x (1-wire) on the fixed 16-connector front, the field side takes 24 VDC via the power jumper contacts and the module draws 25 mA from the system supply. It has 500 V system/field isolation, works at 0 … +55 °C and measures (12 x 100 x 69) mm (W x H x D).
Technical reference
| Product name | WAGO 750-1405 16-Channel Digital Input Module |
|---|---|
| Brand | WAGO |
| Model | 750-1405 |
| Category | Industrial Automation Parts |
| I/O system | WAGO-I/O-SYSTEM 750/753 |
| Input filter time | 3 ms |
| Product type | Digital input I/O module |
| Input channels | 16 digital inputs |
| Signal voltage | 24 V DC |
| Identified model | 750-1405 |
