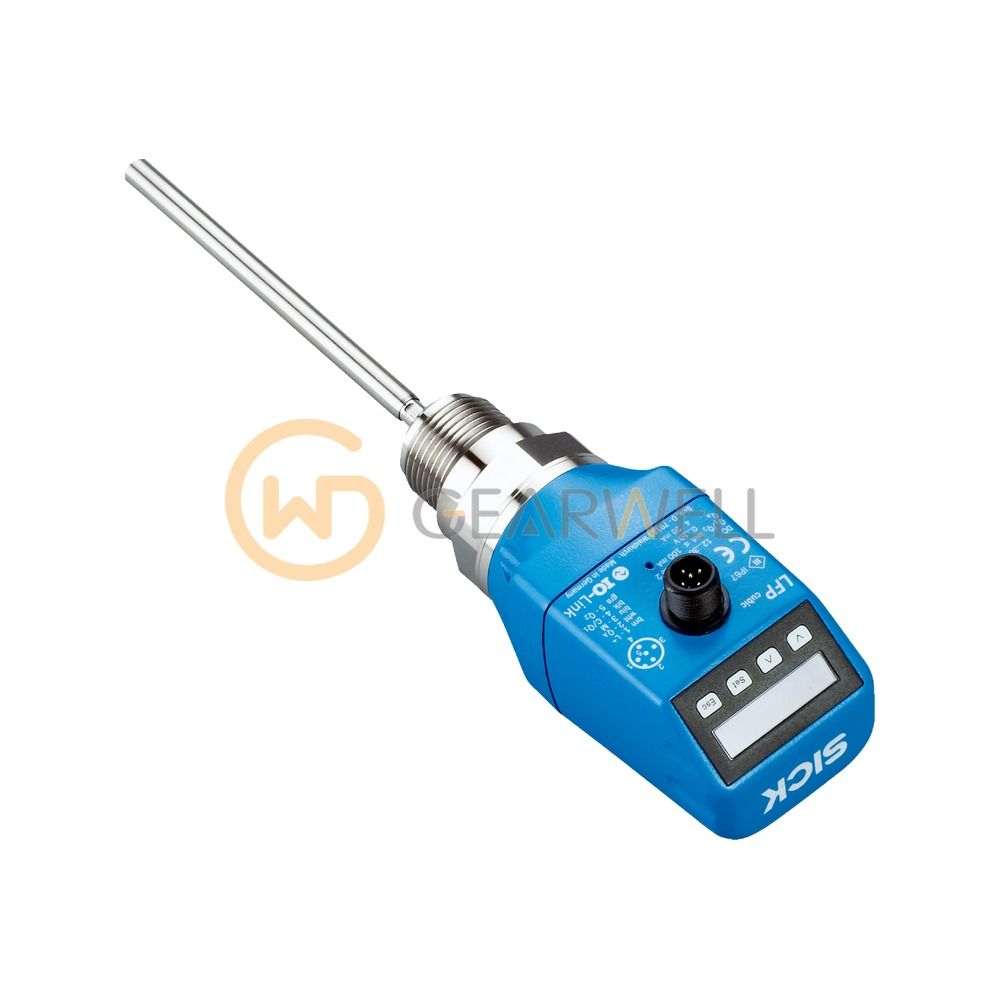

SICK 1077448 LFP0810-B4NMB LFP Cubic TDR Level Sensor
- Brand
- SICK
- Model
- 1077448
- GEARWELL SKU
- GWP-000013788
- Category
- Pressure, Flow & Temperature
Key specifications
- Probe
- Exchangeable probe 1.4404/316L
- Housing
- Plastic housing with display
- Probe length
- 810 mm
- Analog output
- 4 ... 20 mA / 0 ... 10 V, switchable
- Article number
- 1077448
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1077448 LFP0810-B4NMB LFP Cubic TDR Level Sensor |
|---|---|
| Brand | SICK |
| Model | 1077448 |
| Category | Pressure, Flow & Temperature |
| Probe | Exchangeable probe 1.4404/316L |
| Housing | Plastic housing with display |
| Probe length | 810 mm |
| Analog output | 4 ... 20 mA / 0 ... 10 V, switchable |
| Article number | 1077448 |
| Process rating | 100 °C, 10 bar |
| Connection type | Connector M12x1, 5-pin |
| Type designation | LFP0810-B4NMB |
| Switching outputs | Q1: PNP; Q2: PNP/NPN switchable |
| Process connection | 3/4" NPT |
