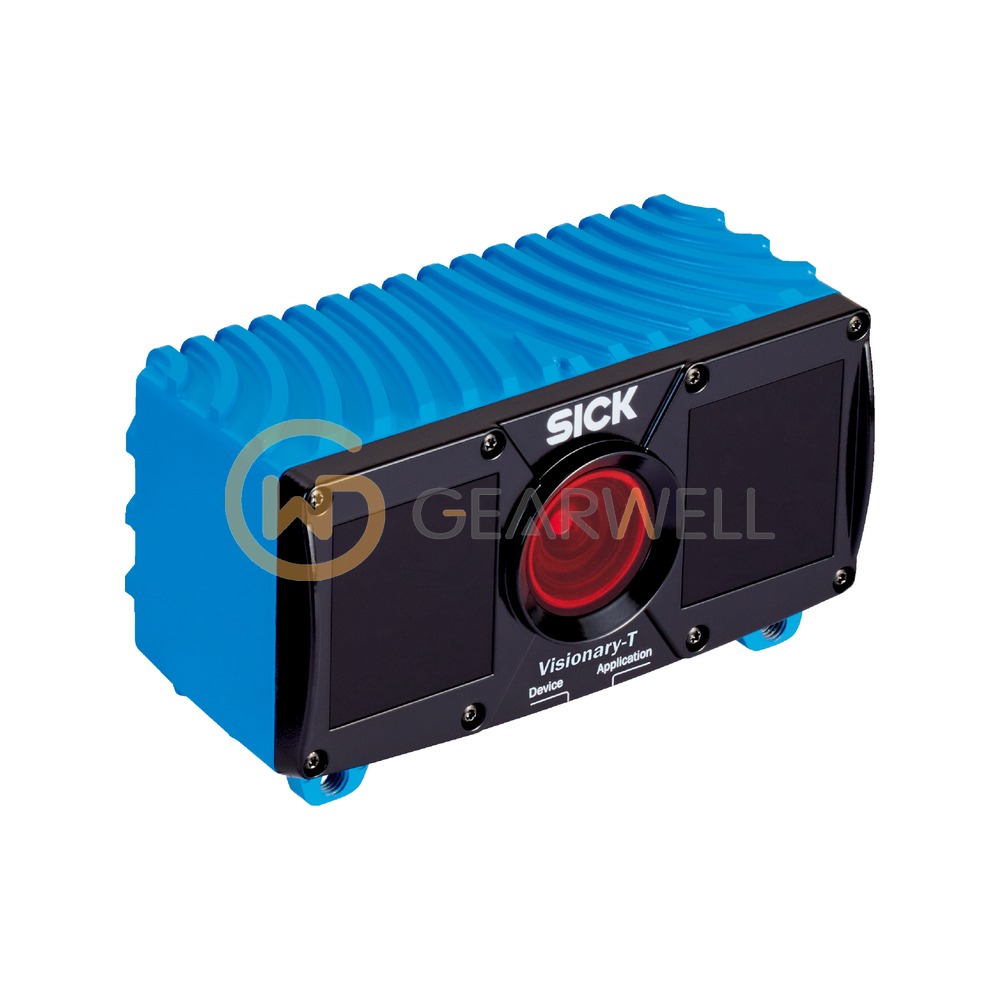

SICK 1075614 V3S110-1AABAAB Visionary-T AG 3D ToF Camera
- Brand
- SICK
- Model
- 1075614
- GEARWELL SKU
- GWP-000013785
- Category
- Machine Safety & Vision
Key specifications
- Technology
- 3D snapshot time-of-flight
- Pixel count
- 176 x 144 px
- Illumination
- Infrared LED, 850 nm
- Article number
- 1075614
- Supply voltage
- 24 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1075614 V3S110-1AABAAB Visionary-T AG 3D ToF Camera |
|---|---|
| Brand | SICK |
| Model | 1075614 |
| Category | Machine Safety & Vision |
| Technology | 3D snapshot time-of-flight |
| Pixel count | 176 x 144 px |
| Illumination | Infrared LED, 850 nm |
| Article number | 1075614 |
| Supply voltage | 24 V DC |
| Connection type | M12 8-pin Gigabit Ethernet, M12 17-pin supply/data |
| Detection angle | 69° x 56° |
| Enclosure rating | IP67 |
| Type designation | V3S110-1AABAAB |
| Working distance | 0.5 ... 7.2 m |
| Dimensions (L x W x H) | 162 x 93 x 78 mm |
