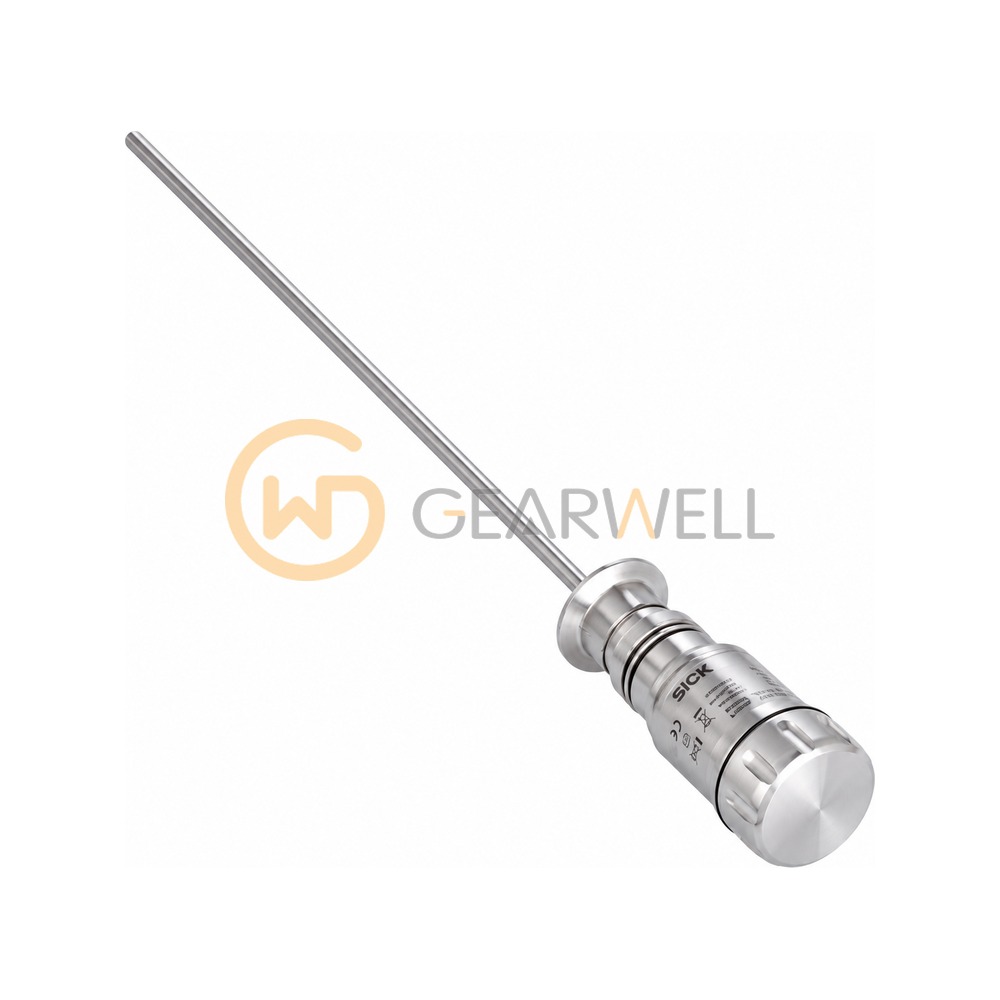

SICK 1079231 LFP0420-G1NMB LFP Inox TDR Level Sensor
- Brand
- SICK
- Model
- 1079231
- GEARWELL SKU
- GWP-000015180
- Category
- Pressure, Flow & Temperature
Key specifications
- Probe
- Hygienic probe 1.4404/316L, adaption for hygienic process connection
- Housing
- Stainless steel housing with display, cover with window
- Probe length
- 420 mm
- Analog output
- 4 ... 20 mA / 0 ... 10 V, switchable
- Article number
- 1079231
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1079231 LFP0420-G1NMB LFP Inox TDR Level Sensor |
|---|---|
| Brand | SICK |
| Model | 1079231 |
| Category | Pressure, Flow & Temperature |
| Probe | Hygienic probe 1.4404/316L, adaption for hygienic process connection |
| Housing | Stainless steel housing with display, cover with window |
| Probe length | 420 mm |
| Analog output | 4 ... 20 mA / 0 ... 10 V, switchable |
| Article number | 1079231 |
| Process rating | 150 °C, 16 bar |
| Connection type | Connector M12x1, 5-pin |
| Type designation | LFP0420-G1NMB |
| Switching outputs | Q1: PNP; Q2: PNP/NPN switchable |
| Process connection | G 3/4 A |
