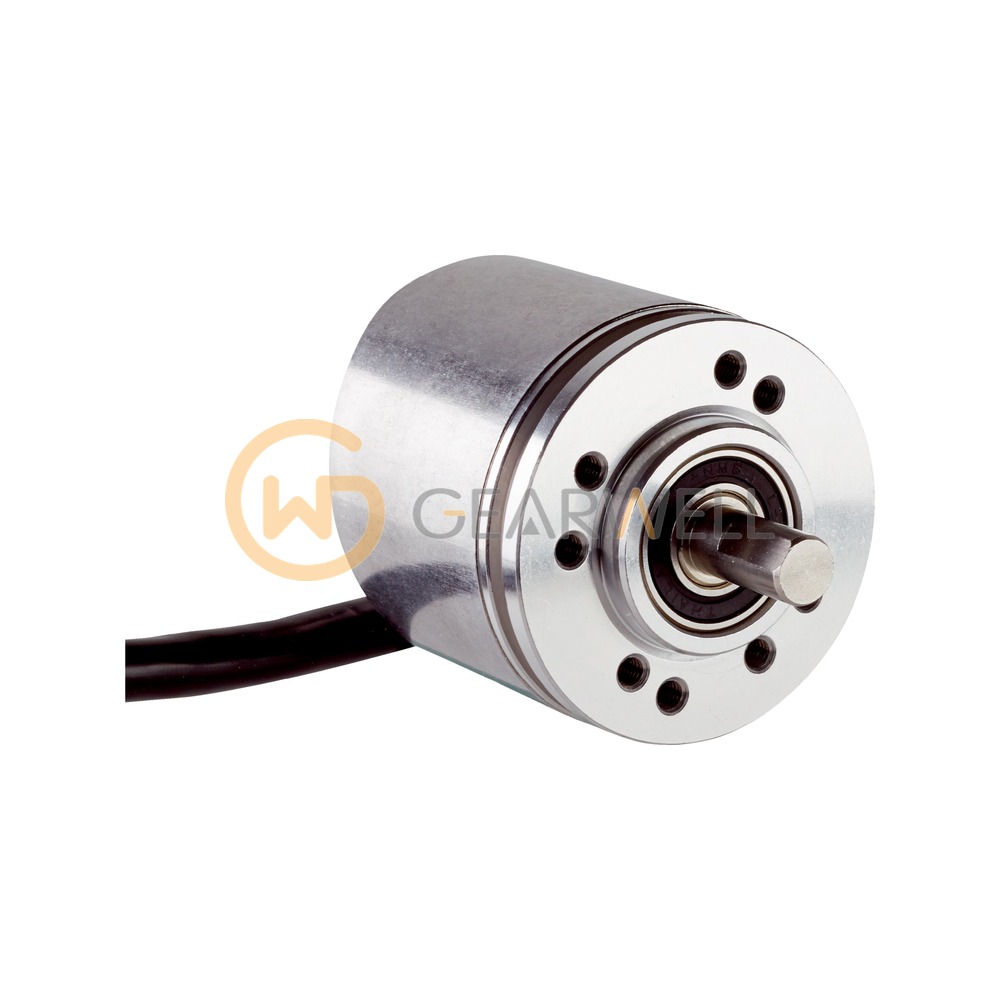

SICK 1075929 DBS36E-S3RK01000 DBS36 Incremental Encoder
- Brand
- SICK
- Model
- 1075929
- GEARWELL SKU
- GWP-000013786
- Category
- Encoders & Position
Key specifications
- Article number
- 1075929
- Shaft diameter
- 6 (with flat), length 12 mm
- Supply voltage
- 7 ... 30 V
- Connection type
- Cable, 5-wire, universal, 1.5 m
- Operating speed
- 6,000 min⁻¹
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1075929 DBS36E-S3RK01000 DBS36 Incremental Encoder |
|---|---|
| Brand | SICK |
| Model | 1075929 |
| Category | Encoders & Position |
| Article number | 1075929 |
| Shaft diameter | 6 (with flat), length 12 mm |
| Supply voltage | 7 ... 30 V |
| Connection type | Cable, 5-wire, universal, 1.5 m |
| Operating speed | 6,000 min⁻¹ |
| Enclosure rating | IP65 |
| Output frequency | ≤ 300 kHz |
| Type designation | DBS36E-S3RK01000 |
| Mechanical design | Solid shaft, face mount flange |
| Pulses per revolution | 1,000 |
| Communication interface | Incremental, open collector |
