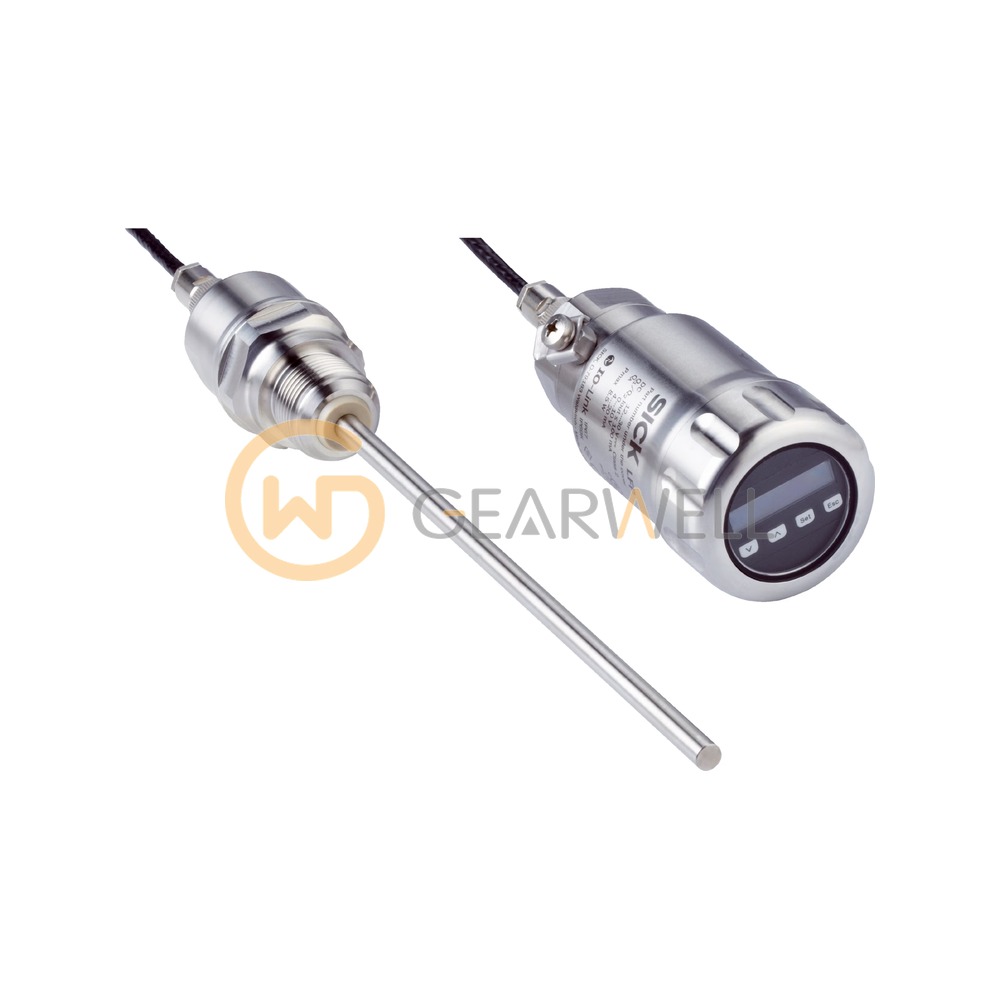

SICK 1076327 LFP1850-G1BMB LFP Inox TDR Level Sensor
- Brand
- SICK
- Model
- 1076327
- GEARWELL SKU
- GWP-000013787
- Category
- Pressure, Flow & Temperature
Key specifications
- Probe
- Hygienic probe 1.4404/316L, adaption for hygienic process connection
- Housing
- Stainless steel housing with display, cover with window
- Amplifier
- Remote amplifier, cable length 1 m, IP69K
- Probe length
- 1850 mm
- Analog output
- 4 ... 20 mA / 0 ... 10 V, switchable
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1076327 LFP1850-G1BMB LFP Inox TDR Level Sensor |
|---|---|
| Brand | SICK |
| Model | 1076327 |
| Category | Pressure, Flow & Temperature |
| Probe | Hygienic probe 1.4404/316L, adaption for hygienic process connection |
| Housing | Stainless steel housing with display, cover with window |
| Amplifier | Remote amplifier, cable length 1 m, IP69K |
| Probe length | 1850 mm |
| Analog output | 4 ... 20 mA / 0 ... 10 V, switchable |
| Article number | 1076327 |
| Process rating | 150 °C, 16 bar |
| Connection type | Connector M12x1, 5-pin |
| Type designation | LFP1850-G1BMB |
| Switching outputs | Q1: PNP; Q2: PNP/NPN switchable |
| Process connection | G 3/4 A |
