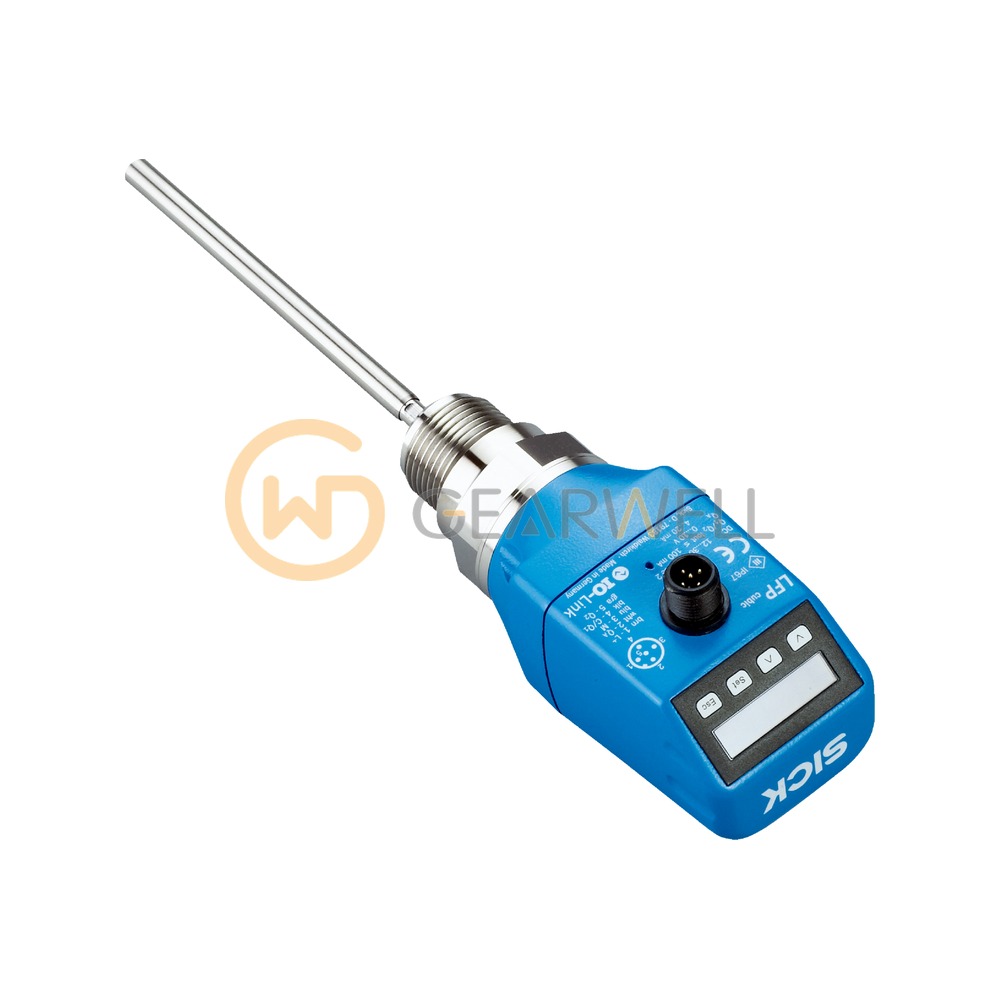

SICK 1064712 LFP0650-A4NMB LFP Cubic TDR Level Sensor
- Brand
- SICK
- Model
- 1064712
- GEARWELL SKU
- GWP-000013775
- Category
- Pressure, Flow & Temperature
Key specifications
- Probe
- Exchangeable rod probe, 1.4404/316L
- Housing
- Plastic with display
- Connection
- M12 x 1, 5-pin
- Probe length
- 650 mm
- Analog output
- 4-20 mA / 0-10 V switchable
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1064712 LFP0650-A4NMB LFP Cubic TDR Level Sensor |
|---|---|
| Brand | SICK |
| Model | 1064712 |
| Category | Pressure, Flow & Temperature |
| Probe | Exchangeable rod probe, 1.4404/316L |
| Housing | Plastic with display |
| Connection | M12 x 1, 5-pin |
| Probe length | 650 mm |
| Analog output | 4-20 mA / 0-10 V switchable |
| Article number | 1064712 |
| Process rating | 100 °C / 10 bar |
| Type designation | LFP0650-A4NMB |
| Switching outputs | Q1 PNP; Q2 PNP/NPN switchable |
| Process connection | G 3/4 A |
