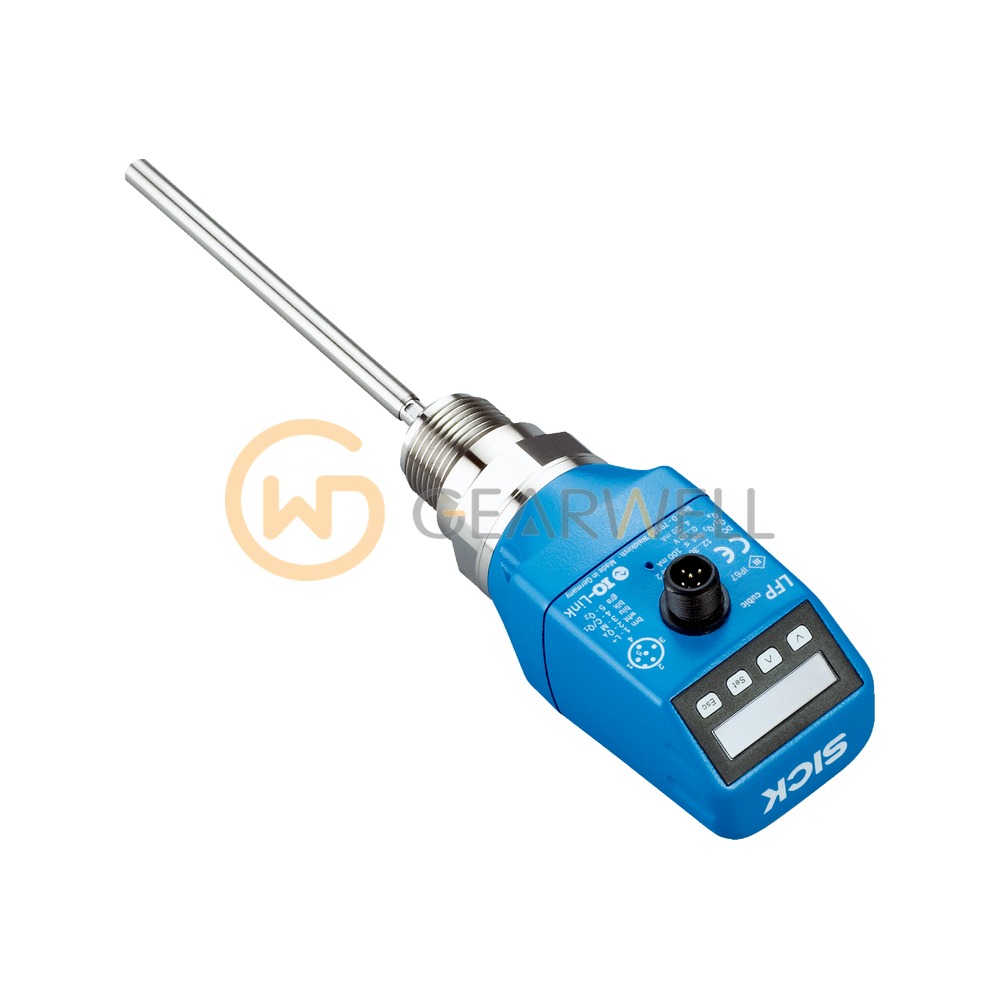

SICK 1066933 LFP0600-A4NMBF02 LFP Cubic TDR Level Sensor
- Brand
- SICK
- Model
- 1066933
- GEARWELL SKU
- GWP-000013776
- Category
- Pressure, Flow & Temperature
Key specifications
- Base type
- LFP0600-A4NMB (part no. 1057077)
- Probe type
- Rod probe
- Probe length
- 600 mm
- Output signal
- 1 x PNP + 1 x PNP/NPN + 4-20 mA / 0-10 V
- Article number
- 1066933 (as collected; not publicly listed on sick.com)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1066933 LFP0600-A4NMBF02 LFP Cubic TDR Level Sensor |
|---|---|
| Brand | SICK |
| Model | 1066933 |
| Category | Pressure, Flow & Temperature |
| Base type | LFP0600-A4NMB (part no. 1057077) |
| Probe type | Rod probe |
| Probe length | 600 mm |
| Output signal | 1 x PNP + 1 x PNP/NPN + 4-20 mA / 0-10 V |
| Article number | 1066933 (as collected; not publicly listed on sick.com) |
| Code suffix "F02" | as collected; SICK special/customer version - the article number is not publicly listed on sick.com, base type confirmed |
| Process pressure | -1 ... 10 bar |
| Type designation | LFP0600-A4NMBF02 |
| Process connection | G 3/4 A |
| Process temperature | -20 ... +100 °C |
