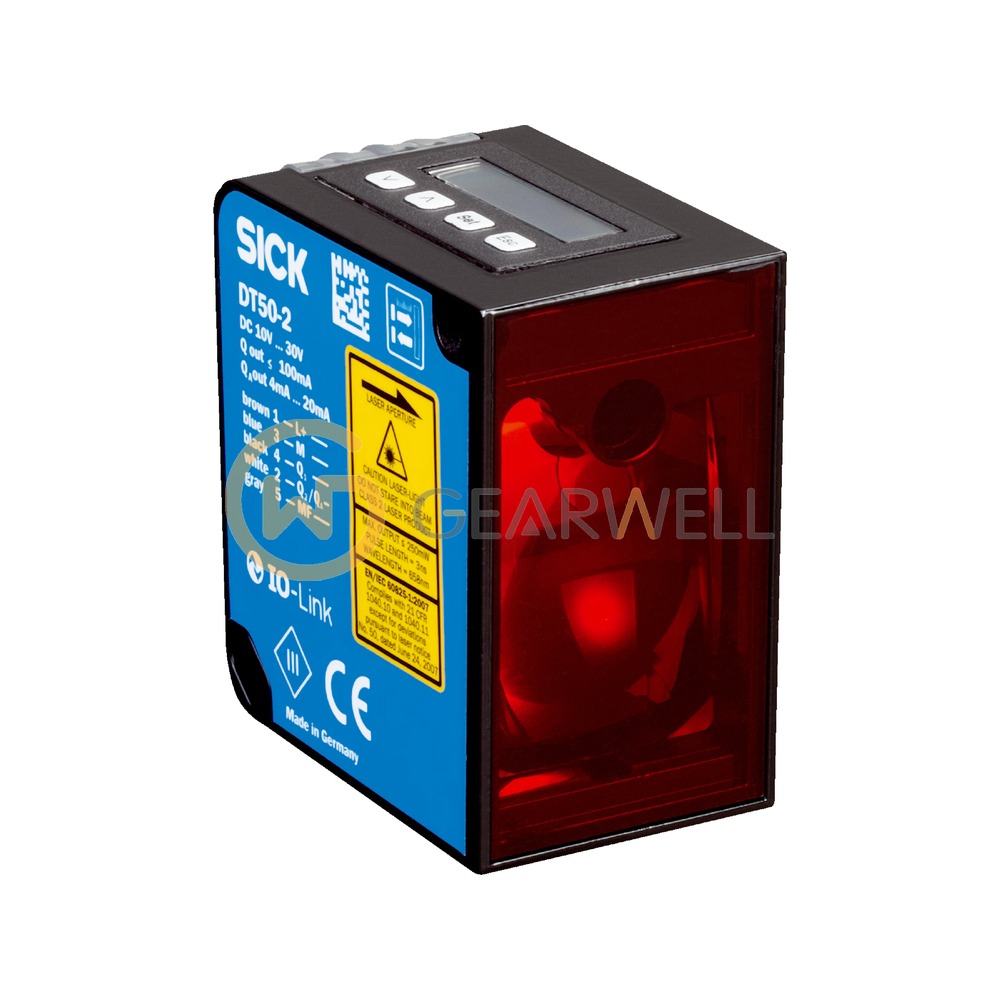

SICK 1065661 DT50-2B215252 Laser Distance Sensor
- Brand
- SICK
- Model
- 1065661
- GEARWELL SKU
- GWP-000009616
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Type code
- DT50-2B215252
- Laser class
- 2
- Light source
- Laser, red
- Digital output
- 1 ... 2 x push-pull: PNP/NPN
- Measuring range
- 200 mm ... 30,000 mm, 90% remission factor, 200 mm ... 17,000 mm, 18% remission factor, 200 mm ... 10,000 mm, 6% remission factor
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1065661 DT50-2B215252 Laser Distance Sensor |
|---|---|
| Brand | SICK |
| Model | 1065661 |
| Category | Proximity & Photoelectric Sensors |
| Type code | DT50-2B215252 |
| Laser class | 2 |
| Light source | Laser, red |
| Digital output | 1 ... 2 x push-pull: PNP/NPN |
| Measuring range | 200 mm ... 30,000 mm, 90% remission factor, 200 mm ... 17,000 mm, 18% remission factor, 200 mm ... 10,000 mm, 6% remission factor |
| Minimum response time | 0.83 ms |
| Type of analog output | Current output / voltage output |
| Multifunctional input (MF) | 1 x |
